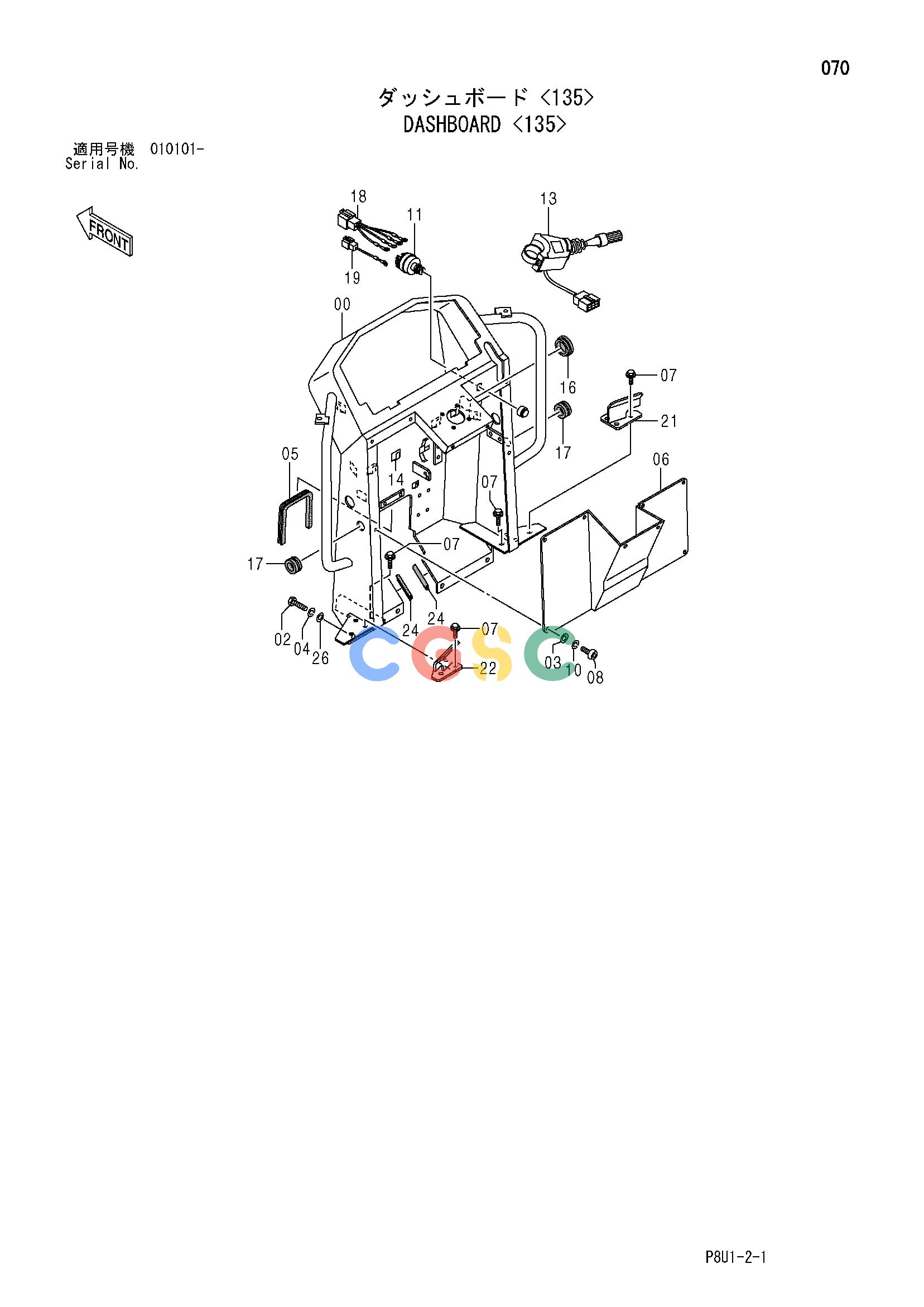

日立零件查询（CC135C）DASHBOARD <135> Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
909 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 425967 | [1] | DASHBOARD | |
| 02. | 500027 | [4] | BOLT | |
| 03. | 947324 | [8] | WASHER;PLANE | |
| 04. | 947887 | [4] | WASHER;SPRING | |
| 05. | 425680 | [1] | SEAL RUBBER | |
| 06. | 425756 | [1] | COVER | |
| 07. | 500030 | [8] | BOLT;SEMS | |
| 08. | 426049 | [8] | BOLT | |
| 10. | 606020 | [8] | WASHER;SPRING | |
| 11. | 438570 | [1] | SWITCH;START | |
| 13. | 425224 | [1] | SWITCH | |
| 14. | 438584 | [10] | CLAMP | |
| 16. | 424987 | [1] | BUSHING;RUBBER | |
| 17. | 425061 | [2] | BUSHING;RUBBER | |
| 18. | 425660 | [1] | HARNESS;WIRE | |
| 19. | 425661 | [1] | HARNESS;WIRE | |
| 21. | 425945 | [1] | REST;FOOT | |
| 22. | 425946 | [1] | REST;FOOT | |
| 24. | 425634 | [2] | SEAL RUBBER | |
| 26. | 446281 | [4] | WASHER | |
