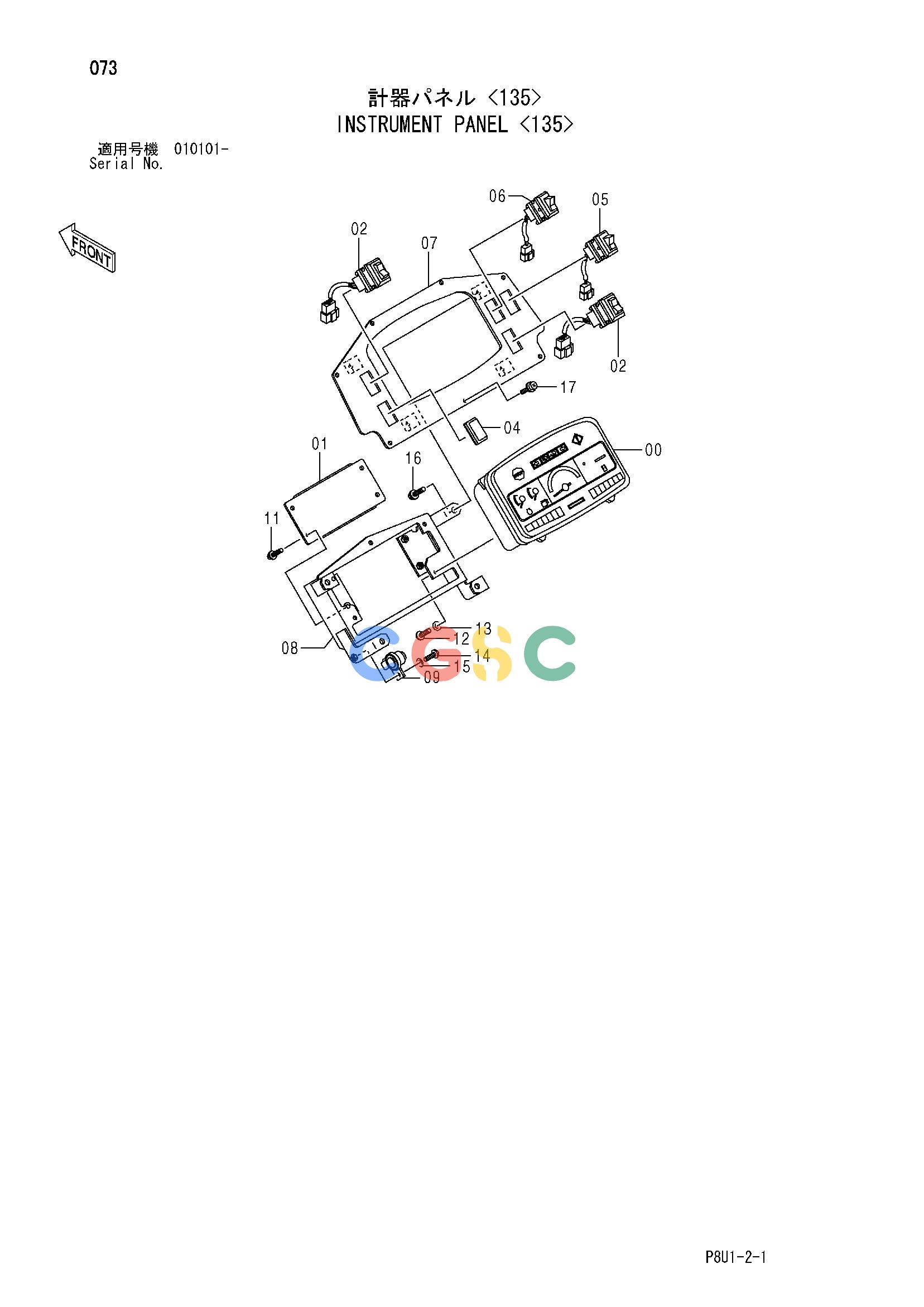

日立零件查询（CC135C）INSTRUMENT PANEL <135> Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
773 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 425611 | [1] | PANEL;GAUGE | |
| 01. | 425610 | [1] | CONTROLLER | |
| 02. | 425663 | [2] | SWITCH;TUMBLER | |
| 04. | 424143 | [1] | BUSHING;RUBBER | |
| 05. | 425235 | [1] | SWITCH | |
| 06. | 425003 | [1] | SWITCH;TUMBLER | |
| 07. | 425773 | [1] | PANEL | |
| 08. | 425750 | [1] | BRACKET | |
| 09. | 425636 | [1] | BUZZER | |
| 11. | 947621 | [4] | BOLT;SEMS | |
| 12. | 425077 | [5] | SCREW | |
| 13. | 947322 | [5] | WASHER;PLANE | |
| 14. | 439857 | [1] | SCREW | |
| 15. | 438155 | [1] | WASHER;PLANE | |
| 16. | 947619 | [4] | BOLT;SEMS | |
| 17. | 439859 | [7] | SCREW;SEMS | |
