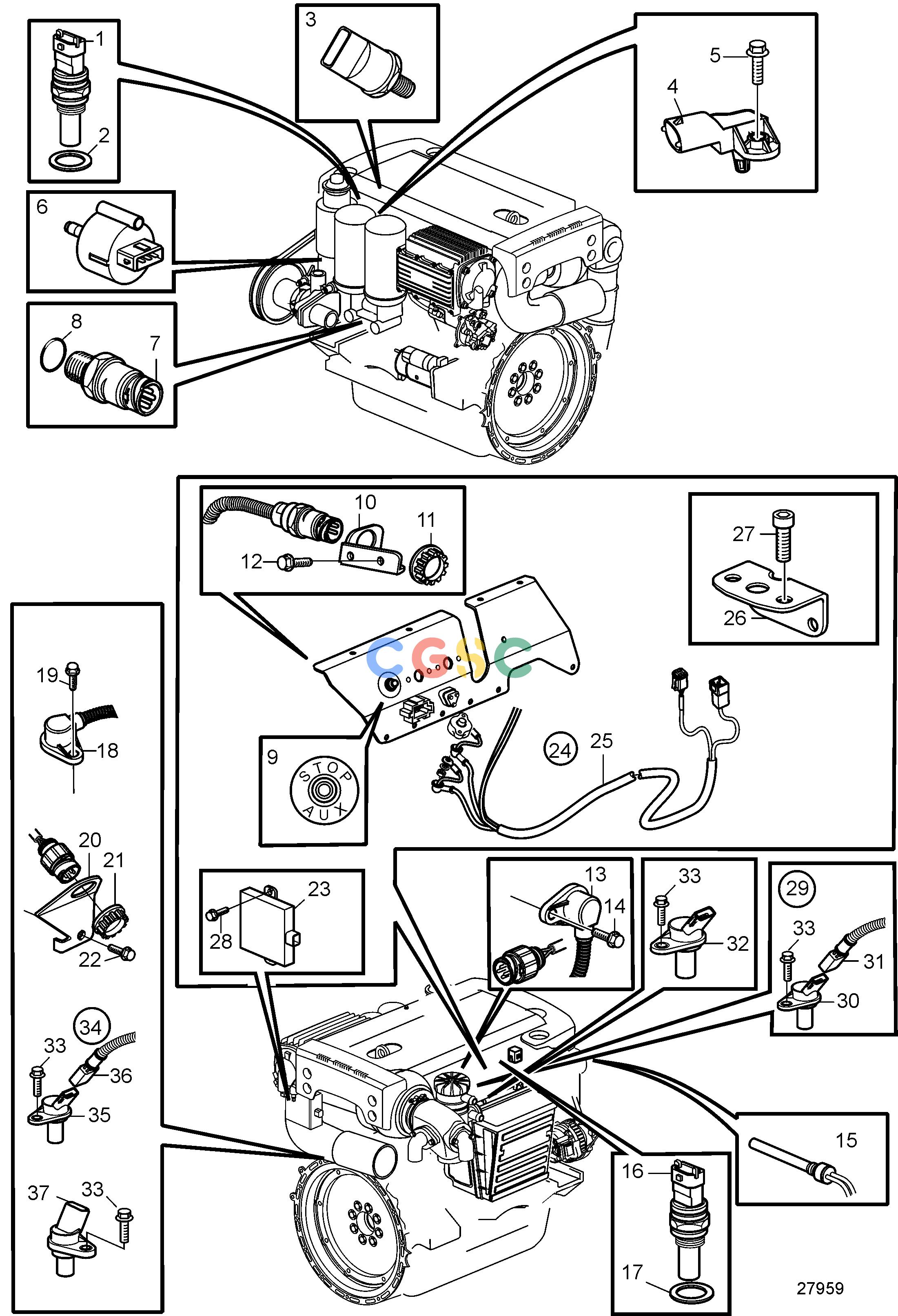

沃尔沃零件查询D4-180I-B; D4-180I-C; D4-180I-D; D4-180I-E; D4-210A-A; D4-225A-B; D4-210I-A; D4-210I-B; D4-225I-B; D4-225A-C; D4-225A-D; D4-225I-C; D4-225I-Electrical SystemContacts and SensorsEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
582 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
1624368
|
[1] |
Sensor, fuel
|
|
| 2. |
11996
|
[1] |
Gasket
|
|
| 3. |
3587927
|
[1] |
Pressure sensor
|
Rail
|
| 4. |
21385453
|
[1] |
Pressure sensor, charge pressure/temperature
|
|
| 5. |
984725
|
[1] |
Flange screw
|
|
| 6. |
3808616
|
[1] |
Sensor
|
Installation instruction included.
|
| 7. |
20886108
|
[1] |
Pressure sensor, fuel/oil pressure
|
Replaced by 20898038
|
| 7. |
20898038
|
[1] |
Pressure sensor, fuel/oil pressure
|
Replaced by 21302639
|
| 7. |
21302639
|
[1] |
Pressure sensor, fuel/oil pressure
|
|
| 8. |
968559
|
[1] |
O-ring
|
|
| 9. |
828584
|
[1] |
Toggle switch
|
|
| 10. |
3583480
|
[1] |
Bracket
|
SN-2004017198
|
| 11. |
3963413
|
[1] |
Ring
|
SN-2004017198
|
| 12. |
968476
|
[2] |
Flange screw
|
SN-2004017198
|
| 13. |
3944124
|
[1] |
Sensor, camshaft/flywheel
|
SN-2004017198
|
| 14. |
963684
|
[1] |
Hex. socket screw
|
SN-2004017198
|
| 15. |
3547710
|
[1] |
Level guard
|
|
| 16. |
1624368
|
[1] |
Sensor
|
|
| 17. |
11996
|
[1] |
Gasket
|
|
| 18. |
3944124
|
[1] |
Sensor, camshaft/flywheel
|
SN-2004017198
|
| 19. |
963684
|
[1] |
Hex. socket screw
|
SN-2004017198
|
| 20. |
3584044
|
[1] |
Bracket
|
SN-2004017198
|
| 21. |
3963413
|
[1] |
Ring
|
SN-2004017198
|
| 22. |
946934
|
[1] |
Flange screw
|
SN-2004017198
|
| 23. |
21515318
|
[1] |
Voltage converter
|
Replaced by 21959663
|
| 23. |
21959663
|
[1] |
Voltage converter
|
|
| 24. |
21506656
|
[1] |
Cable kit
|
For DC/DC unit 12V, When replacing the cable kit must also the DC/DC converter be exchanged.
|
| 25. |
|
|
|
Including in wire kit 21506656
|
| 26. |
21497240
|
[1] |
Support
|
|
| 27. |
3853620
|
[2] |
Hexagon screw
|
|
| 28. |
946501
|
[3] |
Flange screw
|
|
| 29. |
21138559
|
[1] |
Sensor kit
|
For valve cover with SN2004017199- mounted on engine with SN-2004017198
|
| 30. |
20513343
|
[1] |
Sensor
|
|
| 31. |
21138239
|
[1] |
Wiring harness
|
|
| 32. |
20513343
|
[1] |
Sensor
|
SN2004017199-
|
| 33. |
946544
|
[2] |
Flange screw
|
|
| 34. |
21109100
|
[1] |
Sensor kit
|
For flywheel housing with SN2004017199- mounted on engine with SN-2004017198
|
| 35. |
20513343
|
[1] |
Sensor
|
|
| 36. |
21138237
|
[1] |
Wiring harness
|
|
| 37. |
20513343
|
[1] |
Sensor
|
SN2004017199-
|
