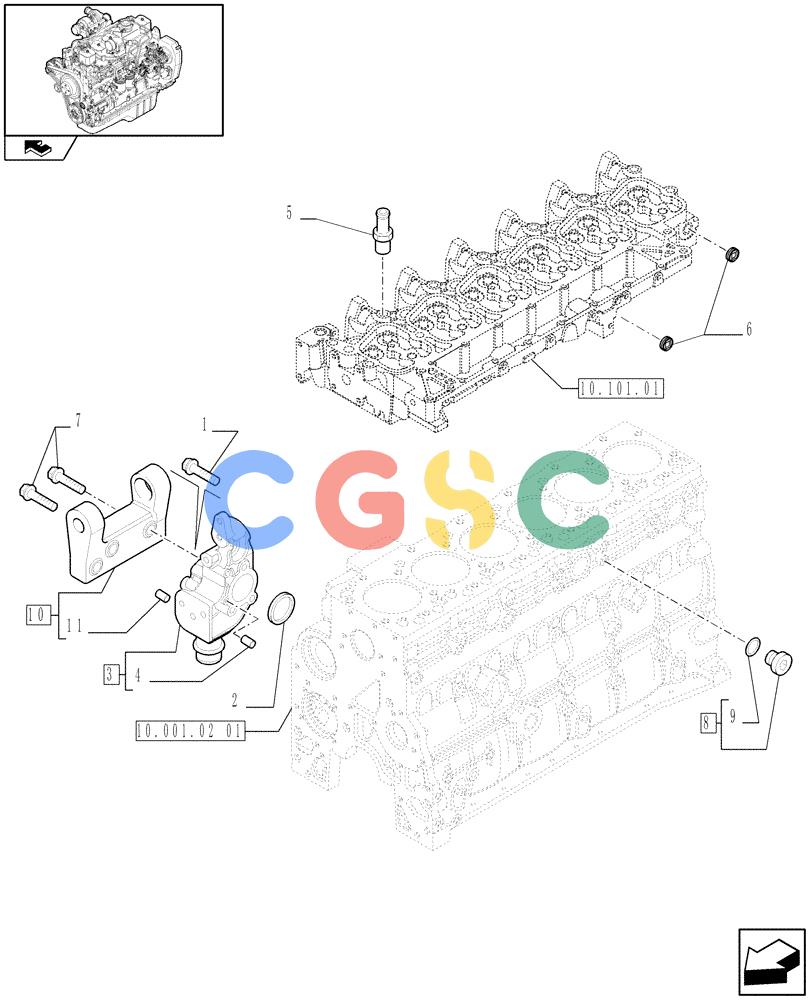

神钢零件查询(F4GE9684R J603) - ENGINE - 504369116 - 84190728 (1/08-12/12) (10.402.01[02]) - PIPING - ENGINE COOLING SYSTEM (2855619 - 2852149 - 2853760 - 2856050) Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
838 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2852286 | [2] | BOLT,Flng, M10 x 1.5 x 130mm | TORM10 x 130 Superseded by part number: 16599125 |
| 1. | 2854424 | [1] | SCREW,Hex, Flg Hd, M10 x 1.5 x 70mm | TORM10 x 70 Superseded by part number: 16676834 |
| 2. | 2854072 | [1] | SEALING RING,Square, 5.16mm Thk x 50.17mm ID | TOR Superseded by part number: 504062710 |
| 4. | 4895576 | [2] | DOWEL | TOR |
| 5. | 2853761 | [1] | NIPPLE | TOR Superseded by part number: 504043984 |
| 6. | 4895078 | [2] | PIPE PLUG,1/2"-14 | TOR |
| 7. | 2852295 | [3] | SCREW,Hex, M8 x 1.25 x 40mm | TORM8 x 1,25 x 40 Superseded by part number: 16586725 |
| 8. | 4895623 | [1] | HEX SOCKET PLUG,M16 x 1.5 | TORASSY |
| 9. | 4895625 | [1] | O-RING,13.3mm ID x 2.2mm Width | TOR Superseded by part number: 17281681 |
