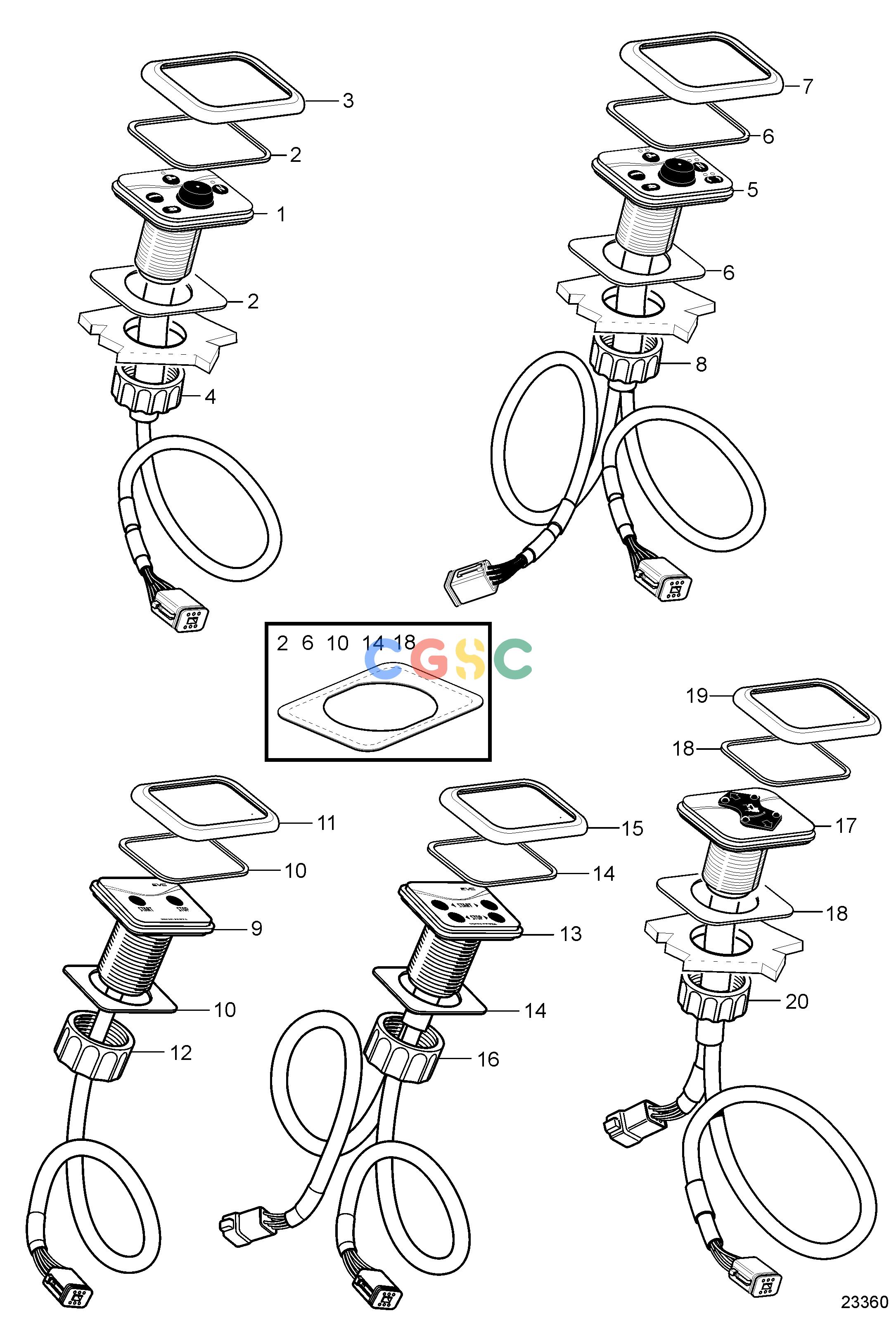

沃尔沃零件查询D4-180I-B; D4-180I-C; D4-180I-D; D4-180I-E; D4-210A-A; D4-225A-B; D4-210I-A; D4-210I-B; D4-225I-B; D4-225A-C; D4-225A-D; D4-225I-C; D4-225I-Electrical SystemControl Panel, EVC-CEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
707 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21310162
|
[1] |
Control panel
|
Single installation
|
| 2. |
3808135
|
[1] |
Gasket
|
Also for flushmounting.
|
| 3. |
3808131
|
[1] |
Frame
|
|
| 4. |
3808134
|
[1] |
Nut
|
|
| 5. |
21310164
|
[1] |
Control panel
|
Twin Installation
|
| 6. |
3808135
|
[1] |
Gasket
|
Also for flushmounting.
|
| 7. |
3808131
|
[1] |
Frame
|
|
| 8. |
3808134
|
[1] |
Nut
|
|
| 9. |
40005641
|
[1] |
Control panel
|
Single installation, Dual station
|
| 10. |
3808135
|
[1] |
Gasket
|
Also for flushmounting.
|
| 11. |
3808131
|
[1] |
Frame
|
|
| 12. |
3808134
|
[1] |
Nut
|
|
| 13. |
40005642
|
[1] |
Control panel
|
Twin Installation, Dual station
|
| 14. |
3808135
|
[1] |
Gasket
|
Also for flushmounting.
|
| 15. |
3808131
|
[1] |
Frame
|
|
| 16. |
3808134
|
[1] |
Nut
|
|
| 17. |
40005634
|
[1] |
Control panel
|
Power trim
|
| 18. |
3808135
|
[1] |
Gasket
|
Also for flushmounting.
|
| 19. |
3808131
|
[1] |
Frame
|
|
| 20. |
3808134
|
[1] |
Nut
|
|
