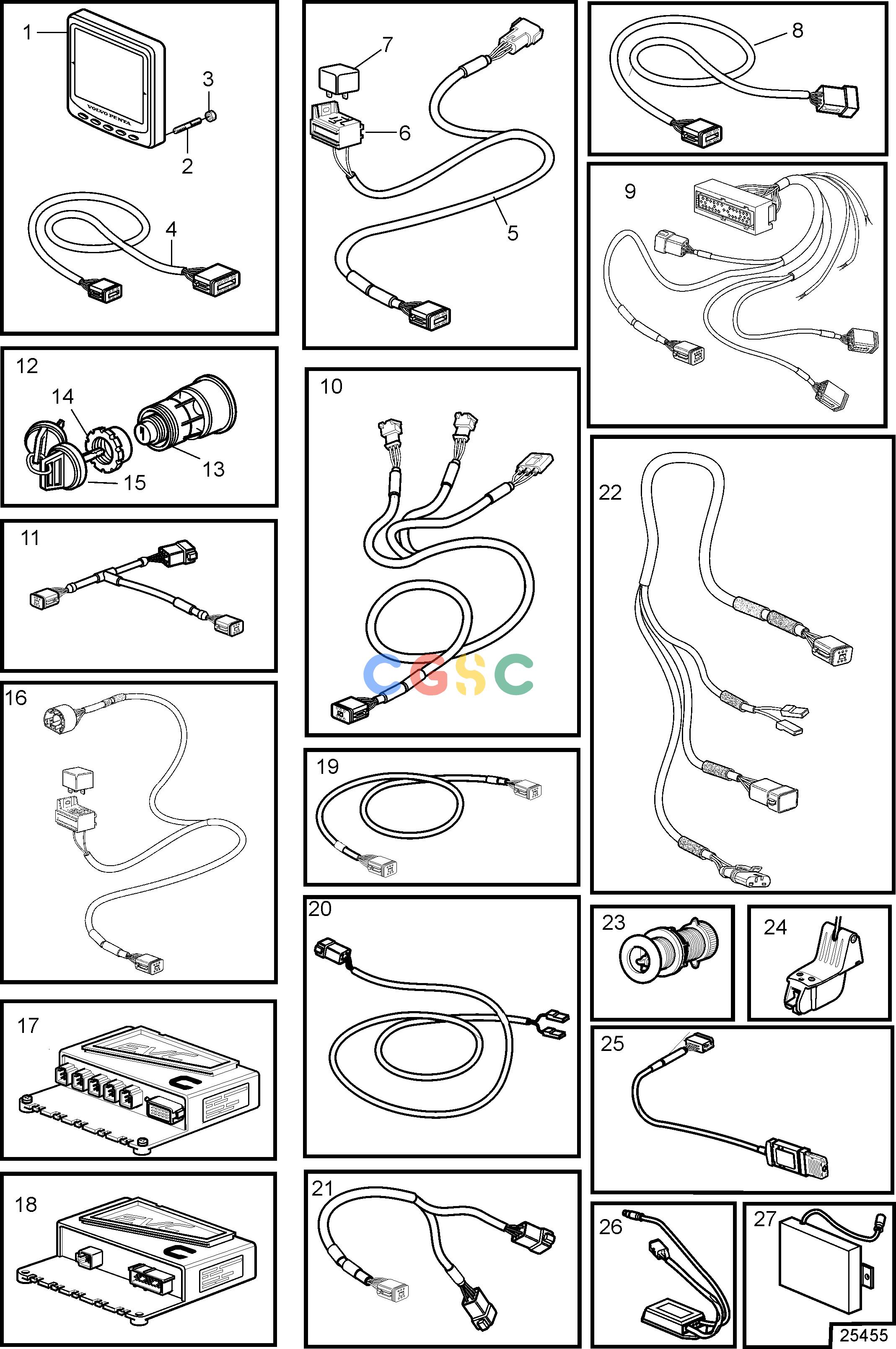

| 1. |
3884818
|
[1] |
Display
|
Replaced by 3849972
|
| 1. |
3849972
|
[1] |
Display
|
Replaced by 3595108
|
| 1. |
3595108
|
[1] |
Display
|
Replaced by 21173162
|
| 1. |
21173162
|
[1] |
Display
|
|
| 2. |
830928
|
[4] |
Stud
|
|
| 3. |
830930
|
[4] |
Wing nut
|
|
| 4. |
3588207
|
[1] |
Cable kit
|
|
| 5. |
881786
|
[1] |
Cable kit
|
|
| 6. |
977184
|
[1] |
Housing
|
|
| 7. |
873765
|
[1] |
Relay
|
12V
|
| 7. |
3171420
|
[1] |
Relay
|
24V
|
| 8. |
3842733
|
[1] |
Extension cable
|
L=3.0m
|
| 8. |
3842734
|
[1] |
Extension cable
|
L=5.0m
|
| 8. |
3842735
|
[1] |
Extension cable
|
L=7,0m
|
| 8. |
3842736
|
[1] |
Extension cable
|
L=9.0m
|
| 8. |
3842737
|
[1] |
Extension cable
|
L=11,0m
|
| 8. |
874789
|
[1] |
Cable kit
|
PCU-HCU, 6 pole., L=5.0m
|
| 8. |
889550
|
[1] |
Cable
|
PCU-HCU, 6 pole., L=7,0m
|
| 8. |
889551
|
[1] |
Cable
|
PCU-HCU, 6 pole., L=9.0m
|
| 8. |
889552
|
[1] |
Cable
|
PCU-HCU, 6 pole., L=11,0m
|
| 8. |
888013
|
[1] |
Cable
|
PCU-HCU, 6 pole., L=13,0m
|
| 9. |
21122603
|
[1] |
Cable
|
Engine-PCU cable., L=3.0m
|
| 9. |
21122605
|
[1] |
Cable
|
Engine-PCU cable., L=5.0m
|
| 10. |
874676
|
[1] |
Cable kit
|
EVC control lever cable, 6-pole., L=1,5m
|
| 11. |
3588972
|
[1] |
Cable kit
|
T-connector bus cable, 6-pole., L=0,5m
|
| 12. |
3587070
|
[1] |
Starter switch, Set
|
Kit with 2 key switch with identical key.
|
| 13. |
3587071
|
[1] |
Starter switch
|
|
| 14. |
859955
|
[1] |
Plastic nut
|
|
| 15. |
859953
|
[1] |
Key
|
State key code when ordering
|
| 16. |
888004
|
[1] |
Cable, starter switch
|
|
| 17. |
3884481
|
[1] |
Control unit, not programmed
|
HCU. Software ordered separately or downloaded with Vodia.
|
| 17. |
3586261
|
[1] |
Software
|
Warehouse programming. This p/n can not be ordered, but will be used for invoicing.
|
| 17. |
3586259
|
[1] |
Software
|
Vodia-programming. This p/n can not be ordered, but will be used for invoicing.
|
| 18. |
3884480
|
[1] |
Control unit, not programmed
|
PCU. Software ordered separately or downloaded with Vodia.
|
| 18. |
3586267
|
[1] |
Software
|
Warehouse programming. This p/n can not be ordered, but will be used for invoicing.
|
| 18. |
3586266
|
[1] |
Software
|
Vodia-programming. This p/n can not be ordered, but will be used for invoicing.
|
| 19. |
3886666
|
[1] |
Cable, multilink
|
L=1,5m
|
| 20. |
874807
|
[1] |
Cable kit, fuel, water, rudder
|
|
| 21. |
3588206
|
[1] |
Cable kit, y-split
|
Multilink
|
| 22. |
3808852
|
[1] |
Cable kit, instruments, panels
|
|
| 23. |
3587054
|
[1] |
Sensor
|
Through hull
|
| 24. |
3587055
|
[1] |
Sensor
|
Mounted on transom
|
| 25. |
21509941
|
[1] |
Control unit
|
|
| 26. |
3889760
|
[1] |
Auto pilot
|
|
| 27. |
3889758
|
[1] |
Converter
|
|
