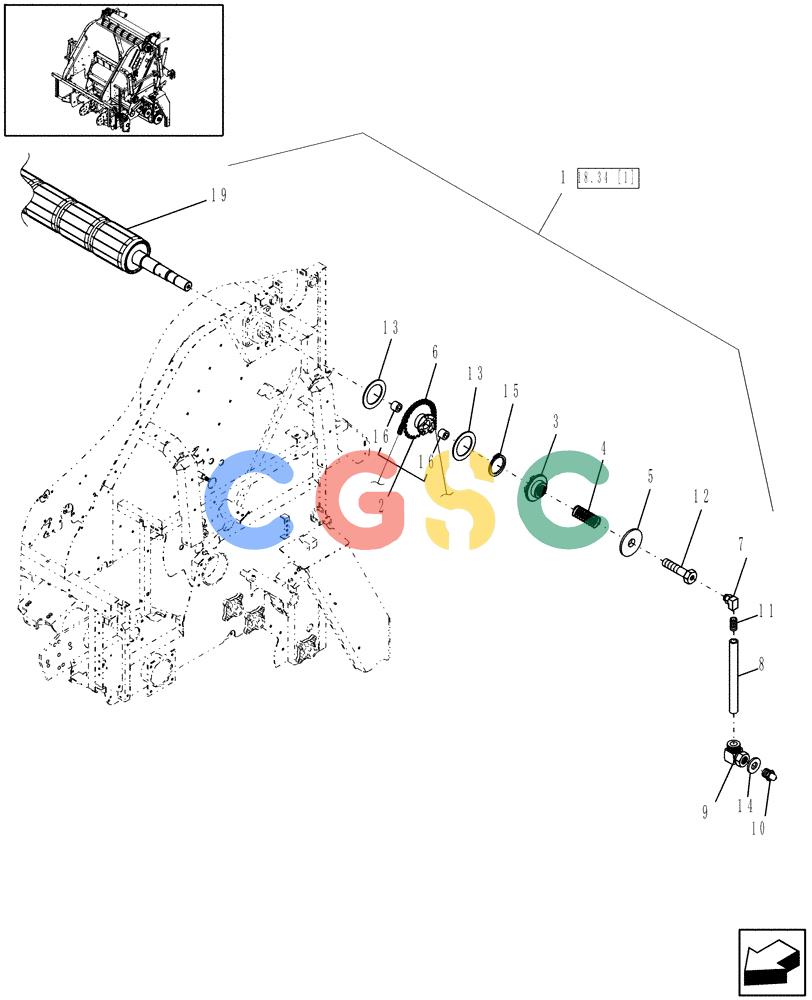

凯斯零件查询(RBX463) - CASE IH ROUND BALER (9/05-12/06) (18.34[2]) - DECLUTCH & DRIVE ROLL KIT, REQUIRED FOR BALERS P.I.N. Y6N016871 & AFTER Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
652 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
87397688
|
[1] |
DIA KIT, HARVESTER
|
PA
Declutch & Drive Roll, Includes: Parts Shown in Figs. 18.34-1, 18.34-2 & Instructions
|
| 2. |
87032323
|
[1] |
SPROCKET
|
PA
Incl 16
|
| 3. |
87028608
|
[1] |
CLUTCH
|
NH
|
| 4. |
86640119
|
[1] |
SPRING,Compression, 2.438" OD x 4.5" L
|
NH
|
| 5. |
9829364
|
[1] |
CAP COVER
|
NH
|
| 7. |
691873
|
[1] |
ELBOW,90 Degree Elbow, 1/8" Male NPT x 1/8" Female NPT
|
NH
Swivel, 90° Superseded by part number: 219-416
|
| 8. |
86629566
|
[1] |
PLASTIC-RUBBER TUBE,2.8mm ID x 4.8mm OD
|
A
Superseded by part number: 87014413
|
| 9. |
48564
|
[1] |
90 ELBOW,90 Degree, 11/16" x 5/8", 1/8" NPT
|
NH
|
| 10. |
84303
|
[1] |
LUBE NIPPLE,1/8"-27 NPT x 1" lg, Fem
|
GI
Superseded by part number: 86050275
|
| 11. |
11787
|
[1] |
FITTING,3/8"-24 Fem x 1/8" NPT
|
NH
Superseded by part number: 84341119, 84341119, 87426476
|
| 12. |
86618213
|
[1] |
SPECIAL BOLT,M12 x 40mm, Drilled
|
NH
|
| 13. |
9808110
|
[3] |
WASHER,46mm ID x 60mm OD x 1.64mm Thk
|
NH
|
| 14. |
87016
|
[1] |
WASHER,0.41" ID x 0.81" OD x 0.07" Thk
|
NH
|
| 15. |
45440
|
[1] |
SNAP RING,#162, Ext
|
GI
|
| 16. |
86977429
|
[2] |
BUSHING,44.62mm ID x 50.93mm OD x 22.2mm L
|
PA
|
| 19. |
87027869
|
[1] |
ROLLER
|
PA
Drive Superseded by part number: 84496217
|
