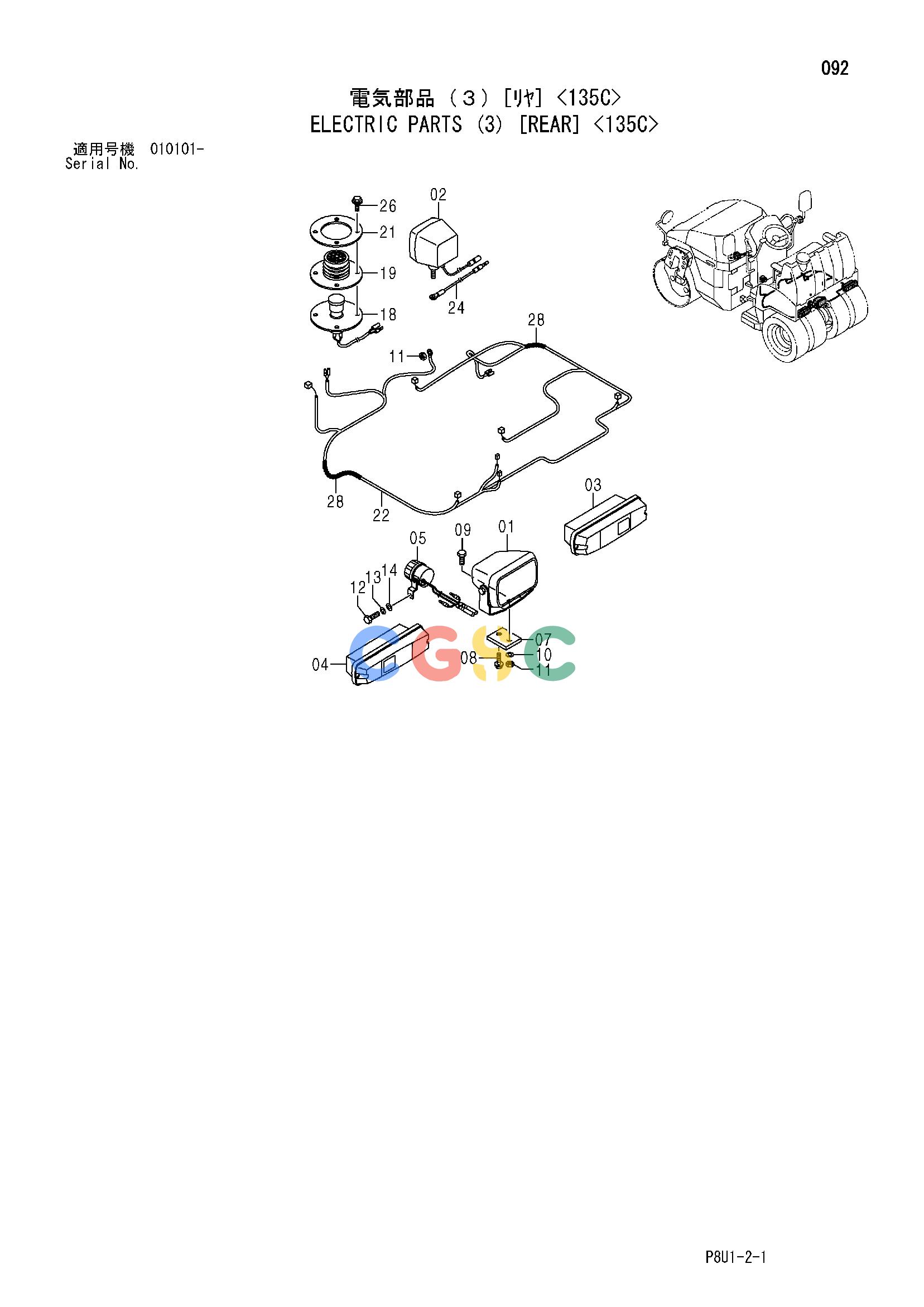

日立零件查询（CC135C）ELECTRIC PARTS (3) [REAR] <135C> Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
817 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01. | 425448 | [1] | LAMP;WORKING | |
| 02. | 425449 | [2] | LAMP;FRONT | |
| 03. | 425450 | [1] | LAMP;REAR | |
| 04. | 425451 | [1] | LAMP;REAR | |
| 05. | 424159 | [1] | ALARM | |
| 07. | 425613 | [1] | PLATE | |
| 08. | 500029 | [1] | BOLT;SEMS | |
| 09. | 947631 | [1] | BOLT | |
| 10. | 947887 | [1] | WASHER;SPRING | |
| 11. | 947855 | [2] | NUT | |
| 12. | 947618 | [1] | BOLT | |
| 13. | 606020 | [1] | WASHER;SPRING | |
| 14. | 947323 | [1] | WASHER;PLANE | |
| 18. | 425520 | [1] | SWITCH | |
| 19. | 425468 | [1] | BOOT | |
| 21. | 425506 | [1] | WASHER | |
| 22. | 425882 | [1] | HARNESS;WIRE | |
| 24. | 425705 | [2] | HARNESS;WIRE | |
| 26. | 947623 | [4] | BOLT;SEMS | |
| 28. | 425466 | [2] | TUBE | |
