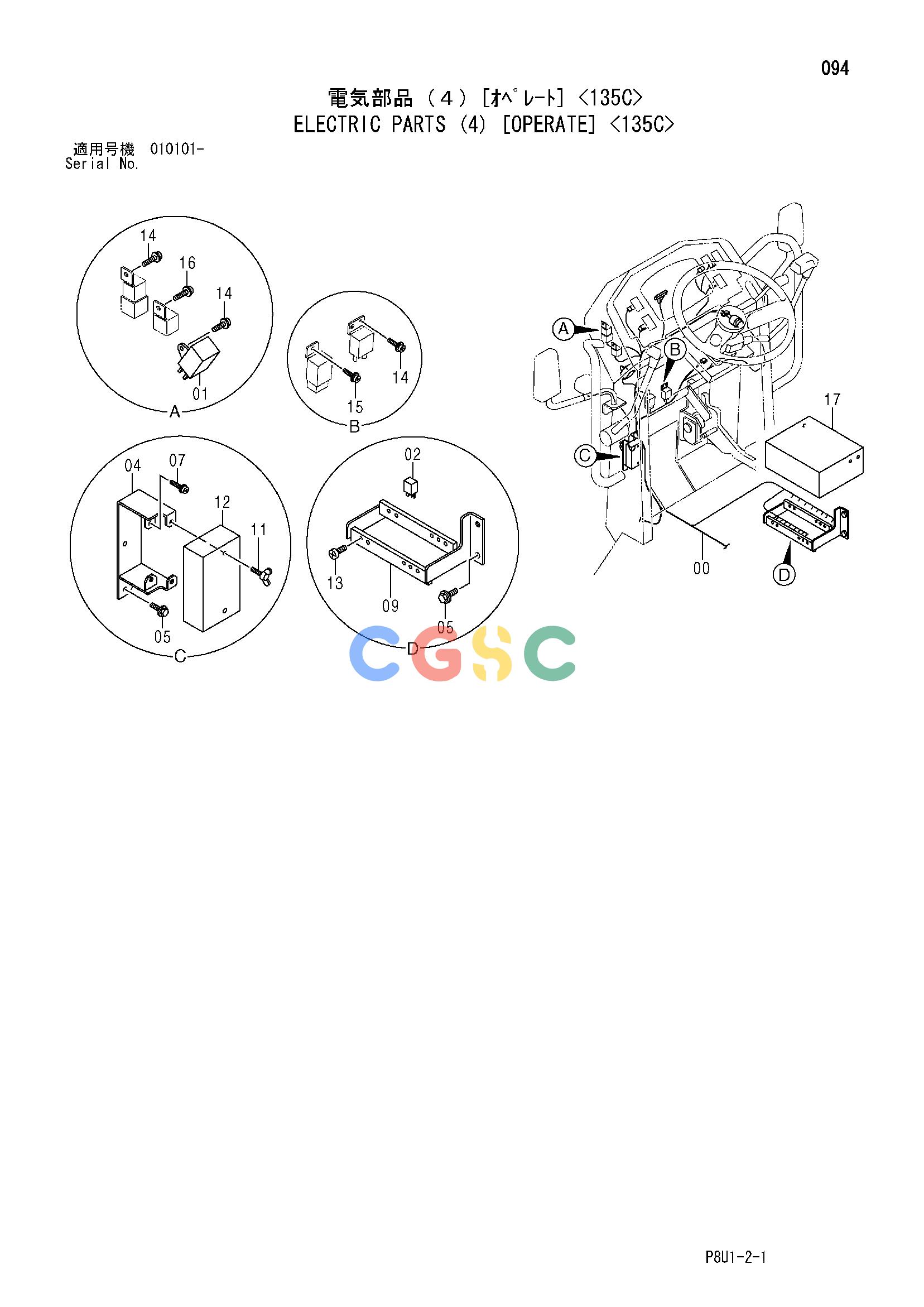

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 00. | 425639 | [1] | HARNESS;WIRE | |
| 00. | 426019 | [1] | HARNESS;WIRE | |
| 01. | 425443 | [1] | RELAY | |
| 02. | 425544 | [30] | RELAY | |
| 04. | 425789 | [1] | BRACKET | |
| 05. | 500048 | [4] | BOLT;SEMS | |
| 07. | 439859 | [2] | SCREW;SEMS | |
| 09. | 425919 | [1] | BRACKET | |
| 11. | 425561 | [2] | BOLT;WING | |
| 12. | 425698 | [1] | COVER | |
| 13. | 424222 | [8] | SCREW | |
| 14. | 424222 | [4] | SCREW;SEMS | |
| 15. | 424200 | [1] | SCREW;SEMS | |
| 16. | 947823 | [1] | SCREW;SEMS | |
| 17. | 425824 | [1] | COVER |
