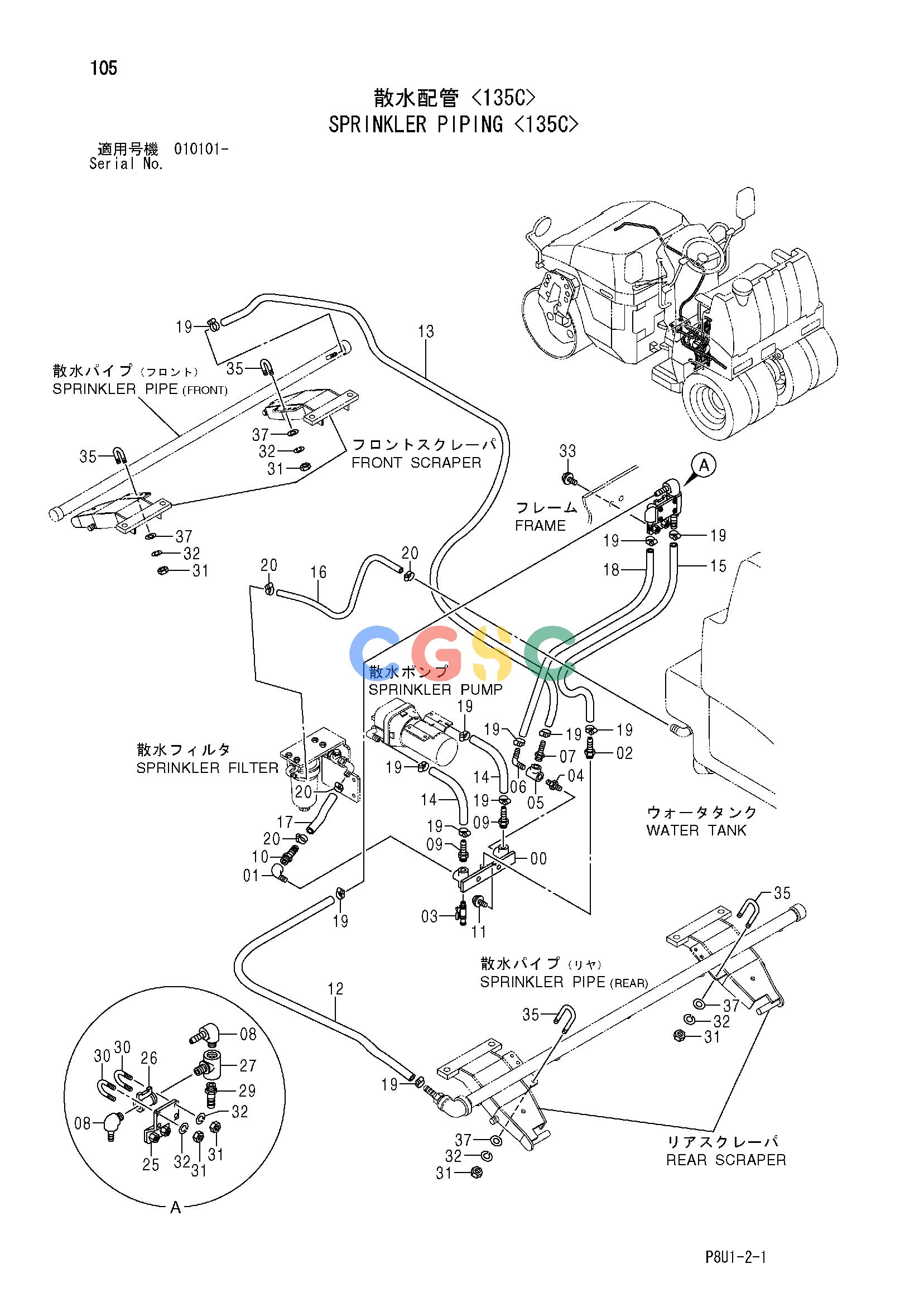

日立零件查询（CC135C）SPRINKLER PIPING <135C> Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
698 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 425802 | [1] | BRACKET | |
| 01. | 947437 | [1] | ELBOW | |
| 02. | 947456 | [1] | FITTING;HOSE | |
| 03. | 438392 | [3] | VALVE;BALL | |
| 04. | 425616 | [1] | ADAPTER | |
| 05. | 947709 | [1] | TEE | |
| 06. | 424260 | [1] | FITTING;HOSE | |
| 07. | 439684 | [1] | FITTING;HOSE | |
| 08. | 439415 | [2] | FITTING;HOSE | |
| 09. | 425617 | [2] | FITTING;HOSE | |
| 10. | 425853 | [1] | FITTING;HOSE | |
| 11. | 500048 | [2] | BOLT;SEMS | |
| 12. | 947279 | [1] | HOSE | |
| 13. | 947279 | [1] | HOSE | |
| 14. | 244054 | [2] | HOSE | |
| 15. | 947279 | [1] | HOSE | |
| 16. | 947281 | [1] | HOSE | |
| 17. | 947281 | [1] | HOSE | |
| 18. | 947279 | [1] | HOSE | |
| 19. | 947463 | [12] | CLAMP;HOSE | |
| 20. | 424171 | [4] | CLAMP;HOSE | |
| 25. | 425813 | [1] | BRACKET | |
| 26. | 425622 | [1] | VALVE;BALL | |
| 27. | 425623 | [1] | TEE | |
| 29. | 439334 | [1] | FITTING;HOSE | |
| 30. | 947595 | [2] | BOLT;U | |
| 31. | 947853 | [12] | NUT | |
| 32. | 947886 | [12] | WASHER;SPRING | |
| 33. | 500029 | [2] | BOLT;SEMS | |
| 35. | 947596 | [4] | BOLT;U | |
| 37. | 947322 | [8] | WASHER;PLANE | |
