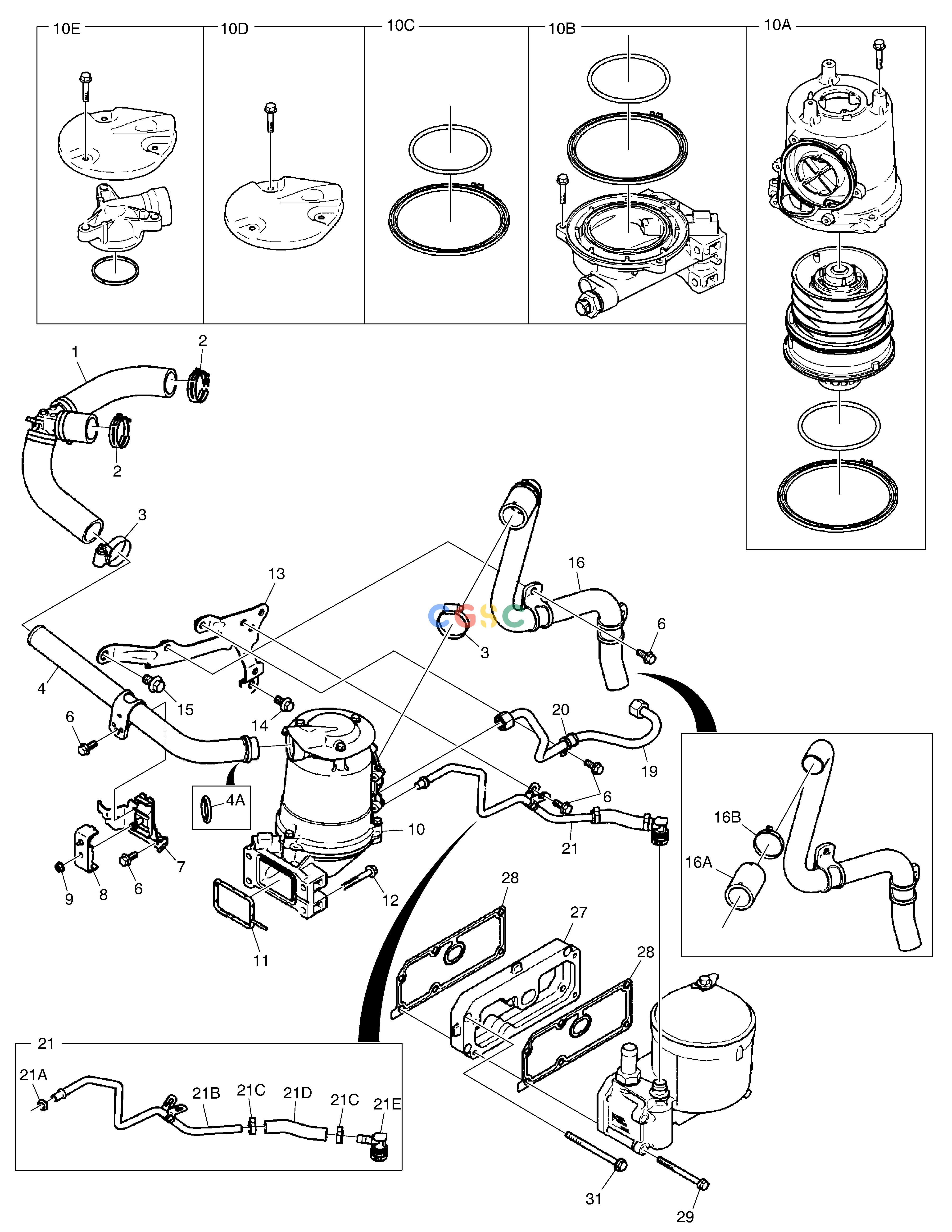

斗山零件查询BREATHER SYSTEM DX530LC-5(S/N:10001~10006) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
338 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
420108-00572
|
[1] |
|
|
| 10. |
240302-00008
|
[1] |
CARTER
|
|
| 10A. |
101529-00226
|
[1] |
|
|
| 10B. |
101529-00378
|
[1] |
|
|
| 10C. |
401107-01190
|
[1] |
|
|
| 10D. |
101529-00380
|
[1] |
|
|
| 10E. |
101529-00243
|
[1] |
|
|
| 11. |
400602-00463
|
[1] |
GARNITURE
|
|
| 12. |
120705-00749
|
[4] |
VIS
|
|
| 13. |
110411-00246
|
[1] |
|
|
| 14. |
120705-00738
|
[2] |
VIS
|
|
| 15. |
120705-00744
|
[1] |
|
|
| 16. |
420210-01715
|
[1] |
|
|
| 16A. |
420108-00573
|
[1] |
|
|
| 16B. |
NA00362
|
[1] |
CLAMP
|
|
| 19. |
420210-00861
|
[1] |
CONDUITE
|
|
| 2. |
120202-00270
|
[2] |
|
|
| 20. |
120203-00288
|
[1] |
COLLIER
|
|
| 21. |
420210-01716
|
[1] |
|
|
| 21A. |
401002-00698
|
[1] |
JOINT
|
|
| 21B. |
NA00793
|
[1] |
|
|
| 21C. |
NA00362
|
[2] |
CLAMP
|
|
| 21D. |
420108-01162
|
[1] |
|
|
| 21E. |
430208-00286
|
[1] |
BIELLE
|
|
| 27. |
430215-01034
|
[1] |
|
|
| 28. |
400602-00471
|
[2] |
|
|
| 29. |
120705-00846
|
[4] |
|
|
| 3. |
120202-00144
|
[2] |
COLLIER DE LA CONDUITE
|
|
| 31. |
120705-00737
|
[4] |
VIS
|
|
| 4. |
420210-01703
|
[1] |
|
|
| 4A. |
401002-00697
|
[1] |
JOINT
|
|
| 6. |
120705-00730
|
[7] |
VIS
|
|
| 7. |
110411-00222
|
[1] |
|
|
| 8. |
120202-00271
|
[1] |
|
|
| 9. |
120305-00048
|
[1] |
ECROU
|
|
