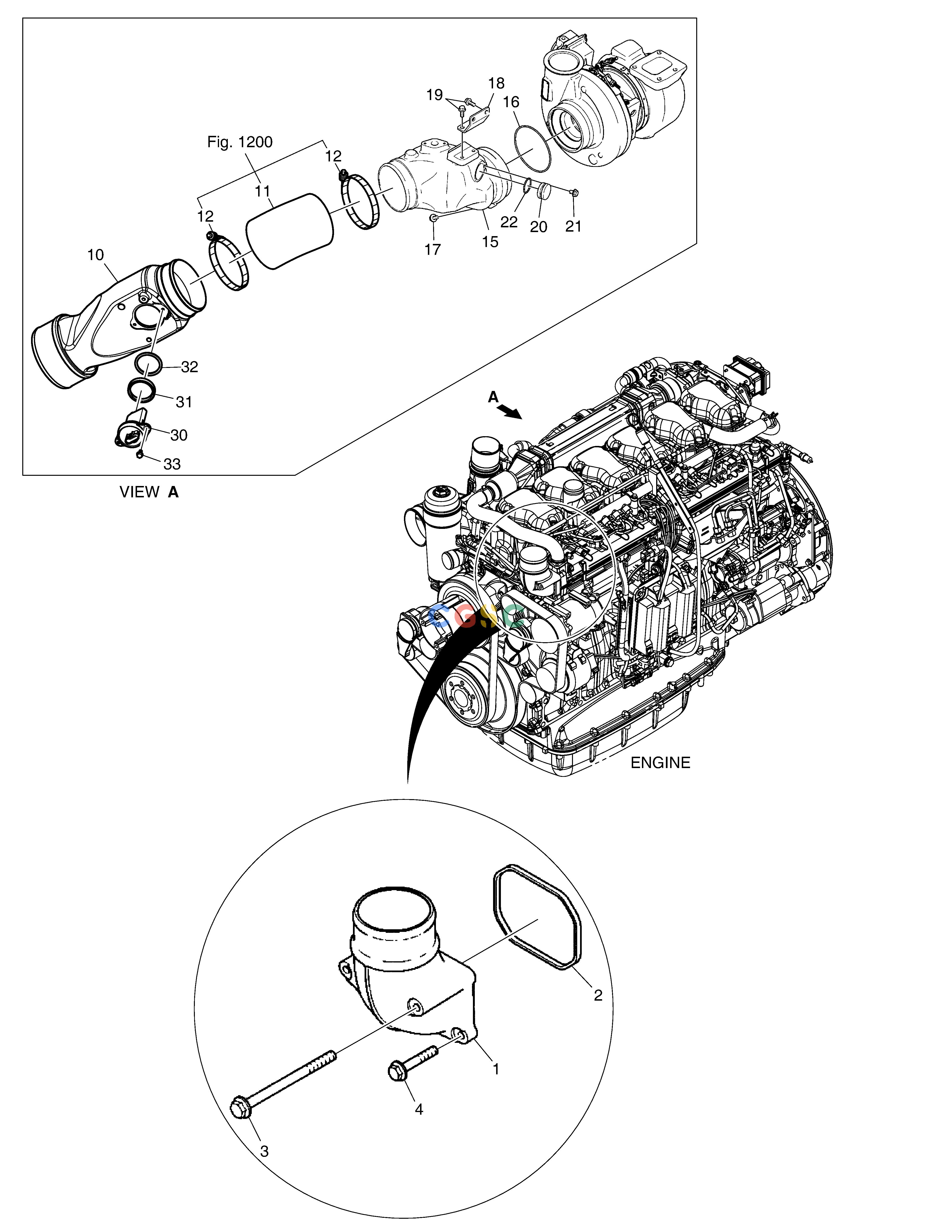

斗山零件查询CHARGE AIR PIPE DX530LC-5(S/N:10001~10006) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
151 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
420202-00310
|
[1] |
|
|
| 10. |
240401-00231
|
[1] |
|
|
| 11. |
420101-00694A
|
[1] |
|
|
| 12. |
S8500143
|
[2] |
CLAMP;HOSE
|
|
| 15. |
420209-00303
|
[1] |
|
|
| 16. |
401002-01356
|
[1] |
JOINT TORIQUE
|
|
| 17. |
120705-00731
|
[1] |
VIS
|
|
| 18. |
110411-00247
|
[1] |
SUPPORT
|
|
| 19. |
120705-00730
|
[4] |
VIS
|
|
| 2. |
401109-00076
|
[1] |
ANNEAU DE JOINT
|
|
| 20. |
430221-01061
|
[1] |
PRISE
|
|
| 21. |
120705-00728
|
[1] |
VIS
|
|
| 22. |
401002-01346
|
[1] |
JOINT TORIQUE
|
|
| 3. |
120705-00689
|
[2] |
|
|
| 30. |
301317-00101
|
[1] |
CAPTEUR
|
|
| 31. |
110949-00655
|
[1] |
DOUILLE
|
|
| 32. |
400602-00729
|
[1] |
GARNITURE
|
|
| 33. |
120705-00694
|
[2] |
VIS
|
|
| 4. |
120705-00687
|
[2] |
VIS
|
|
