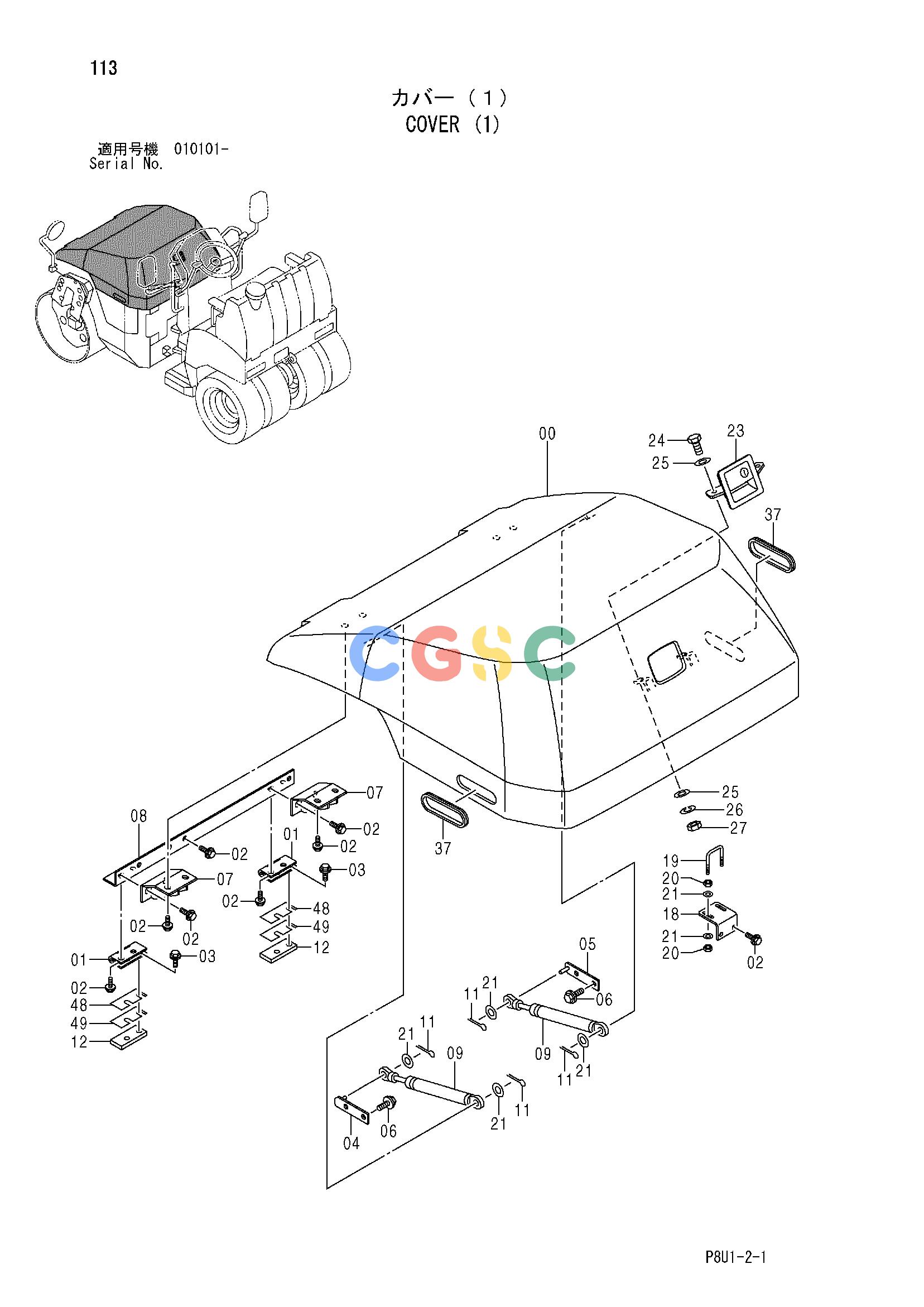

日立零件查询（CC135C）COVER (1) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
498 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 425906 | [1] | COVER | |
| 01. | 425878 | [2] | HINGE | |
| 02. | 500028 | [16] | BOLT;SEMS | |
| 03. | 500030 | [4] | BOLT;SEMS | |
| 04. | 425809 | [1] | BRACKET(L) | |
| 05. | 425810 | [1] | BRACKET(R) | |
| 06. | 500048 | [4] | BOLT;SEMS | |
| 07. | 425944 | [2] | BRACKET | |
| 08. | 425922 | [1] | BRACKET | |
| 09. | 425675 | [2] | CYL. | |
| 11. | 630035 | [4] | PIN;SPLIT | |
| 12. | 425879 | [2] | PLATE | |
| 18. | 425893 | [1] | BRACKET | |
| 19. | 425229 | [1] | BOLT;U | |
| 20. | 947854 | [4] | NUT | |
| 21. | 947323 | [8] | WASHER;PLANE | |
| 23. | 424377 | [1] | LATCH | |
| 24. | 947632 | [2] | BOLT | |
| 25. | 947324 | [4] | WASHER;PLANE | |
| 26. | 947887 | [2] | WASHER;SPRING | |
| 27. | 947855 | [2] | NUT | |
| 37. | 425477 | [2] | BUSHING;RUBBER | |
| 48. | 425891 | [6] | SHIM 1.6 | |
| 49. | 425892 | [2] | SHIM 1.0 | |
