沃尔沃零件查询D4-180I-B; D4-180I-C; D4-180I-D; D4-180I-E; D4-210A-A; D4-225A-B; D4-210I-A; D4-210I-B; D4-225I-B; D4-225A-C; D4-225A-D; D4-225I-C; D4-225I-Electrical SystemExtra AlternatorEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
214 次

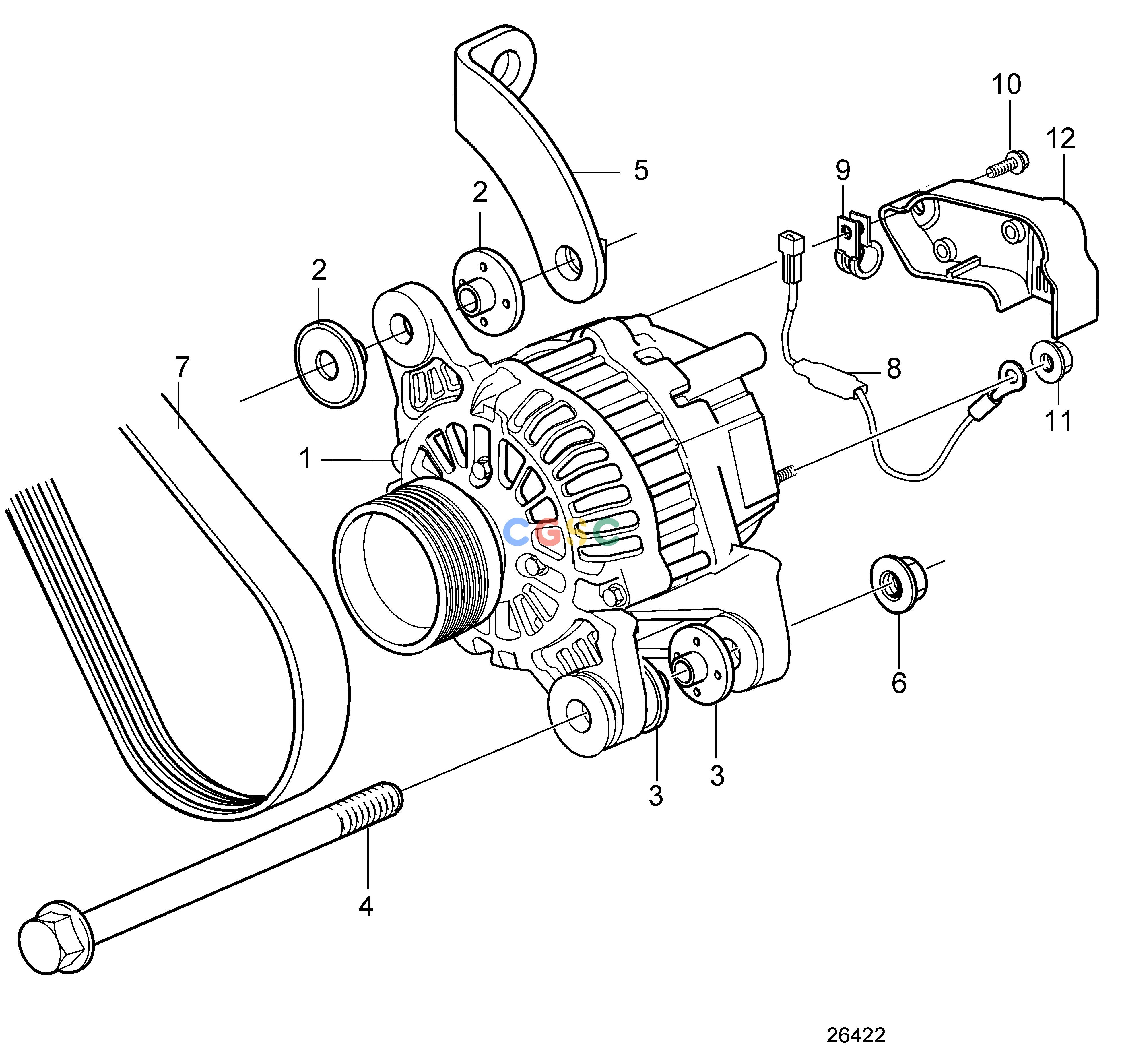

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3803911
|
[1] |
Alternator, exch
|
14V, 115A
|
| 1. |
3803912
|
[1] |
Alternator, exch
|
28V, 80A
|
| 2. |
3589369
|
[2] |
Insulating bushing
|
D=8mm
|
| 3. |
3589388
|
[2] |
Insulating bushing
|
D=12mm
|
| 4. |
978447
|
[1] |
Flange screw
|
|
| 5. |
3809682
|
[1] |
Bracket
|
(3583005)
|
| 6. |
971096
|
[1] |
Flange nut
|
|
| 7. |
3582696
|
[1] |
V-ribbed belt
|
other
|
| 7. |
991590
|
[1] |
V-ribbed belt
|
SOLAS
|
| 8. |
881679
|
[1] |
Resistor
|
12V
|
| 8. |
21694528
|
[1] |
Resistor
|
24V
|
| 9. |
952627
|
[1] |
Clamp
|
|
| 10. |
948663
|
[1] |
Flange screw
|
|
| 11. |
983712
|
[1] |
Hexagon nut
|
|
| 12. |
21217571
|
[1] |
Housing
|
|
