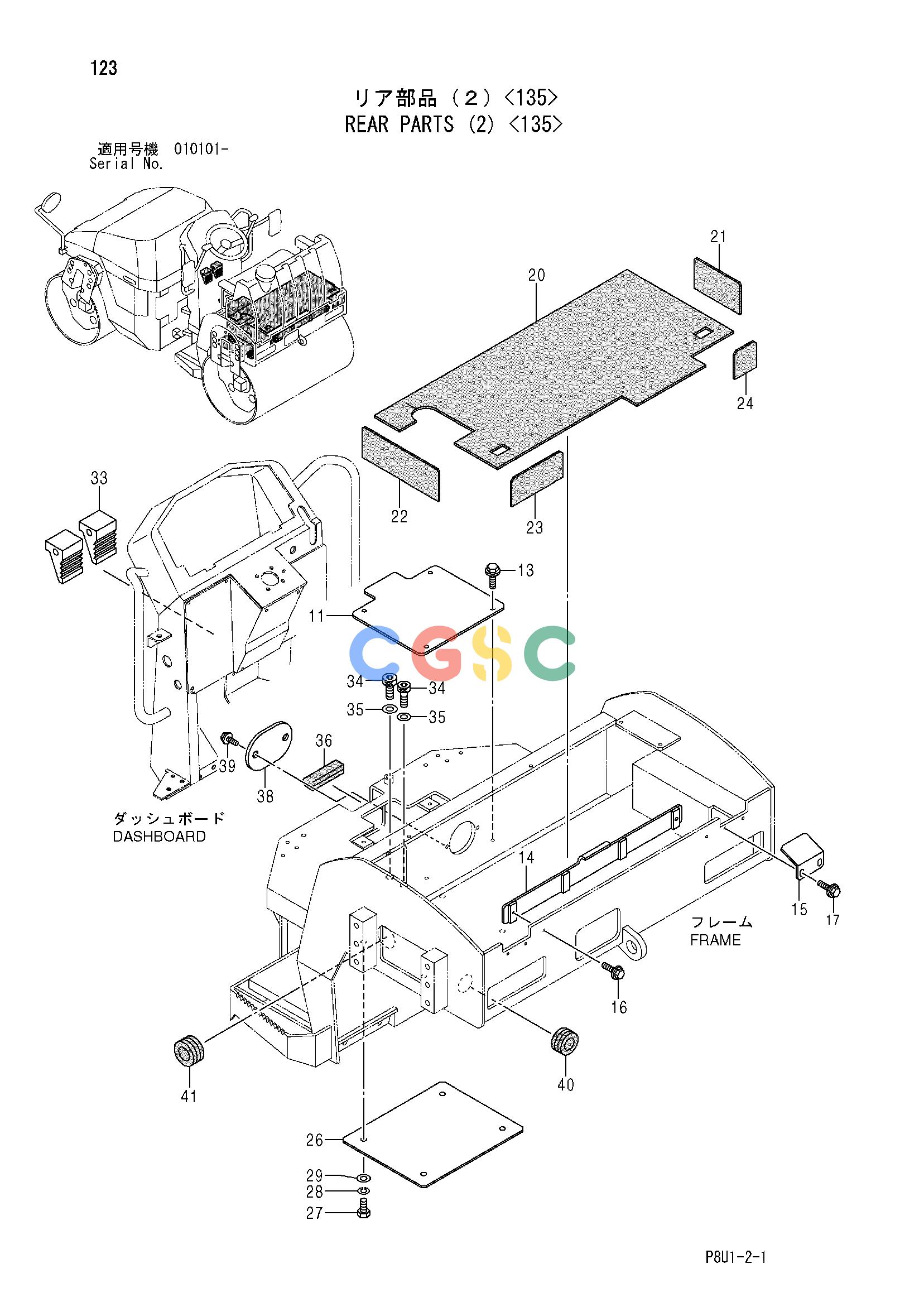

日立零件查询（CC135C）REAR PARTS (2) <135> Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
792 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 11. | 425943 | [1] | PLATE | |
| 13. | 500030 | [4] | BOLT;SEMS | |
| 14. | 425942 | [1] | BRACKET | |
| 15. | 425939 | [2] | BRACKET | |
| 16. | 500028 | [2] | BOLT;SEMS | |
| 17. | 500029 | [4] | BOLT;SEMS | |
| 20. | 425874 | [1] | RUBBER | |
| 21. | 425870 | [1] | RUBBER | |
| 22. | 425869 | [1] | RUBBER | |
| 23. | 425871 | [1] | RUBBER | |
| 24. | 425872 | [1] | RUBBER | |
| 26. | 425965 | [1] | COVER | |
| 27. | 947631 | [4] | BOLT | |
| 28. | 947887 | [4] | WASHER;SPRING | |
| 29. | 947324 | [4] | WASHER;PLANE | |
| 33. | 438557 | [2] | STOPPER | |
| 34. | 425556 | [2] | BOLT;SOCKET | |
| 35. | 424195 | [2] | WASHER | |
| 36. | 425634 | [1] | SEAL RUBBER | |
| 38. | 425696 | [1] | COVER | |
| 39. | 500048 | [2] | BOLT;SEMS | |
| 40. | 426088 | [1] | BUSHING;RUBBER | |
| 41. | 424078 | [1] | BUSHING;RUBBER | |
