沃尔沃零件查询D4-180I-B; D4-180I-C; D4-180I-D; D4-180I-E; D4-210A-A; D4-225A-B; D4-210I-A; D4-210I-B; D4-225I-B; D4-225A-C; D4-225A-D; D4-225I-C; D4-225I-Electrical SystemTank Meter Kit for Fuel. EVCEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
276 次

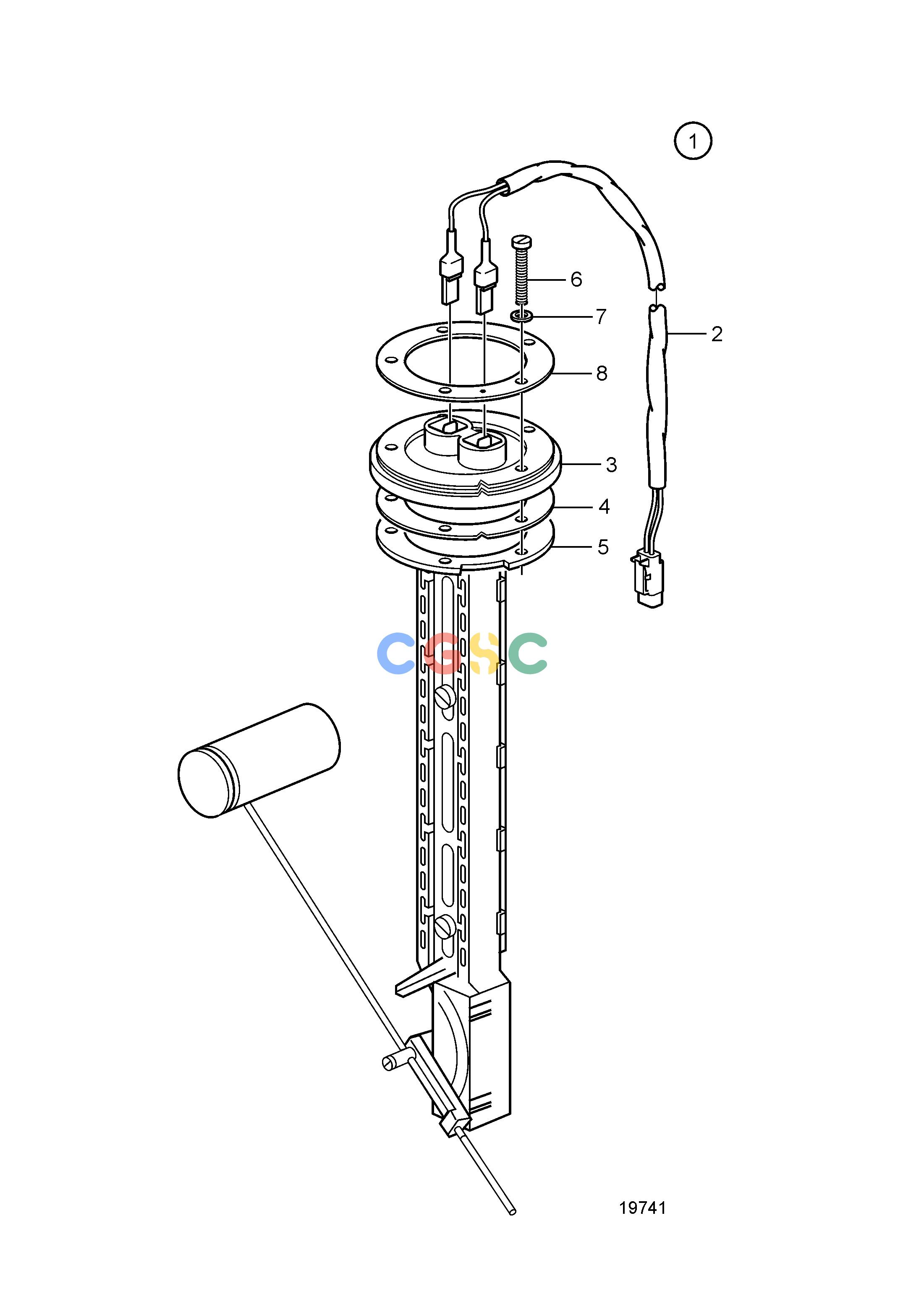

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3812291
|
[1] |
Sensor kit, fuel level
|
3-180 Ohms
|
| 2. |
874807
|
[1] |
Cable kit
|
L=6,0m
|
| 3. |
873772
|
[1] |
Tank sensor
|
|
| 4. |
89865
|
[1] |
Gasket
|
|
| 5. |
834480
|
[1] |
Flange
|
|
| 6. |
969408
|
[4] |
Six point socket scr
|
L=20mm
|
| 6. |
|
|
|
L=30mm
|
| 7. |
834481
|
[5] |
Gasket
|
|
| 8. |
|
|
|
Not sold separately
|
