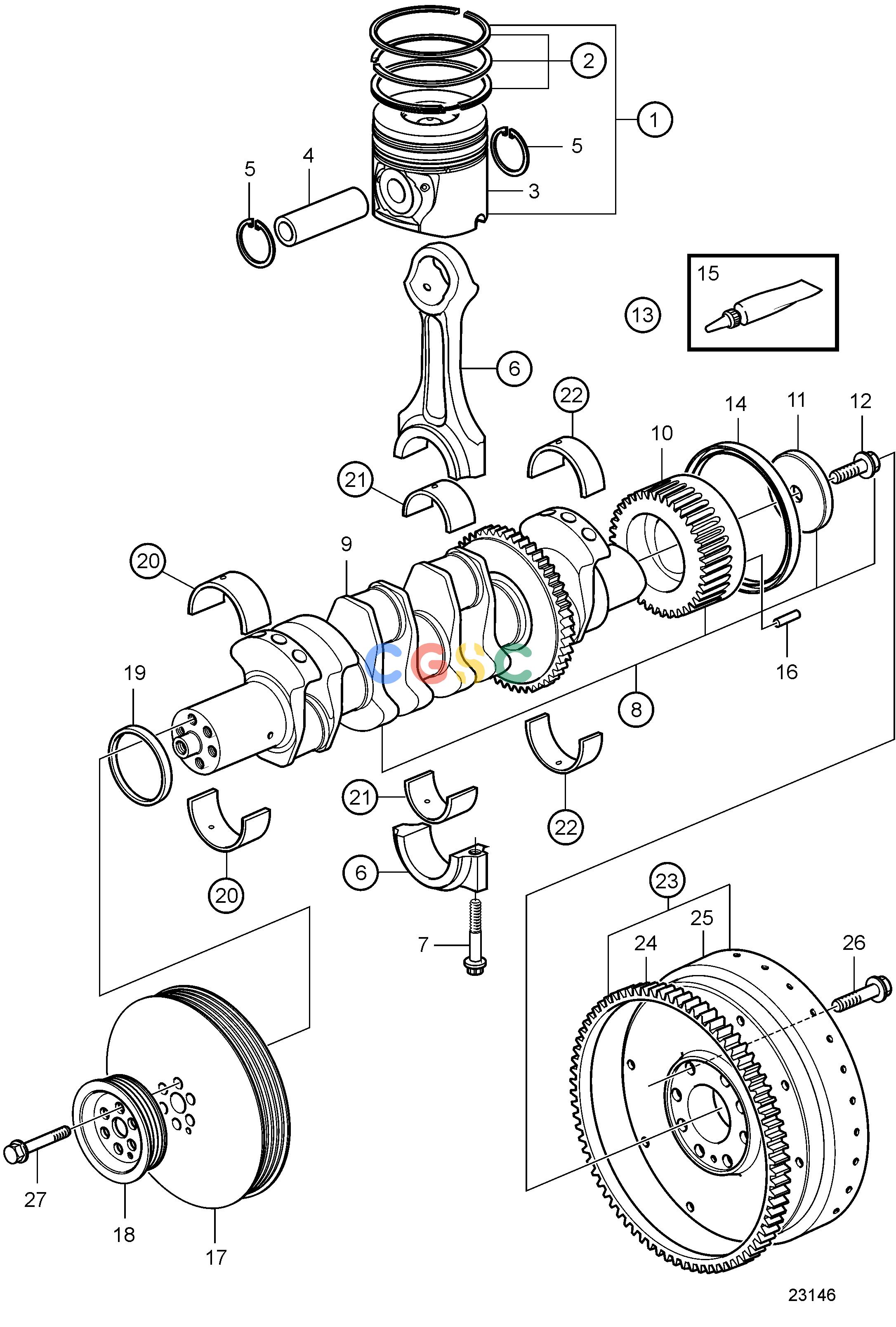

沃尔沃零件查询D4-180I-B; D4-180I-C; D4-180I-D; D4-180I-E; D4-210A-A; D4-225A-B; D4-210I-A; D4-210I-B; D4-225I-B; D4-225A-C; D4-225A-D; D4-225I-C; D4-225I-EngineCrank MechanismEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
547 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3842771
|
[4] |
Piston kit
|
Std
|
| 2. |
3586857
|
[1] |
Piston ring kit
|
Std
|
| 3. |
|
|
|
Std
|
| 4. |
3581912
|
[1] |
Gudgeon pin
|
|
| 5. |
982437
|
[2] |
Snap ring
|
|
| 6. |
3842698
|
[4] |
Connecting rod
|
|
| 7. |
3581905
|
[2] |
Screw
|
|
| 8. |
|
|
|
|
| 9. |
3818267
|
[1] |
Spare parts kit
|
|
| 10. |
3583264
|
[1] |
Gear
|
|
| 11. |
3582741
|
[1] |
Washer
|
|
| 12. |
465825
|
[1] |
Flange screw
|
|
| 13. |
3586960
|
[1] |
Sealing ring kit
|
|
| 14. |
|
|
|
|
| 15. |
1161687
|
[1] |
Grease
|
(1161447)
|
| 16. |
950566
|
[1] |
Pin
|
|
| 17. |
3841075
|
[1] |
Vibration damper
|
(3582686)
|
| 18. |
3582687
|
[1] |
Pulley
|
|
| 19. |
3582748
|
[1] |
Sealing ring
|
|
| 20. |
3586871
|
[4] |
Main bearing kit
|
Std
|
| 20. |
3586873
|
[4] |
Main bearing kit
|
O.S=0,25mm
|
| 20. |
3586875
|
[4] |
Main bearing kit
|
O.S=0,50mm
|
| 20. |
3586876
|
[4] |
Main bearing kit
|
O.S=0,75mm
|
| 21. |
3885323
|
[4] |
Bearing shell kit
|
Std, (3586883)
|
| 21. |
3586886
|
[4] |
Bearing shell kit
|
O.S=0,25mm
|
| 21. |
3586888
|
[4] |
Bearing shell kit
|
O.S=0,50mm
|
| 21. |
3586889
|
[4] |
Bearing shell kit
|
O.S=0,75mm
|
| 22. |
3586877
|
[1] |
Thrust bearing
|
Std
|
| 22. |
3586879
|
[1] |
Thrust bearing
|
O.S=0,25mm
|
| 22. |
3586880
|
[1] |
Thrust bearing
|
O.S=0,50mm
|
| 22. |
3586881
|
[1] |
Thrust bearing
|
O.S=0,75mm
|
| 23. |
3581913
|
[1] |
Flywheel
|
|
| 24. |
829462
|
[1] |
Ring gear
|
|
| 25. |
|
|
|
|
| 26. |
465825
|
[8] |
Flange screw
|
|
| 27. |
465825
|
[6] |
Flange screw
|
|
