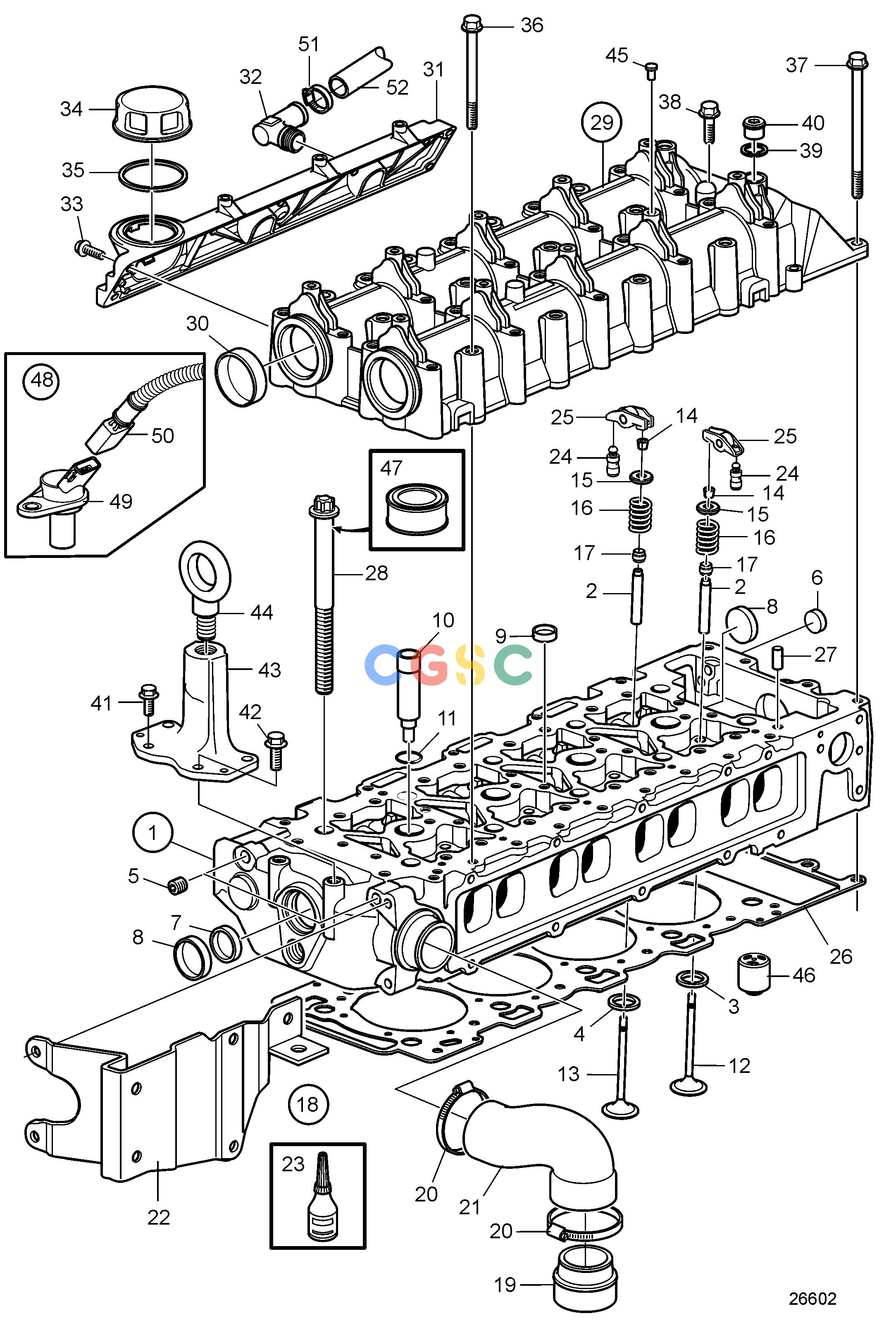

沃尔沃零件查询D4-180I-B; D4-180I-C; D4-180I-D; D4-180I-E; D4-210A-A; D4-225A-B; D4-210I-A; D4-210I-B; D4-225I-B; D4-225A-C; D4-225A-D; D4-225I-C; D4-225I-EngineCylinder Head, ExchangeEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
211 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3801255
|
[1] |
Cylinder head
|
(3803887)
|
| 2. |
3580892
|
[16] |
Valve guide
|
|
| 3. |
3581861
|
[8] |
Valve seat, intake
|
|
| 4. |
3581862
|
[8] |
Valve seat, exhaust
|
|
| 5. |
990828
|
[4] |
Plug
|
|
| 6. |
3588502
|
[2] |
Expansion plug
|
|
| 7. |
24426721
|
[2] |
Expansion plug
|
|
| 8. |
8131707
|
[2] |
Cap plug
|
|
| 9. |
3583579
|
[7] |
Expansion plug
|
|
| 10. |
889970
|
[4] |
Sleeve
|
|
| 11. |
3583753
|
[4] |
O-ring
|
|
| 12. |
3884010
|
[8] |
Inlet valve
|
|
| 13. |
3884015
|
[8] |
Exhaust valve
|
|
| 14. |
861703
|
[32] |
Valve cotter
|
|
| 15. |
3581890
|
[16] |
Valve spring washer
|
|
| 16. |
3581889
|
[16] |
Valve spring
|
|
| 17. |
877072
|
[16] |
Valve stem seal
|
|
| 18. |
21181057
|
[1] |
Connector kit
|
For new cylinder head in combination with heat exchanger without pipe connection.
|
| 19. |
3808092
|
[1] |
Pipe connection
|
|
| 20. |
943479
|
[2] |
Hose clamp
|
|
| 21. |
3593996
|
[1] |
Hose
|
|
| 22. |
21368510
|
[1] |
Bracket
|
|
| 23. |
1161370
|
[1] |
Adhesive
|
50ml
|
| 24. |
3581894
|
[16] |
Rocker arm
|
|
| 25. |
3581893
|
[16] |
Cam
|
|
| 26. |
3581868
|
[1] |
Cylinder head gasket
|
|
| 27. |
950564
|
[2] |
Pin
|
|
| 28. |
3581866
|
[10] |
Six point screw
|
SN-2004017198
|
| 28. |
21384459
|
[10] |
Six point screw
|
SN2004017199-
|
| 29. |
3583872
|
[1] |
Valve cover
|
SN-2004017198, Replaced by 1pc valve cover 40005652 and 1pc camshaft kit 21138559.
|
| 29. |
40005652
|
[1] |
Valve cover
|
SN2004017199-
|
| 30. |
8130035
|
[2] |
Expansion plug
|
|
| 31. |
|
|
|
|
| 32. |
3583959
|
[1] |
Elbow nipple
|
|
| 33. |
948356
|
[5] |
Flange screw
|
|
| 34. |
1275403
|
[1] |
Oil filler cap
|
|
| 35. |
1275379
|
[1] |
Gasket
|
|
| 36. |
965182
|
[28] |
Flange screw
|
|
| 37. |
968999
|
[3] |
Flange screw
|
|
| 38. |
945444
|
[1] |
Flange screw
|
|
| 39. |
947622
|
[2] |
Gasket
|
|
| 40. |
966143
|
[2] |
Plug
|
|
| 41. |
946329
|
[2] |
Flange screw
|
|
| 42. |
946173
|
[2] |
Flange screw
|
|
| 43. |
3888143
|
[1] |
Lifting bracket
|
|
| 44. |
984458
|
[1] |
Lifting eye
|
|
| 45. |
3584061
|
[10] |
Washer
|
|
| 46. |
3582933
|
[2] |
Valve
|
|
| 47. |
3588347
|
[1] |
Lubricant
|
25G
|
| 48. |
21138559
|
[1] |
Sensor kit
|
For flywheel housing with SN2004017199- mounted on engine with SN-2004017198
|
| 49. |
20513343
|
[1] |
Sensor
|
|
| 50. |
21138239
|
[1] |
Wiring harness
|
|
| 51. |
994559
|
[1] |
Hose clamp
|
|
| 52. |
190993
|
[1] |
Hose
|
L=265mm
|
