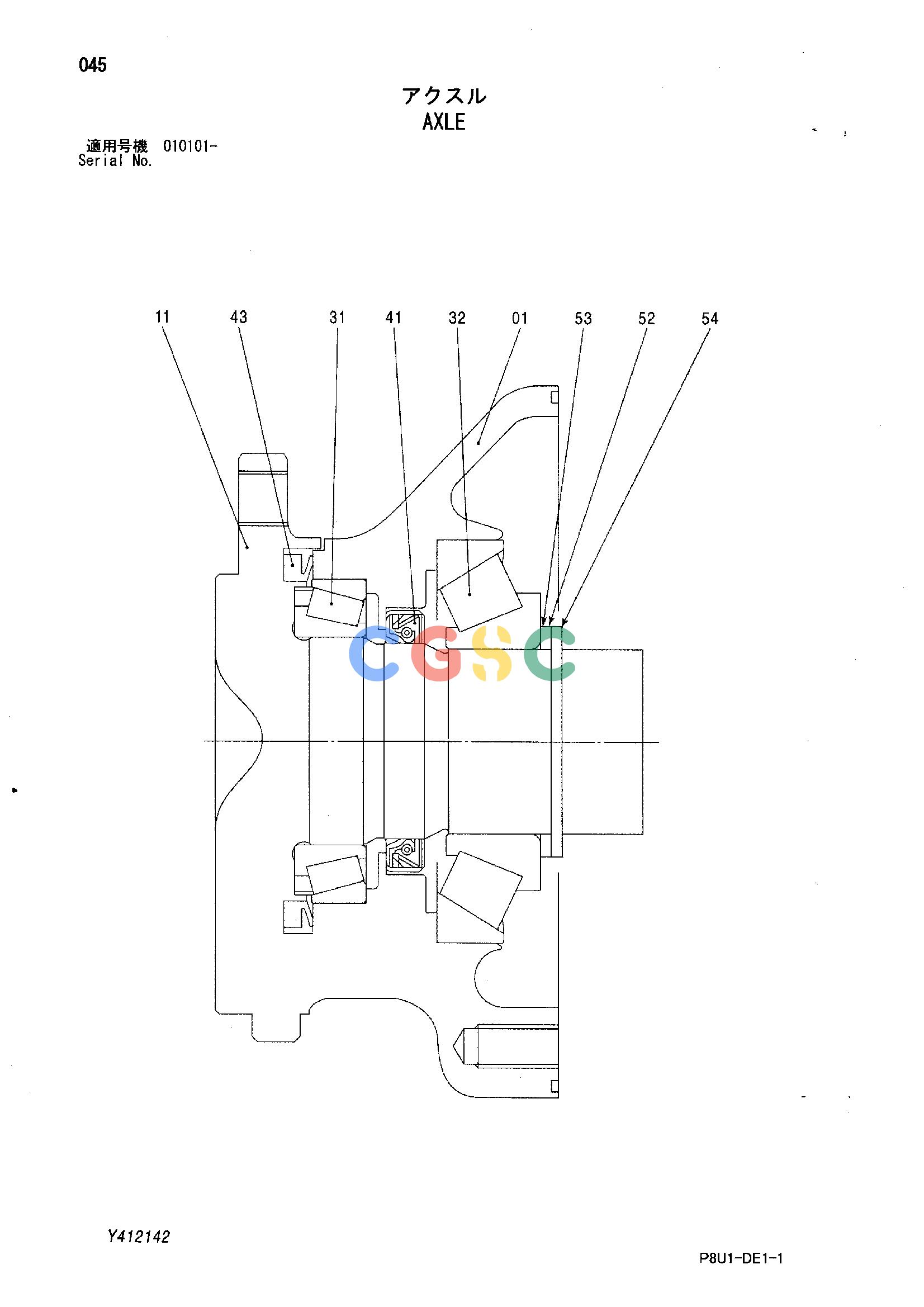

日立零件查询（CC135C）AXLE Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
748 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 425463-01 | [1] | AXLE | |
| | 425463-01 | [1] | AXLE | |
| 01. | 425463-05 | [1] | HOUSING | |
| 01. | 425463-05 | [1] | HOUSING | |
| 11. | 425463-06 | [1] | SHAFT | |
| 11. | 425463-06 | [1] | SHAFT | |
| 31. | 425463-07 | [1] | BRG.;ROL. | |
| 31. | 425463-07 | [1] | BRG.;ROL. | |
| 32. | 425463-08 | [1] | BRG.;ROL. | |
| 32. | 425463-08 | [1] | BRG.;ROL. | |
| 41. | 425463-09 | [1] | SEAL;OIL | |
| 41. | 425463-09 | [1] | SEAL;OIL | |
| 43. | 425463-10 | [1] | SEAL;DUST | |
| 43. | 425463-10 | [1] | SEAL;DUST | |
| 52. | 425463-11 | [1] | WASHER | |
| 52. | 425463-11 | [1] | WASHER | |
| 53. | 425463-12 | [1] | SHIM | |
| 53. | 425463-12 | [1] | SHIM | |
| 54. | 425463-13 | [1] | RING;RETAINING | |
| 54. | 425463-13 | [1] | RING;RETAINING | |
