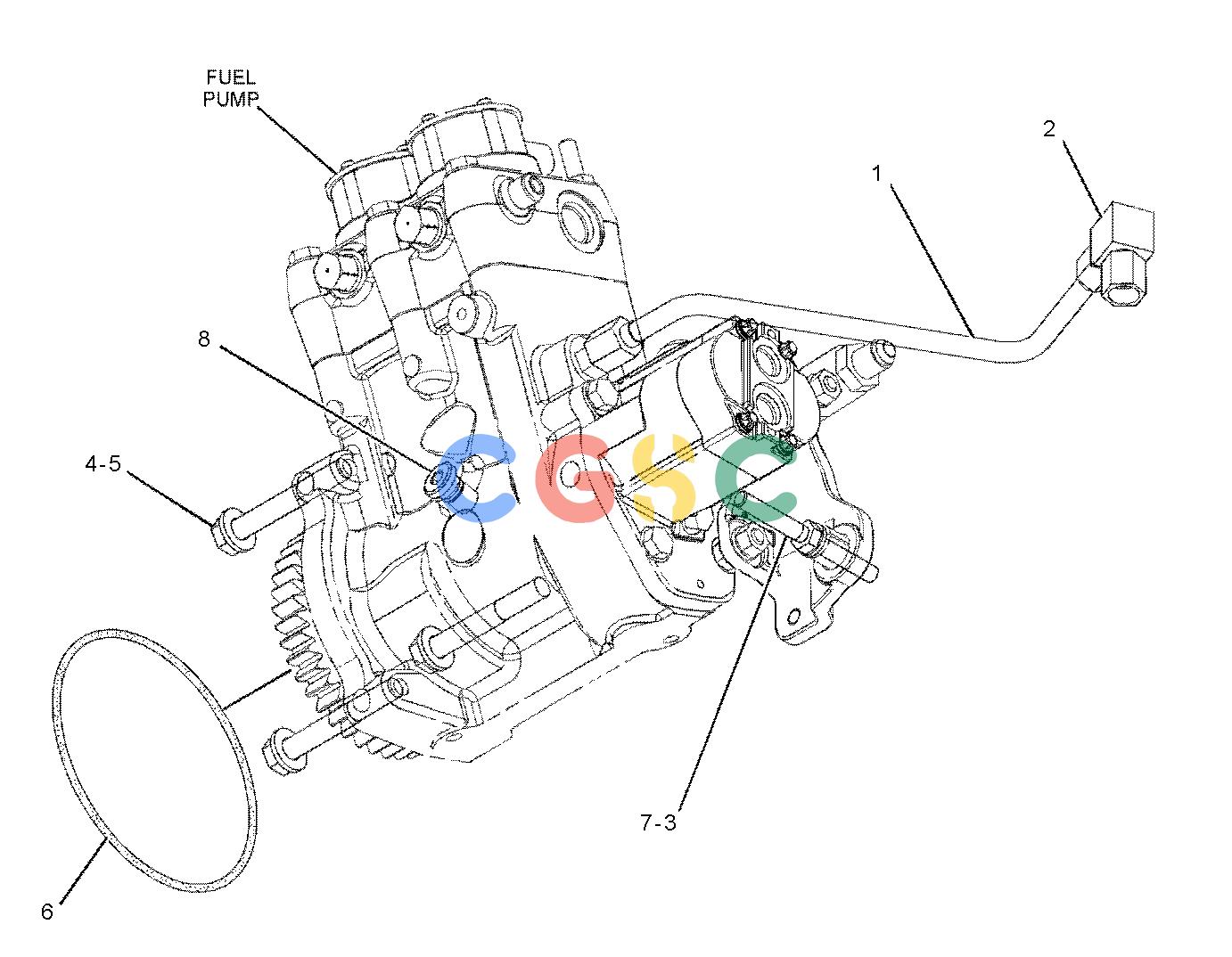

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 307-1669 | [1] | TUBE AS | |
| 2. | 6K-9194 | [1] | ELBOW | |
| 3. | 382-3965M | [1] | STUD(M8X1.25X40.7-MM, M8X1.25X40-MM) | |
| 4. | 6V-5839 | [3] | WASHER(11X21X2.5-MM THK) | |
| 5. | 6V-7981M | [3] | BOLT(M10X1.5X70-MM) | |
| 6. | 6V-8260 | [1] | SEAL-O-RING | |
| 7. | 9M-1974 | [1] | WASHER-HARD(8.8X16X2-MM THK) | |
| 8. | 396-3850 | [1] | PLUG AS | |
| 228-7089 | [1] | SEAL-O-RING | ||
| 364-0628 | [1] | PLUG-SPECIAL(FUEL PUMP TIMING) | ||
| M | METRIC PART | |||
