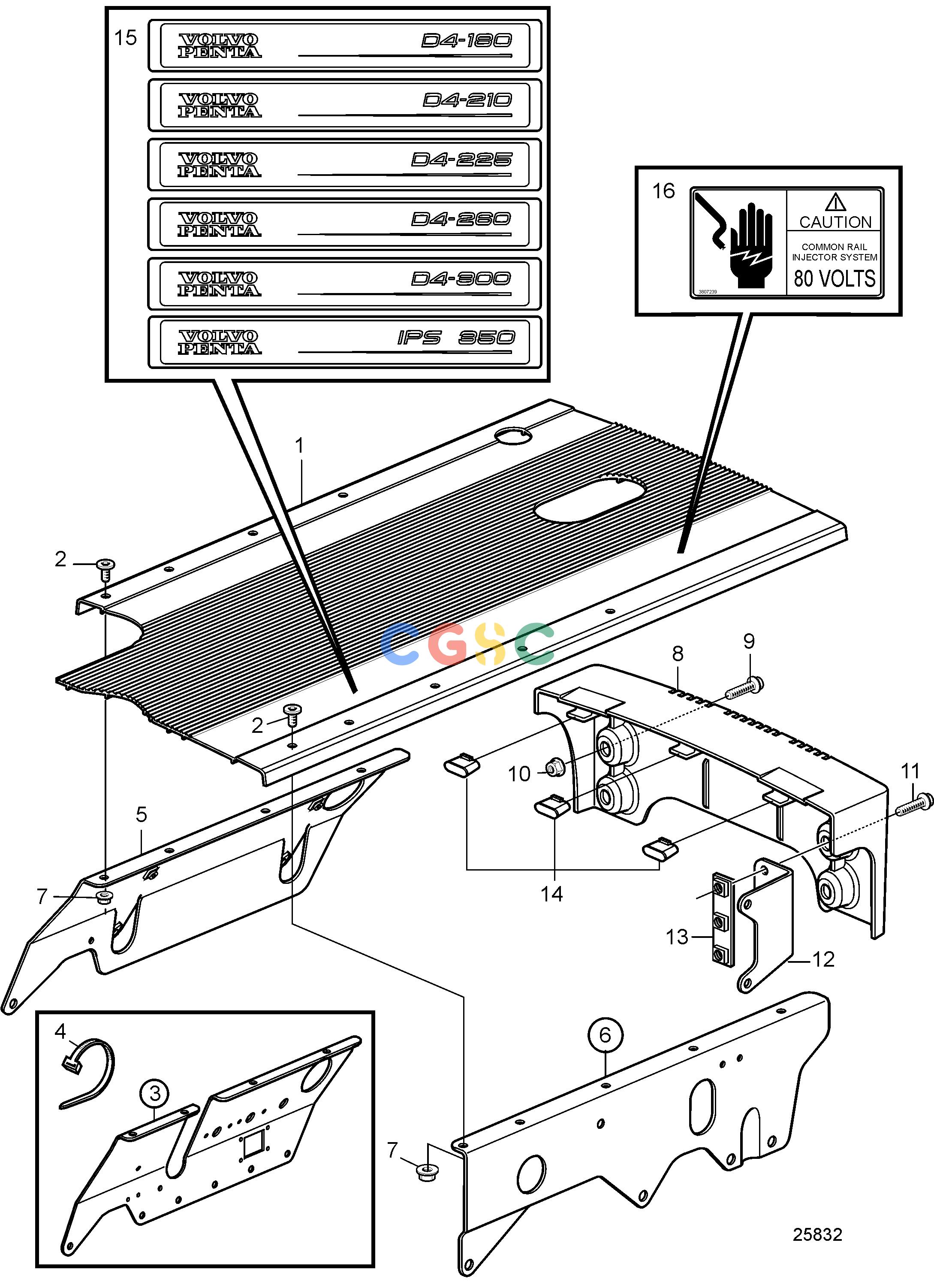

沃尔沃零件查询D4-180I-B; D4-180I-C; D4-180I-D; D4-180I-E; D4-210A-A; D4-225A-B; D4-210I-A; D4-210I-B; D4-225I-B; D4-225A-C; D4-225A-D; D4-225I-C; D4-225I-EngineProtecting CoverEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
145 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
889862
|
[1] |
Protecting cover
|
|
| 2. |
971319
|
[9] |
Six point socket scr
|
|
| 3. |
3841270
|
[1] |
Side support
|
S.B, SN-2004033780
|
| 4. |
948211
|
[2] |
Cable tie
|
|
| 5. |
21475793
|
[1] |
Support
|
S.B, SN2004033781-
|
| 6. |
3847311
|
[1] |
Support
|
P, (3808771)
|
| 7. |
|
|
|
|
| 8. |
3588528
|
[1] |
Protecting cover
|
(3584089)
|
| 9. |
946173
|
[2] |
Flange screw
|
|
| 10. |
945408
|
[2] |
Flange nut
|
|
| 11. |
946671
|
[2] |
Flange screw
|
|
| 12. |
3586068
|
[1] |
Bracket
|
|
| 13. |
3586070
|
[1] |
Nut retainer
|
|
| 14. |
3584091
|
[3] |
Support
|
|
| 15. |
3584215
|
[1] |
Decal
|
D4-180
|
| 15. |
3584161
|
[1] |
Decal
|
D4-210
|
| 15. |
3818691
|
[1] |
Decal
|
D4-225
|
| 15. |
3584216
|
[1] |
Decal
|
D4-260
|
| 15. |
3885340
|
[1] |
Decal
|
D4-300
|
| 15. |
3885110
|
[1] |
Decal
|
IPS 350
|
| 16. |
3807239
|
[1] |
Decal
|
|
