沃尔沃零件查询D4-180I-B; D4-180I-C; D4-180I-D; D4-180I-E; D4-210A-A; D4-225A-B; D4-210I-A; D4-210I-B; D4-225I-B; D4-225A-C; D4-225A-D; D4-225I-C; D4-225I-Fuel SystemFuel PumpEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
442 次

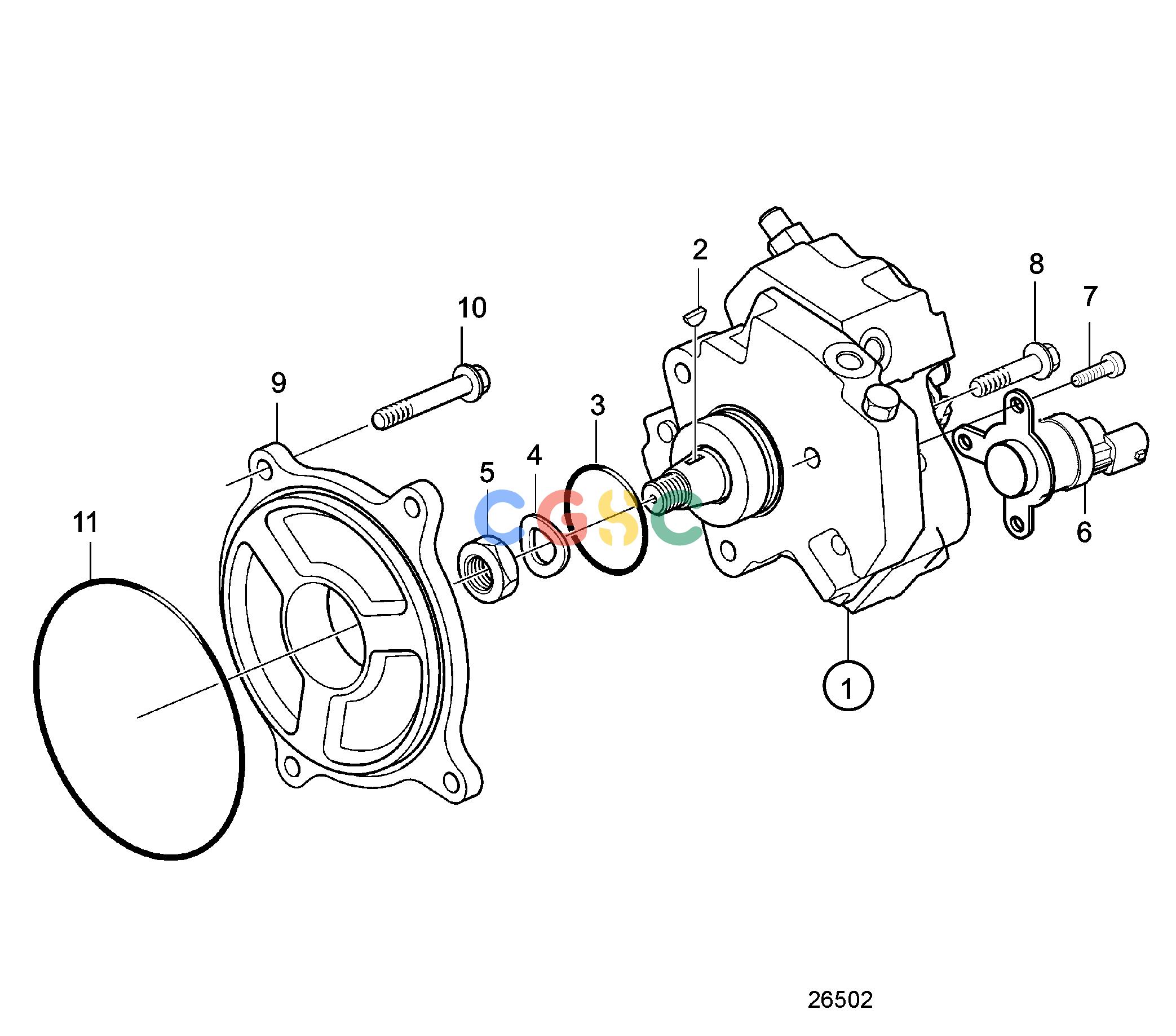

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3803633
|
[1] |
High-pressure pump,
|
|
| 2. |
243734
|
[1] |
Woodruff key
|
|
| 3. |
8631580
|
[1] |
O-ring
|
|
| 4. |
3588228
|
[1] |
Spring washer
|
|
| 5. |
3588229
|
[1] |
Hexagon nut
|
|
| 6. |
21945363
|
[1] |
Solenoid valve
|
|
| 7. |
959190
|
[3] |
Hex. socket screw
|
|
| 8. |
947760
|
[3] |
Flange screw
|
L=40mm
|
| 9. |
3885130
|
[1] |
Intermediate plate
|
|
| 10. |
965217
|
[4] |
Flange screw
|
L=65mm
|
| 11. |
948888
|
[1] |
O-ring
|
|
