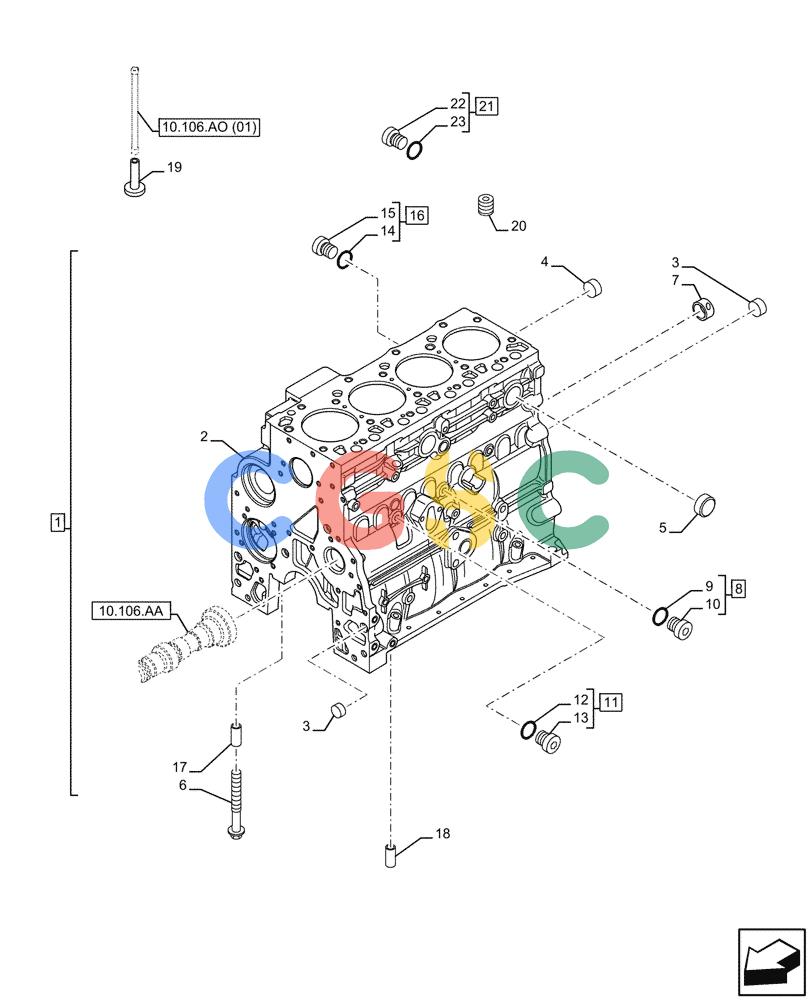

神钢零件查询(F4HFE4135 B003) - ENGINE 5802094949 84553225 TC4.90 and TC5.70 TIER4B (10/16-) (10.001.AB) - CRANKCASE Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
873 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 2. | NSS | [1] | NOT SOLD SEPARAT | CONCrankcase, Incl in 1 |
| 3. | 4895039 | [3] | EXPANSION PLUG,M17.73 | TOR |
| 4. | 4895038 | [4] | EXPANSION PLUG,M58.06 | TOR |
| 5. | 4895228 | [2] | EXPANSION PLUG,35.23mm x 7.94mm | TOR |
| 6. | 4891353 | [10] | SCREW,Flg Hd, M12 x 1.5 x 120 | TOR |
| 7. | 4895040 | [1] | BUSHING,54.39mm ID x 59.39mm OD x 25.4mm L | TOR |
| 8. | 4895605 | [2] | HEX SOCKET PLUG,M14 x 1.5 | TORASSY, Incl 9,10 |
| 9. | 4899115 | [1] | O-RING,2.2mm Thk x 11.3mm ID | TOR |
| 10. | NSS | [1] | NOT SOLD SEPARAT | CONPlug, Incl in 8 |
| 11. | 4899009 | [1] | PLUG,M10 x1 | TORASSY, Incl 12, 13 |
| 12. | 4899072 | [1] | O-RING,1.6mm Thk x 8.1mm ID | TOR |
| 13. | NSS | [1] | NOT SOLD SEPARAT | CONPlug, Incl in 11 |
| 14. | 4895393 | [2] | O-RING,2.2mm Thk x 15.3mm ID | TOR |
| 16. | 4895392 | [2] | HEX SOCKET PLUG,M18 x 1.5 | TORASSY, Incl 14, 15 |
| 17. | 4899026 | [4] | DOWEL,M18 x 10 | TOR |
| 18. | 4895049 | [2] | DOWEL,M16.05 x 10 | TOR |
| 19. | 4899803 | [8] | TAPPET | TOR Superseded by part number: 4891226 |
| 21. | 4895080 | [2] | HEX SOCKET PLUG,M22 x 1.5 | TORASSY, Incl 22, 23 |
| 22. | 4895078 | [1] | PIPE PLUG,1/2"-14 | TOR |
| 23. | 4895082 | [2] | O-RING,19.3mm ID x 2.2mm Width | TOR Superseded by part number: 2854072 |
