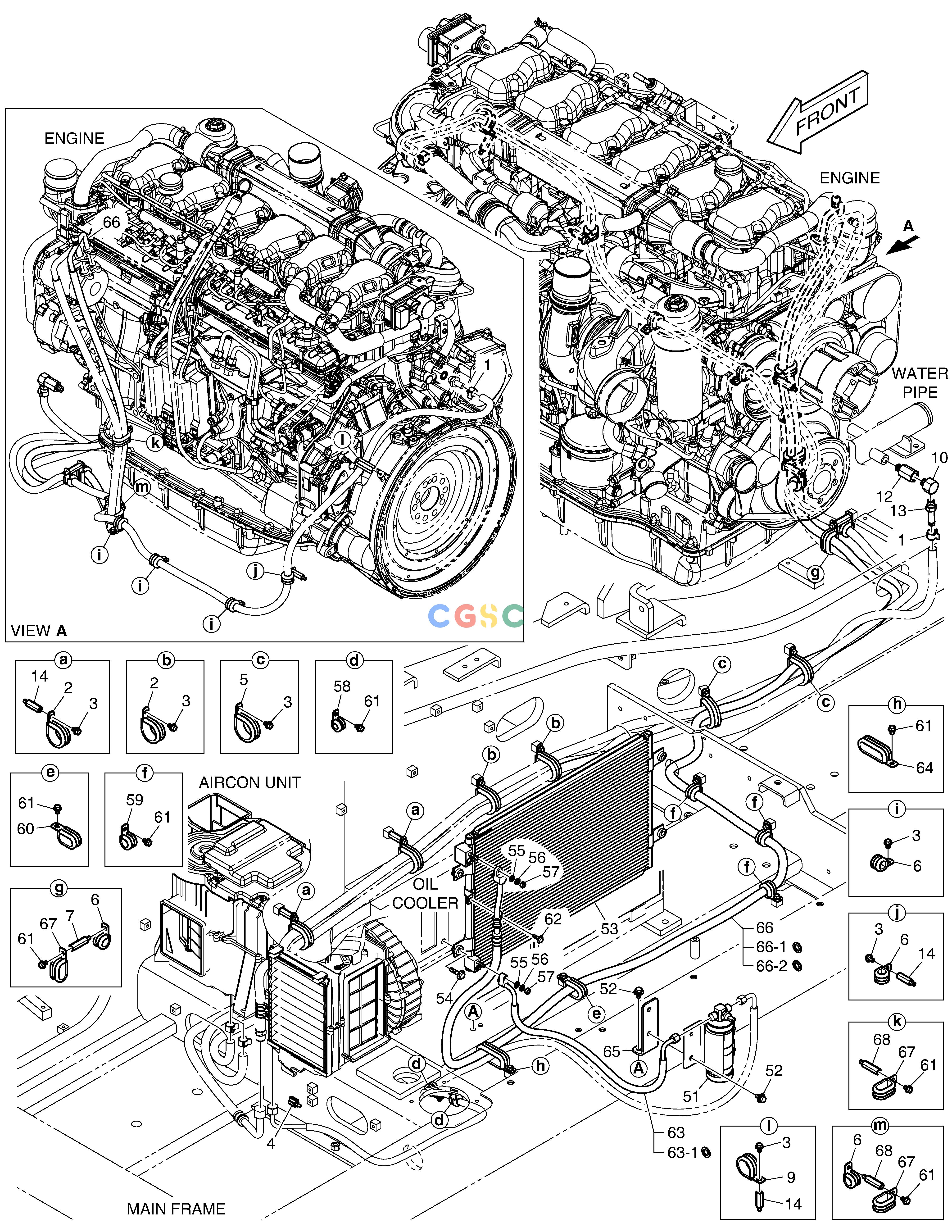

斗山零件查询AIRCONDITIONER(1) DX530LC-5(S/N:10001~10006) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
366 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
440213-00493
|
[-] |
|
|
| 1. |
S8470028
|
[2] |
CLAMP
|
|
| 1. |
DS2807026
|
[2] |
|
|
| 10. |
2181-1161A
|
[1] |
ADAPTER
|
|
| 12. |
2181-1475A
|
[1] |
|
|
| 13. |
DS2228010
|
[1] |
|
|
| 14. |
DS0026011
|
[4] |
|
|
| 2. |
124-00208D7
|
[4] |
CLIP
|
|
| 3. |
K1001029
|
[11] |
BOLT
|
|
| 4. |
547-00024A
|
[1] |
SENSOR
|
|
| 5. |
124-00208D11
|
[2] |
CLIP
|
|
| 51. |
2204-6039A
|
[1] |
RECEIVER DRIER
|
|
| 52. |
DS0025033
|
[4] |
BOLT
|
|
| 53. |
520-00004
|
[1] |
CONDENSER,AIR CON
|
|
| 54. |
DS0025069
|
[4] |
|
|
| 55. |
S5000313
|
[2] |
WASHER
|
|
| 56. |
S5102303
|
[2] |
. WASHER
|
|
| 57. |
S4012303
|
[2] |
NUT
|
|
| 58. |
124-00208D2
|
[2] |
CLAMP
|
|
| 59. |
124-00208D3
|
[3] |
CLIP
|
|
| 6. |
124-00208D3
|
[6] |
CLIP
|
|
| 60. |
124-00209D1
|
[1] |
CLIP
|
|
| 61. |
K1001029
|
[10] |
BOLT
|
|
| 62. |
DS0025056
|
[1] |
BOLT
|
|
| 63. |
420102-00543
|
[1] |
|
|
| 63-1. |
K1011388
|
[2] |
O-RING
|
|
| 64. |
124-00209D8
|
[1] |
CLIP
|
|
| 65. |
110406-00569
|
[1] |
|
|
| 66. |
420102-00369
|
[1] |
|
|
| 66-1. |
K1011384
|
[1] |
O-RING(CONDENSER)
|
|
| 66-2. |
2180-6088
|
[1] |
O-RING(COMP)
|
|
| 67. |
124-00209D4
|
[3] |
CLIP
|
|
| 68. |
2120-2187
|
[2] |
BOLT
|
|
| 7. |
2120-2187
|
[1] |
BOLT
|
|
| 9. |
124-00208D10
|
[1] |
CLIP
|
|
