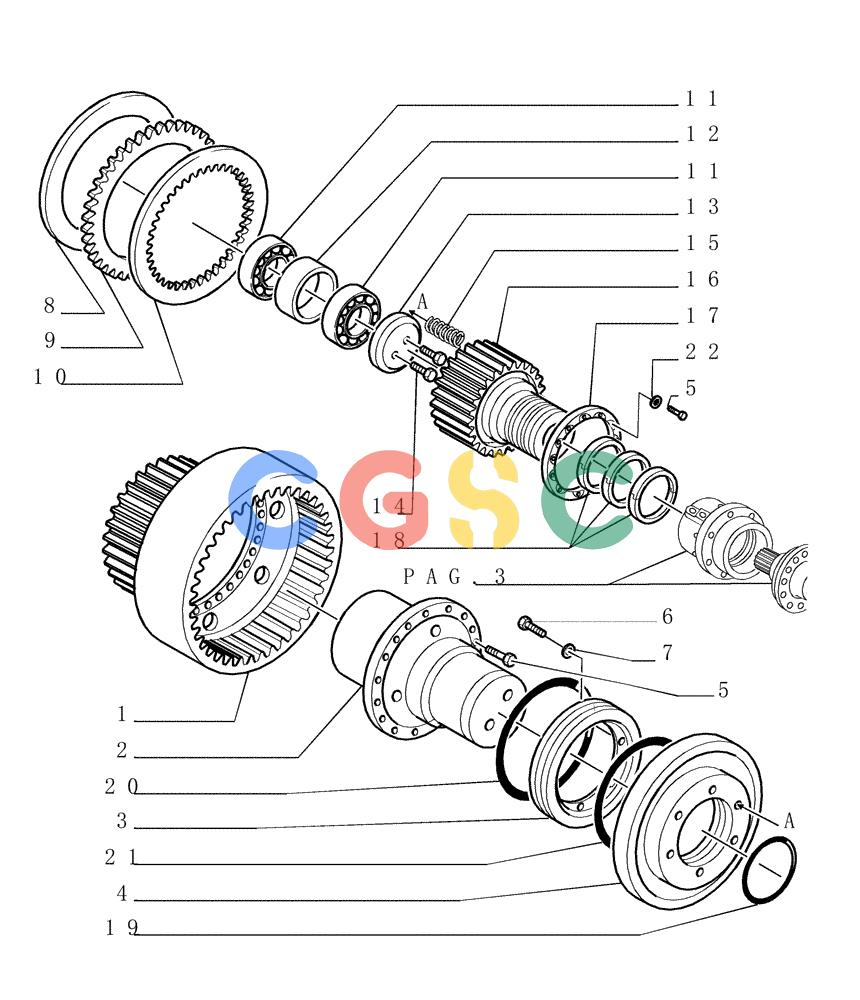

纽荷兰零件查询(DC180LT) - CRAWLER DOZER (5/00-) (1.266[06]) - REAR TRANSMISSION - STEERING CLUTCHES - VERSION (01) New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
441 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76040574 | [2] | PISTON | LEC |
| 2. | 76040749 | [2] | CLUTCH INPUT SHAFT | LEC |
| 3. | 76040756 | [2] | CLUTCH PRESSURE PLATE | LEC |
| 4. | 76040758 | [2] | PISTON | LEC |
| 5. | 11112431 | [56] | SCREW,Hex, M12 x 30mm, Cl 10.9, Full Thd | LEC Superseded by part number: 87015736 |
| 6. | 16043631 | [12] | SCREW,Hex, M8 x 25mm, Cl 10.9, Full Thd | BHB Superseded by part number: 43234 |
| 7. | 14496531 | [12] | WASHER,8.4mm ID x 17mm OD x 1.6mm Thk | LEC Superseded by part number: 86624184 |
| 8. | 76046789 | [2] | CLUTCH DRIVING PLATE,281mm OD | LEC |
| 9. | 79066329 | [14] | CLUTCH PLATE | LEC- DRIVEN |
| 10. | 589025 | [14] | CLUTCH DRIVING PLATE | LEC- DRIVE |
| 11. | 76040751 | [4] | BALL BEARING,65 mm ID x 120 mm OD x 23 mm | LEC Superseded by part number: 26794670 |
| 12. | 76040752 | [2] | SPACER | LEC |
| 13. | 76040750 | [2] | DISC | LEC |
| 14. | 11106031 | [4] | BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9 | LEC |
| 15. | 76040757 | [12] | SPRING | LEC |
| 16. | 76040746 | [2] | HUB | LEC |
| 17. | 76040755 | [2] | DISC | LEC |
| 18. | 76040828 | [6] | SEALING RING | LEC- IN ALTERNATIVE Superseded by part number: 76040791 |
| 18. | 76040791 | [6] | SEALING RING,104.6mm ID x 114.03mm OD x 4mm Thk | LECSEALRING - IN ALTERNATIVE |
| 19. | 14482281 | [2] | O-RING,-360, Cl 7, 5.85" ID x .210" Thk | LEC Superseded by part number: 14482280 |
| 20. | 14467681 | [2] | O-RING,152mm ID x 6.262" OD x 3.53mm | LEC(M152 ID x 3.53 Thk) |
| 21. | 14482981 | [2] | O-RING,17.955" ID x 0.21" Width | LEC |
| 22. | 14496731 | [24] | WASHER,M12 x 24 x 2.5 Thk | LEC Superseded by part number: 895-11012 |
