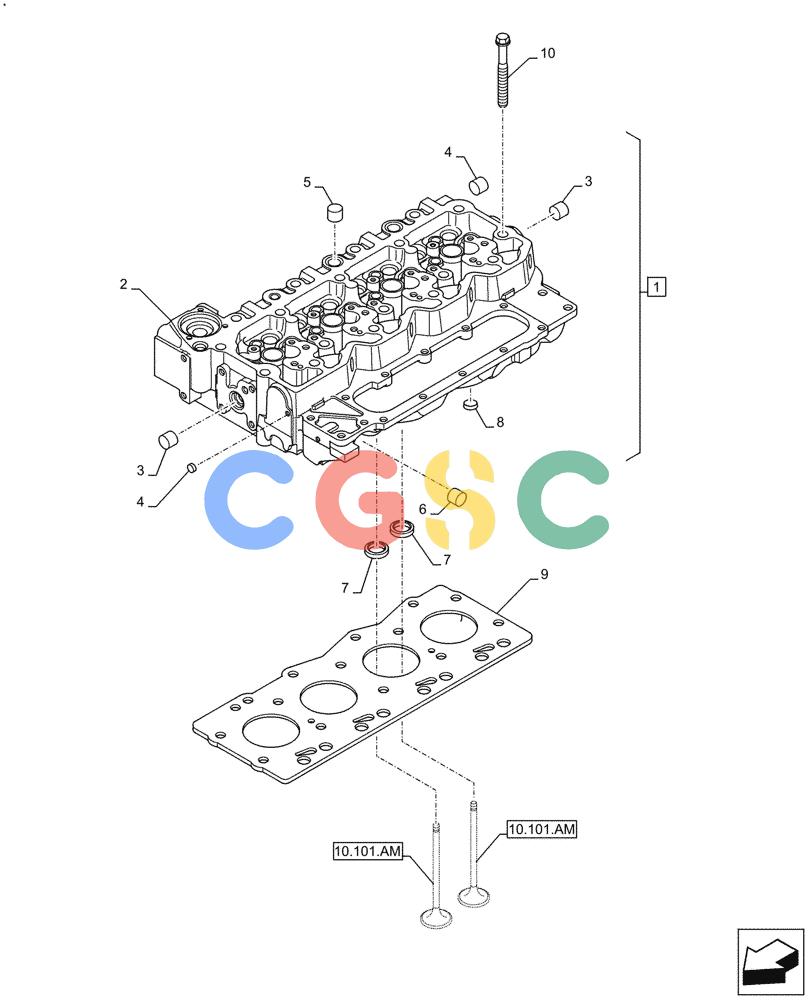

神钢零件查询(F4HFE4135 B003) - ENGINE 5802094949 84553225 TC4.90 and TC5.70 TIER4B (10/16-) (10.101.AA) - CYLINDER HEAD Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
313 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 2. | 2831266 | [1] | CYLINDER HEAD,4 Cylinders | TOR |
| 3. | 4895085 | [18] | EXPANSION PLUG,25.74mm | TOR |
| 4. | 4895406 | [10] | EXPANSION PLUG,9.8mm OD | TOR |
| 5. | 4895089 | [14] | PLUG,0.886" L | TOR |
| 6. | 4895407 | [2] | EXPANSION PLUG,38.28mm OD | TOR |
| 7. | 4897578 | [8] | VALVE SEAT,28mm ID x 34.9mm OD x 5.75mm L | TOR |
| 7. | 4897106 | [8] | VALVE SEAT,28mm ID x 34.9mm OD x 5.75mm L | TOR |
| 8. | 4893036 | [3] | PIPE PLUG,3/4"-14 NPTF | TOR Superseded by part number: 2854866 |
| 10. | 4891024 | [8] | BOLT,Flng, M12 x 1.75 x 130mm | TOR |
| 10. | 4891025 | [10] | SCREW,Flng, M12 x 1.75 x 150mm | TOR |
