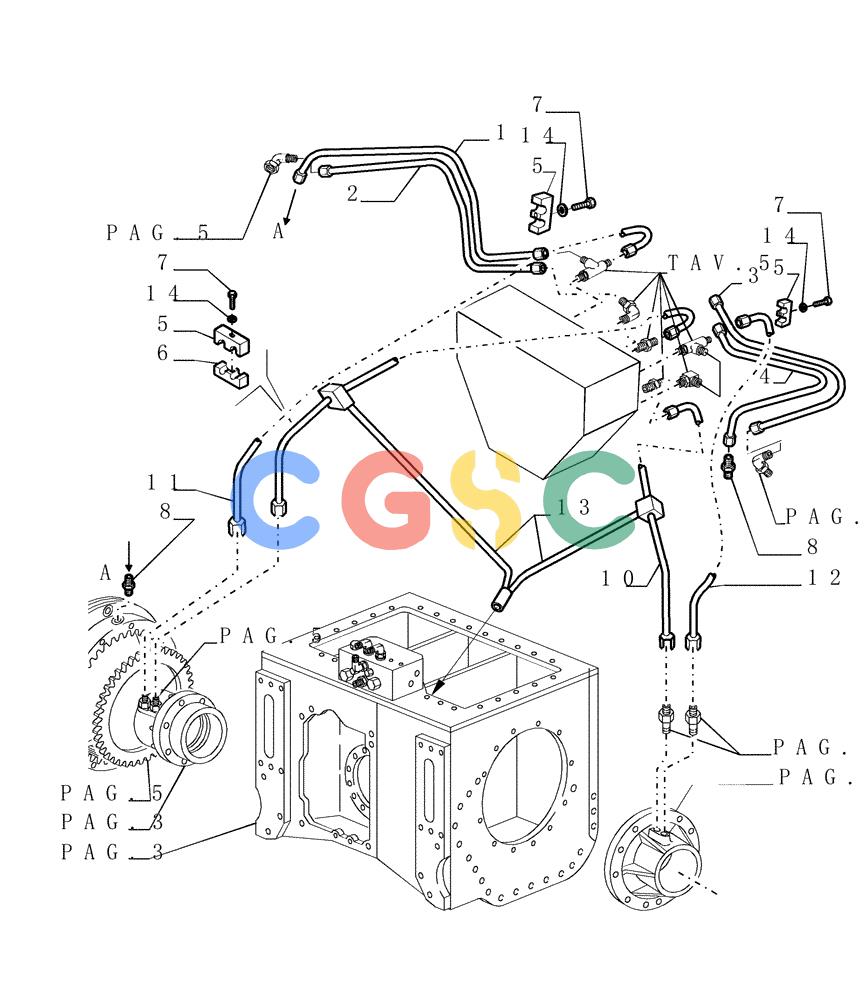

纽荷兰零件查询(DC180LT) - CRAWLER DOZER (5/00-) (1.266[09]) - REAR TRANSMISSION - PIPING - VERSION (01) New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
589 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76040727 | [1] | BRAKE LINE | LEC- RIGHT |
| 2. | 76040763 | [1] | RIGID TUBE | LEC- RIGHT |
| 3. | 76072228 | [1] | BRAKE LINE | LEC- LEFT |
| 4. | 76072229 | [1] | BRAKE LINE | LEC- LEFT |
| 5. | 76040682 | [4] | CLAMP | LEC |
| 6. | 76040681 | [2] | FIXING PLATE | LEC- LOWER |
| 7. | 16043831 | [4] | SCREW,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd | BHB Superseded by part number: |
| 8. | 79066938 | [2] | FITTING | LEC10 |
| 9. | 76040761 | [1] | RIGID TUBE | LEC- RIGHT |
| 10. | 76040760 | [1] | RIGID TUBE | LEC- LEFT |
| 11. | 76040765 | [1] | RIGID TUBE | LEC- RIGHT |
| 12. | 76040764 | [1] | RIGID TUBE | LEC- LEFT |
| 13. | 76046778 | [1] | RIGID TUBE,9 mm ID, 12 mm OD, 210 mm Length | LEC |
| 14. | 14496531 | [4] | WASHER,8.4mm ID x 17mm OD x 1.6mm Thk | LEC Superseded by part number: 86624184 |
