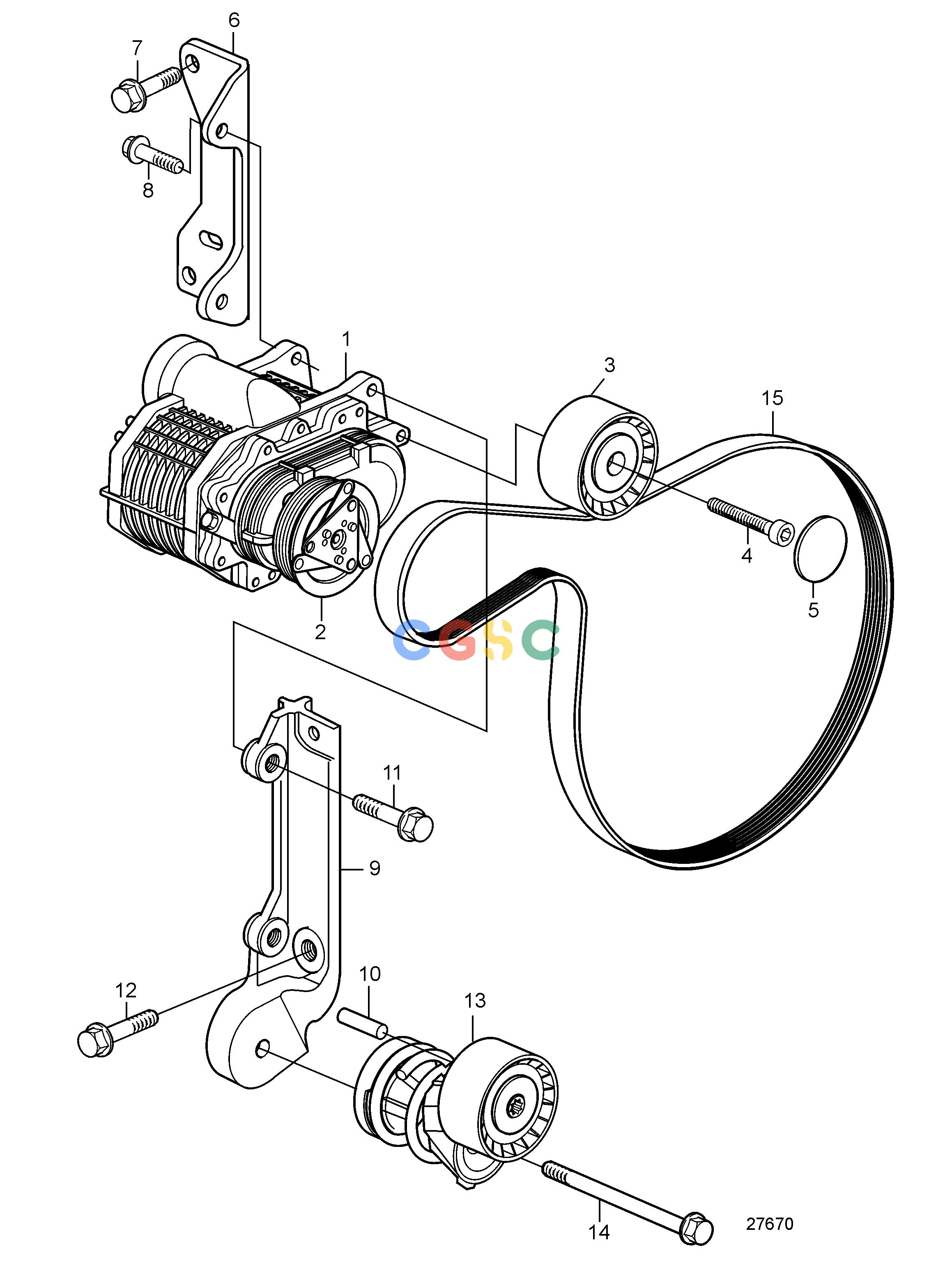

沃尔沃零件查询D4-180I-B; D4-180I-C; D4-180I-D; D4-180I-E; D4-210A-A; D4-225A-B; D4-210I-A; D4-210I-B; D4-225I-B; D4-225A-C; D4-225A-D; D4-225I-C; D4-225I-Intake and Exhaust SystemCompressorEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
219 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3803850
|
[1] |
Compressor, exch
|
|
| 2. |
3581724
|
[1] |
Solenoid clutch
|
12V, Shims are included
|
| 3. |
3848896
|
[1] |
Idler pulley
|
SN-2004017297, Replaced by 21280913
|
| 3. |
21280913
|
[1] |
Idler pulley
|
SN-2004017297
|
| 3. |
3847482
|
[1] |
Idler pulley
|
SN2004017298-
|
| 4. |
959224
|
[1] |
Hex. socket screw
|
|
| 5. |
|
|
|
|
| 6. |
3582971
|
[1] |
Bracket
|
|
| 7. |
946472
|
[2] |
Flange screw
|
|
| 8. |
946329
|
[2] |
Flange screw
|
|
| 9. |
3588069
|
[1] |
Bracket
|
|
| 10. |
950542
|
[1] |
Pin
|
|
| 11. |
965186
|
[2] |
Flange screw
|
|
| 12. |
946472
|
[2] |
Flange screw
|
|
| 13. |
21678750
|
[1] |
Belt tensioner
|
|
| 14. |
947790
|
[1] |
Flange screw
|
|
| 15. |
21407026
|
[1] |
Belt
|
|
