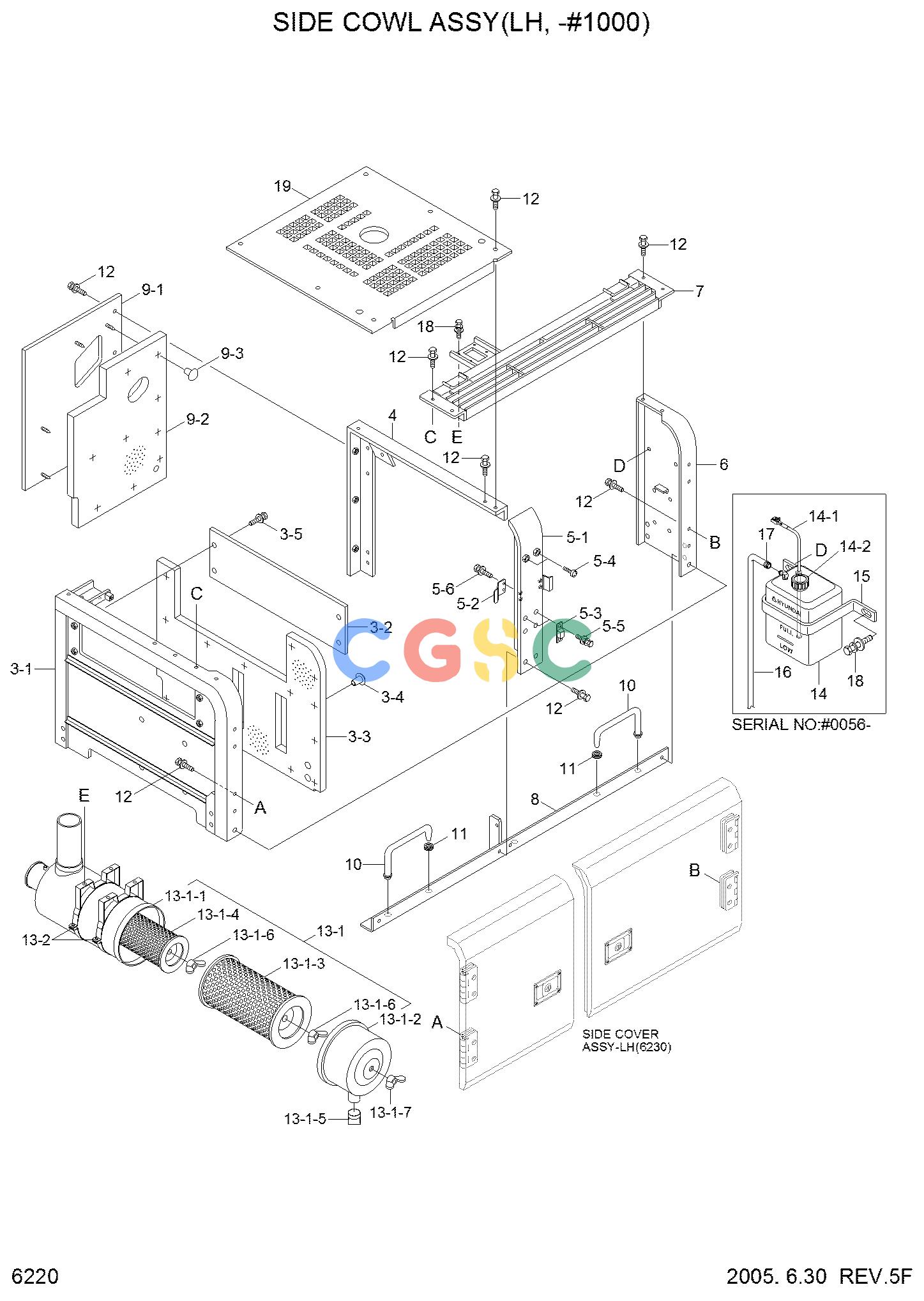

现代零件查询R110-7A SIDE COVER ASSY(LH)EPC Hyundai
广数供应链运营团队, 14 02月, 2025，浏览：
242 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
@
|
[1] |
SIDE COWL ASSY-LH
|
|
| 1. |
73N3-52100
|
[1] |
SIDE COVER ASSY-LH
|
|
| 1-1. |
73N3-52110
|
[1] |
SIDE COVER WA-LH
|
|
| 1-2. |
73N3-52180
|
[1] |
SPONGE
|
|
| 1-3. |
74N8-52520
|
[1] |
CATCH ASSY
|
|
| 1-4. |
71EE-53530
|
[1] |
STOPPER-A
|
|
| 1-5. |
71EM-51580
|
[12] |
CAP-STUD BOLT
|
|
| 1-6. |
S681-100400
|
[1] |
GROMMET
|
|
| 1-7. |
S772-024700
|
[1] |
WEATHER STRIP
|
|
| 1-8. |
S035-061526
|
[2] |
BOLT-W/WASHER
|
|
| 2. |
73N3-82100
|
[1] |
SIDE COVER ASSY-LH
|
|
| 2-1. |
73N3-82110
|
[1] |
SIDE COVER ASSY-LH
|
|
| 2-2. |
73N3-82180
|
[1] |
SPONGE
|
|
| 2-3. |
74N8-52520
|
[1] |
CATCH ASSY
|
|
| 2-4. |
71EE-53530
|
[1] |
STOPPER-A
|
|
| 2-5. |
71EM-51580
|
[11] |
CAP-STUD BOLT
|
|
| 2-6. |
S681-100400
|
[1] |
GROMMET
|
|
| 2-7. |
S772-024700
|
[1] |
WEATHER STRIP
|
|
| 2-8. |
S035-061526
|
[2] |
BOLT-W/WASHER
|
|
| 3. |
73N3-92100
|
[1] |
SIDE COVER ASSY-LH
|
|
| 3-1. |
73N3-92110
|
[1] |
S/COVER ASSY LH
|
|
| 3-2. |
74N8-52520
|
[1] |
CATCH ASSY
|
|
| 3-3. |
71EE-53530
|
[1] |
STOPPER-A
|
|
| 3-4. |
S681-100400
|
[1] |
GROMMET
|
|
| 3-5. |
S772-024700
|
[1] |
WEATHER STRIP
|
|
| 3-6. |
S035-061526
|
[2] |
BOLT-W/WASHER
|
|
