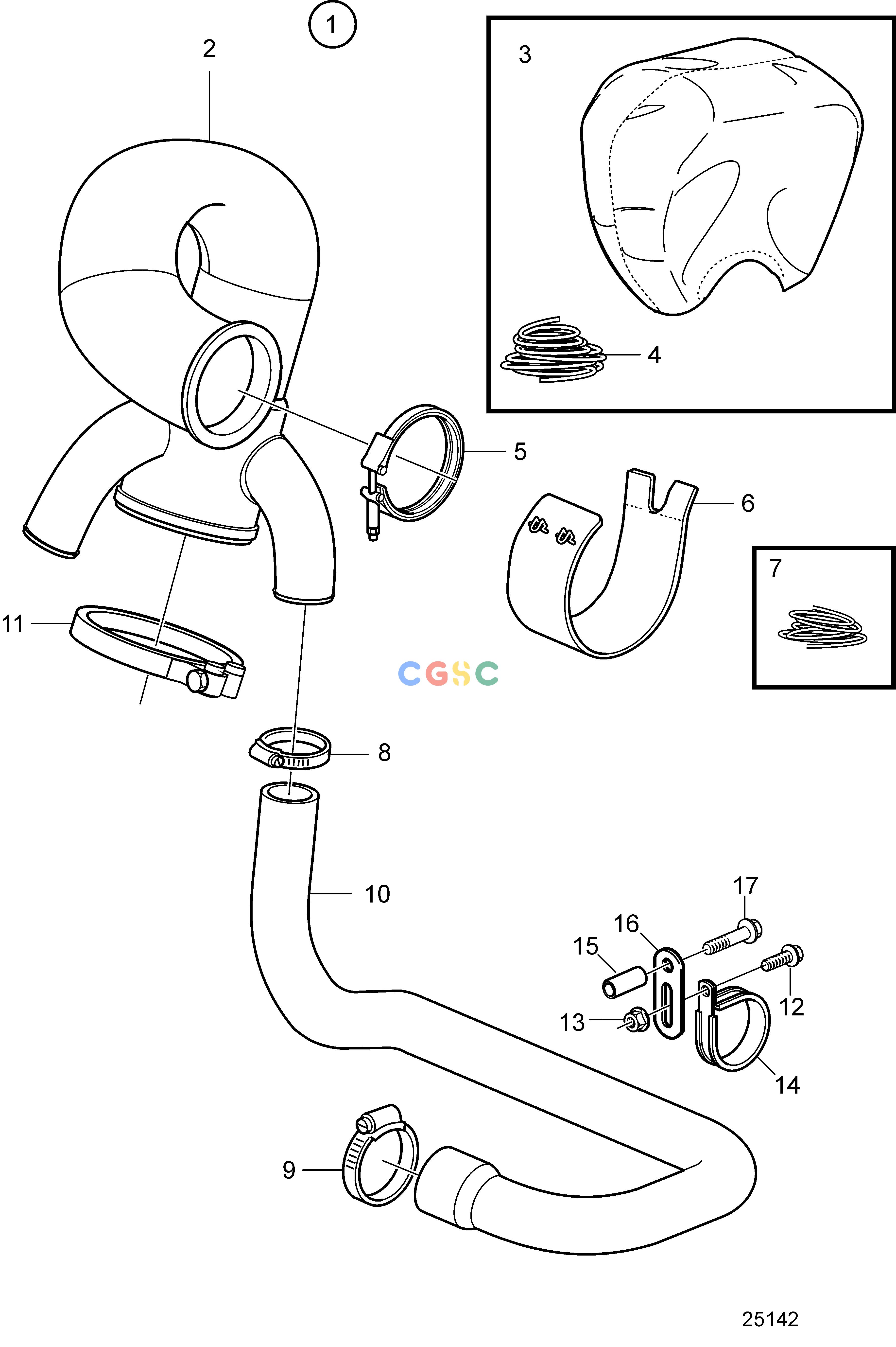

沃尔沃零件查询D4-180I-B; D4-180I-C; D4-180I-D; D4-180I-E; D4-210A-A; D4-225A-B; D4-210I-A; D4-210I-B; D4-225I-B; D4-225A-C; D4-225A-D; D4-225I-C; D4-225I-Intake and Exhaust SystemExhaust Riser Kit, AQEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
769 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21187490
|
[1] |
Exhaust riser
|
|
| 2. |
3840608
|
[1] |
Exhaust riser
|
|
| 3. |
3584485
|
[1] |
Insulation
|
|
| 4. |
941710
|
[1] |
Locking wire
|
1000mm
|
| 5. |
21325765
|
[1] |
V-clamp
|
|
| 6. |
3817198
|
[1] |
Insulation
|
|
| 7. |
941710
|
[1] |
Locking wire
|
400mm
|
| 8. |
22274885
|
[1] |
Hose clamp
|
|
| 9. |
961671
|
[1] |
Hose clamp
|
|
| 10. |
40005132
|
[1] |
Hose
|
|
| 11. |
3817484
|
[1] |
Hose clamp
|
|
| 12. |
946440
|
[1] |
Flange screw
|
|
| 13. |
945408
|
[1] |
Flange nut
|
|
| 14. |
973944
|
[1] |
Clamp
|
|
| 15. |
980935
|
[1] |
Spacer sleeve
|
|
| 16. |
965534
|
[1] |
Bracket
|
|
| 17. |
973924
|
[1] |
Flange screw
|
|
