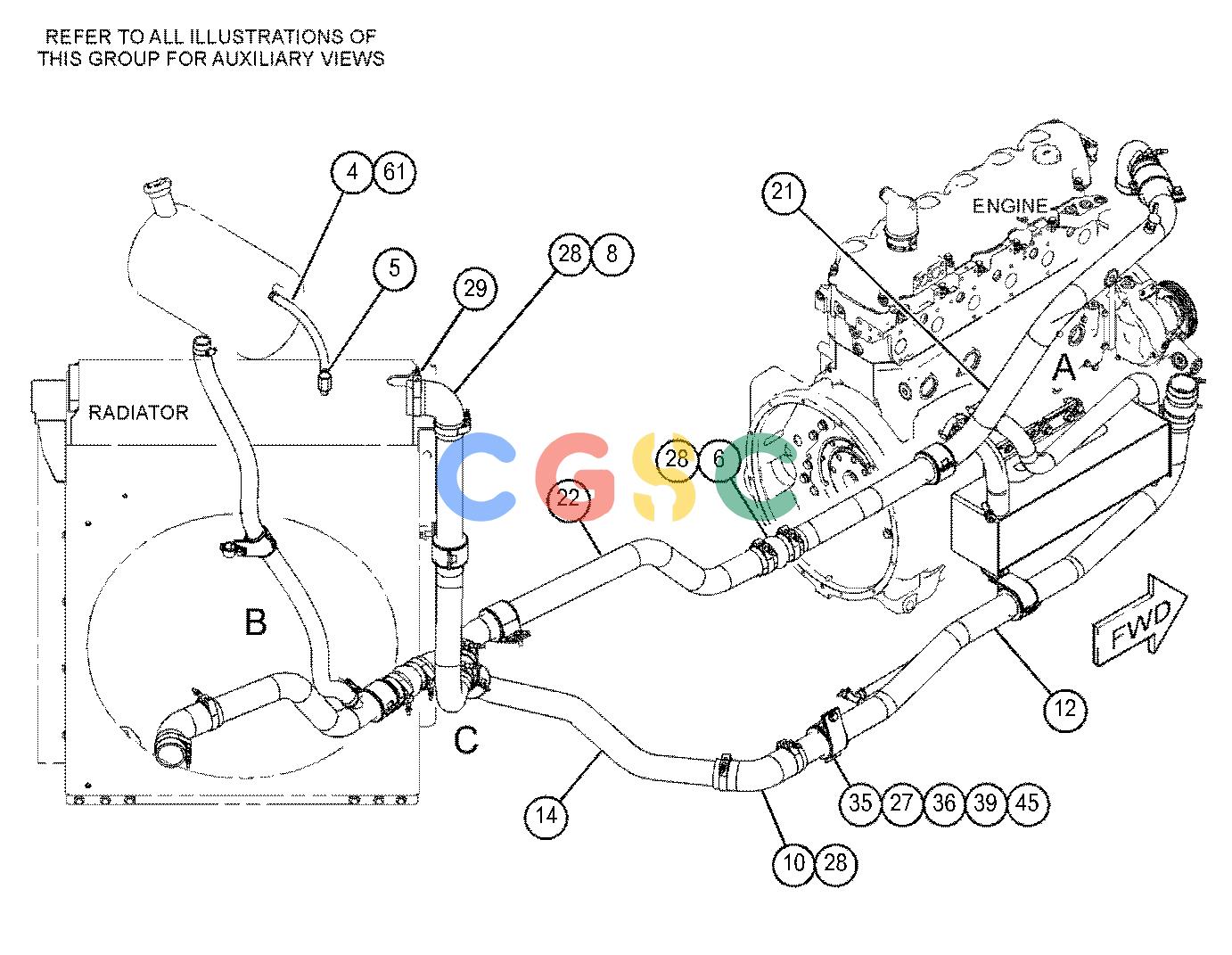

卡特零件查询（725C） 364-8690: LINES GP-COOLANT
广数供应链运营团队, 14 02月, 2025，浏览：
997 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6U-2703 | [2] | BRACKET-ANGLE | |
| 2. | 8F-8151 | [1] | VALVE-SHUTOFF(ENGINE COOLANT) | |
| 3. | 8T-0154 | [3] | CLAMP-HOSE | |
| 4. | 9X-2133E | | HOSE(40-CM) | |
| 5. | 247-5367 | [1] | ELBOW AS | |
| 6. | 342-6299 | [4] | HOSE | |
| 7. | 342-8060 | [1] | ELBOW | |
| 8. | 361-3770 | [1] | ELBOW | |
| 9. | 450-3461 | [1] | COOLER AS-TRANSMISSION OIL | |
| 10. | 387-8169 | [2] | ELBOW | |
| 11. | 451-5779 | [1] | PLATE AS | |
| | 8T-3490M | [9] | NUT-WELD(M10X1.5-THD) | |
| | 194-7882 | [2] | SPACER(14.8X28X16-MM THK) | |
| 12. | 426-2475 | [1] | TUBE AS | |
| 13. | 426-2476 | [1] | TUBE AS | |
| 14. | 426-2478 | [1] | TUBE | |
| 16. | 426-2604 | [1] | BRACKET AS | |
| | 8T-3490M | [1] | NUT-WELD(M10X1.5-THD) | |
| 17. | 439-2549 | [1] | BRACKET | |
| 18. | 446-1605 | [1] | HOSE | |
| 19. | 446-1606 | [1] | HOSE | |
| 20. | 446-1608 | [2] | TUBE AS | |
| 21. | 447-0554 | [1] | TUBE AS | |
| 22. | 447-0557 | [1] | TUBE | |
| 23. | 447-0558 | [1] | TUBE | |
| 24. | 148-8411 | [1] | PLUG AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 9S-4185 | [1] | PLUG(3/4-16-THD) | |
| 25. | 154-9024 | [1] | VALVE-SAMPLING(ENGINE COOLANT) | |
| 26. | 157-0670 | [1] | CAP-DUST | |
| 27. | 193-2120 | [8] | GROMMET | |
| 28. | 208-6054 | [15] | CLAMP-T BOLT | |
| 29. | 209-4578 | [1] | CLAMP-T BOLT | |
| 30. | 053-0558 | [1] | CLIP | |
| 31. | 300-6036 | [2] | CLAMP-BAND | |
| 32. | 3U-2428 | [1] | CLAMP-PIPE | |
| 35. | 6V-1867 | [8] | CLIP(SLOT) | |
| 36. | 6V-1868 | [8] | CLIP(TAB) | |
| 37. | 7X-2537M | [4] | BOLT(M8X1.25X35-MM) | |
| 38. | 7X-2552M | [2] | BOLT(M16X2X30-MM) | |
| 39. | 7X-7729 | [7] | WASHER(11X25X3-MM THK) | |
| 40. | 8T-4121 | [9] | WASHER-HARD(11X21X2.5-MM THK) | |
| 41. | 8T-4133M | [4] | NUT(M10X1.5-THD) | |
| 42. | 8T-4136M | [2] | BOLT(M10X1.5X25-MM) | |
| 43. | 8T-4139M | [1] | BOLT(M12X1.75X30-MM) | |
| 44. | 8T-4184M | [2] | BOLT(M12X1.75X45-MM) | |
| 45. | 8T-4195M | [8] | BOLT(M10X1.5X30-MM) | |
| 46. | 8T-4196M | [2] | BOLT(M10X1.5X35-MM) | |
| 47. | 8T-4223 | [3] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 48. | 8T-4224 | [8] | WASHER-HARD(8.8X16X2-MM THK) | |
| 49. | 8T-4908M | [4] | BOLT(M8X1.25X25-MM) | |
| 50. | 8T-4983 | [2] | CLAMP-HOSE | |
| 51. | 8T-5917 | [2] | SEAL-O-RING | |
| 52. | 8T-6703 | [2] | CLAMP-HOSE | |
| 53. | 9X-8257 | [2] | WASHER(17.5X30X3.5-MM THK) | |
| 54. | 415-6334E | | HOSE(50-CM) | |
| 55. | 371-8113E | | HOSE(126-CM) | |
| 56. | 198-4777 | [8] | WASHER-HARD(11X25X10-MM THK) | |
| 57. | 8T-4186M | [8] | BOLT(M10X1.5X40-MM) | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
