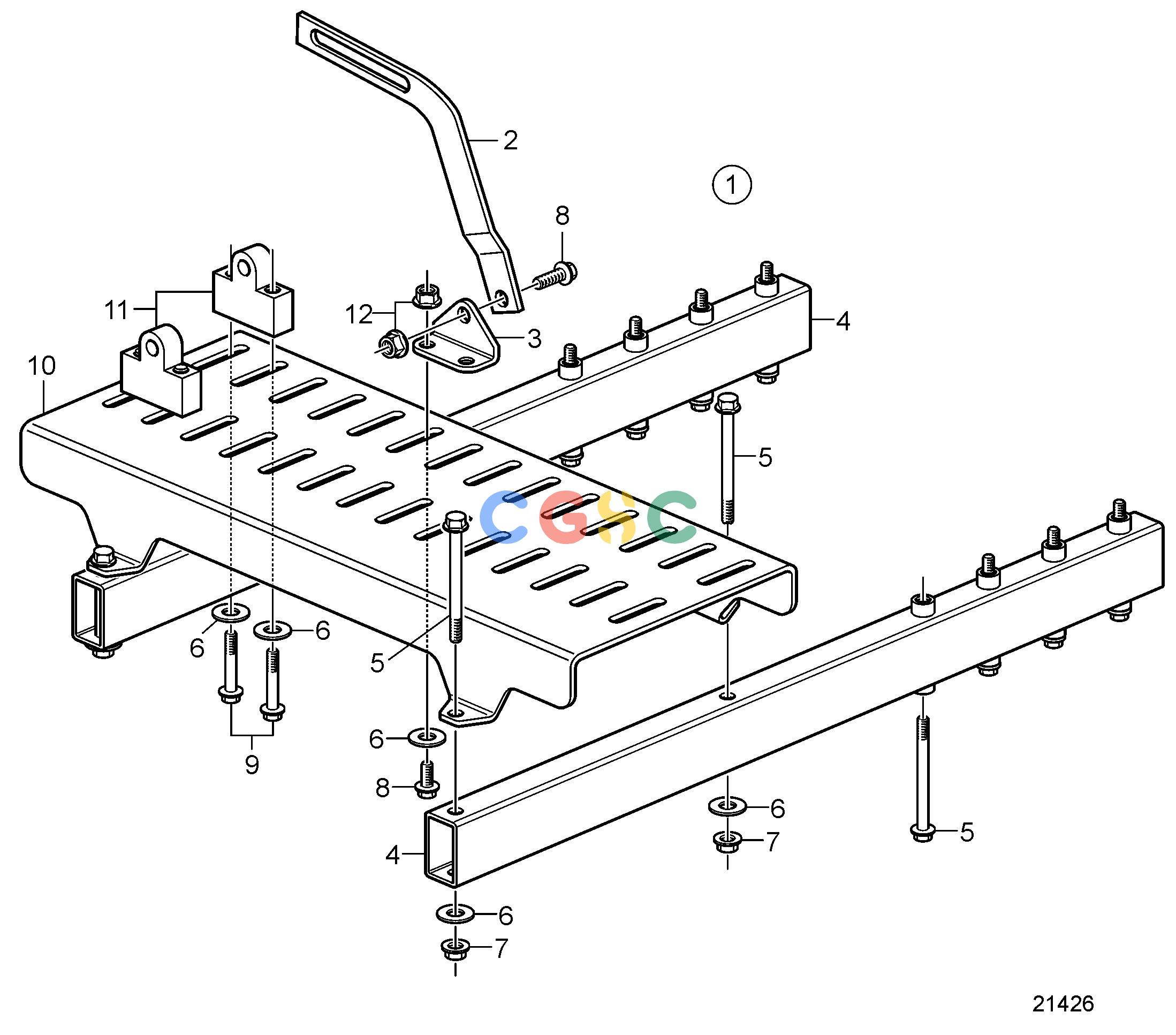

沃尔沃零件查询D4-180I-B; D4-180I-C; D4-180I-D; D4-180I-E; D4-210A-A; D4-225A-B; D4-210I-A; D4-210I-B; D4-225I-B; D4-225A-C; D4-225A-D; D4-225I-C; D4-225I-Miscellaneous EquipmentUniversal BracketEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
527 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3584501
|
[1] |
Universal bracket
|
|
| 2. |
845021
|
[2] |
Tensioner
|
|
| 3. |
858177
|
[4] |
Bracket
|
|
| 4. |
3807983
|
[2] |
Bracket
|
|
| 5. |
965182
|
[12] |
Flange screw
|
|
| 6. |
948880
|
[10] |
Washer
|
|
| 7. |
948645
|
[4] |
Flange lock nut
|
|
| 8. |
946173
|
[6] |
Flange screw
|
|
| 9. |
947760
|
[4] |
Flange screw
|
|
| 10. |
3807984
|
[1] |
Bracket
|
|
| 11. |
3808661
|
[2] |
Support
|
|
| 12. |
945408
|
[6] |
Flange nut
|
|
