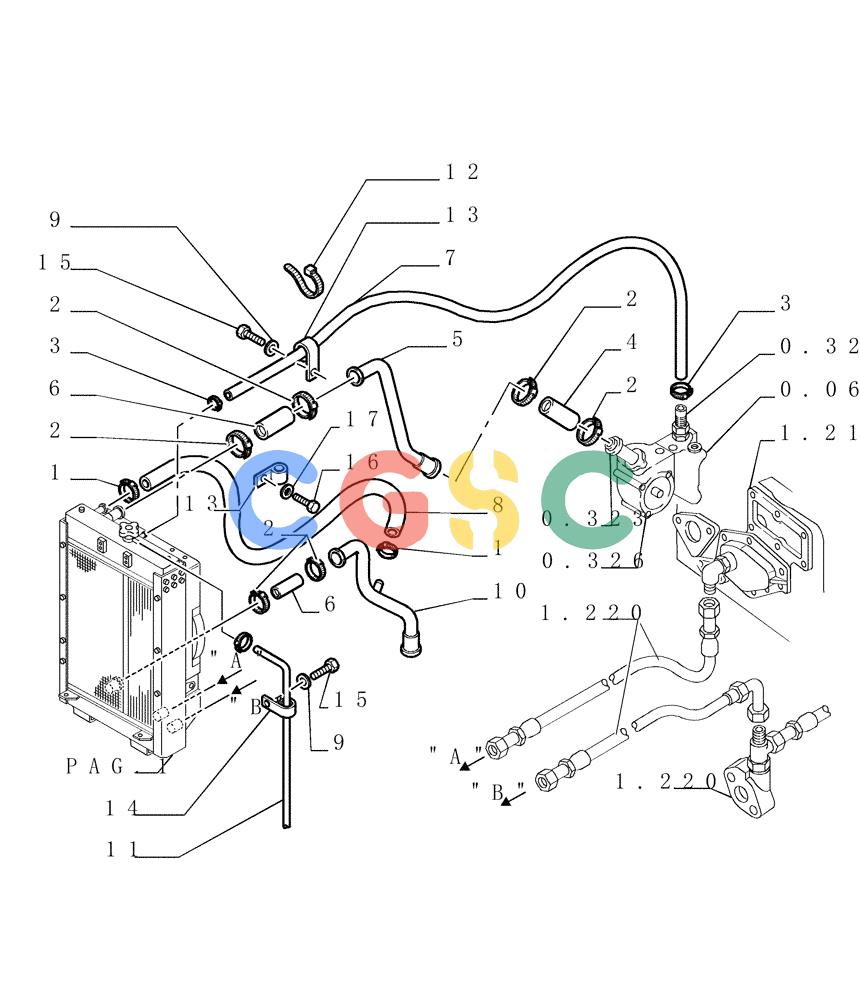

纽荷兰零件查询(DC180LT) - CRAWLER DOZER (5/00-) (0.550[03]) - ENGINE COOLING SYSTEM - PIPING New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
909 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79083843 | [2] | HOSE CLAMP,M20-35 | LEC Superseded by part number: 13000690 |
| 2. | 79083847 | [6] | HOSE CLAMP,M50-70 | LEC |
| 3. | 79084753 | [2] | HOSE CLIP,M10-18 | LEC |
| 4. | 79106868 | [1] | HOSE,50.00 mm ID x 95.00 mm | LEC Superseded by part number: 78100224 |
| 5. | 76046697 | [1] | TUBE | LEC |
| 6. | 76039648 | [2] | HOSE,57.00 mm ID x 90.00 mm | LEC |
| 7. | 76046752 | [1] | HOSE,10.00 mm ID x 850.00 mm | LEC |
| 8. | 76052928 | [1] | HOSE,25.00 mm ID x 1350.00 mm | LEC Superseded by part number: 78100260 |
| 9. | 14496531 | [4] | WASHER,8.4mm ID x 17mm OD x 1.6mm Thk | LEC Superseded by part number: 86624184 |
| 10. | 76046698 | [1] | TUBE | LEC |
| 11. | 76052913 | [1] | HOSE,8.00 mm ID x 1600.00 mm | LEC Superseded by part number: 78100213 |
| 12. | 4982514 | [2] | CABLE TIE | LEC370 Superseded by part number: 87615202 |
| 13. | 10448890 | [3] | CLAMP,36mm, Coat, P Type | LEC36 Superseded by part number: |
| 14. | 10450490 | [3] | CLAMP,16mm, Coat, 9mm Bolt Hole, P Type | LEC9mm hole dia. Superseded by part number: |
| 15. | 16043631 | [2] | SCREW,Hex, M8 x 25mm, Cl 10.9, Full Thd | BHB Superseded by part number: 43234 |
| 16. | 16043231 | [1] | SCREW,Hex, M8 x 16mm, Cl 10.9, Full Thd | LEC |
| 17. | 12645031 | [1] | WASHER,8.45mm ID x 21mm OD x 3mm Thk | LEC |
