沃尔沃零件查询D4-180I-B; D4-180I-C; D4-180I-D; D4-180I-E; D4-210A-A; D4-225A-B; D4-210I-A; D4-210I-B; D4-225I-B; D4-225A-C; D4-225A-D; D4-225I-C; D4-225I-Steering SystemMounting Kit DPH, with Electronic Steering, Main Station, EVC-C3EPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
897 次

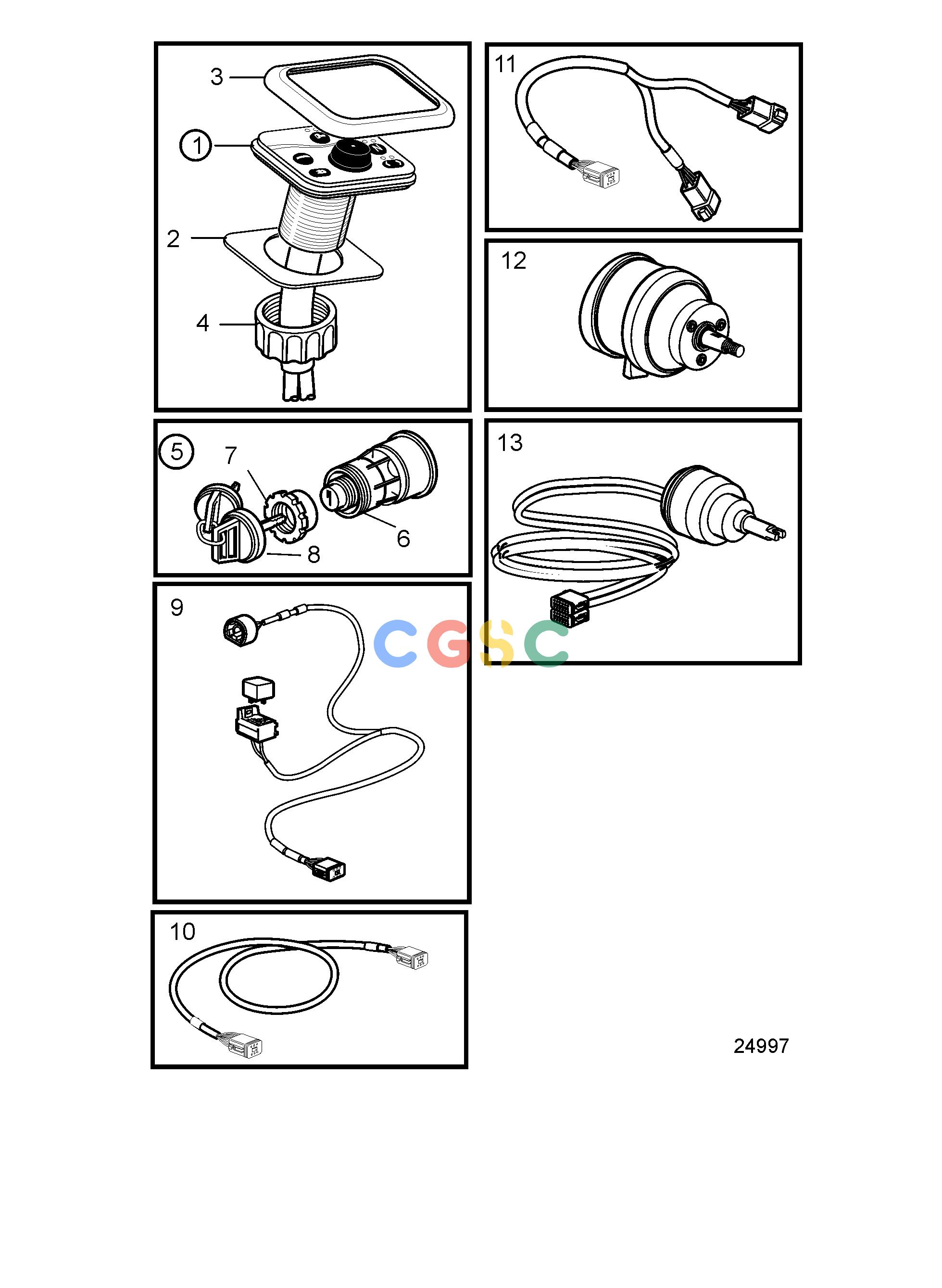

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21310164
|
[1] |
Control panel
|
|
| 2. |
3808135
|
[1] |
Gasket
|
|
| 3. |
3808131
|
[1] |
Frame
|
|
| 4. |
3808134
|
[1] |
Nut
|
|
| 5. |
3587070
|
[1] |
Starter switch, Set
|
Kit with 2 key switch with identical key.
|
| 6. |
3587071
|
[1] |
Starter switch
|
|
| 7. |
859955
|
[1] |
Plastic nut
|
|
| 8. |
859953
|
[1] |
Key
|
State key code when ordering
|
| 9. |
888004
|
[2] |
Cable
|
Relay not included
|
| 10. |
3886666
|
[3] |
Cable
|
|
| 11. |
3588206
|
[2] |
Cable kit
|
|
| 12. |
3841280
|
[1] |
Steering wheel adjus
|
|
| 13. |
3808380
|
[1] |
Kit
|
|
