神钢零件查询(F4HFE4135 B003) - ENGINE 5802094949 84553225 TC4.90 and TC5.70 TIER4B (10/16-) (10.304.AP) - BLOW-BY RECIRCULATION SYSTEM Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
174 次

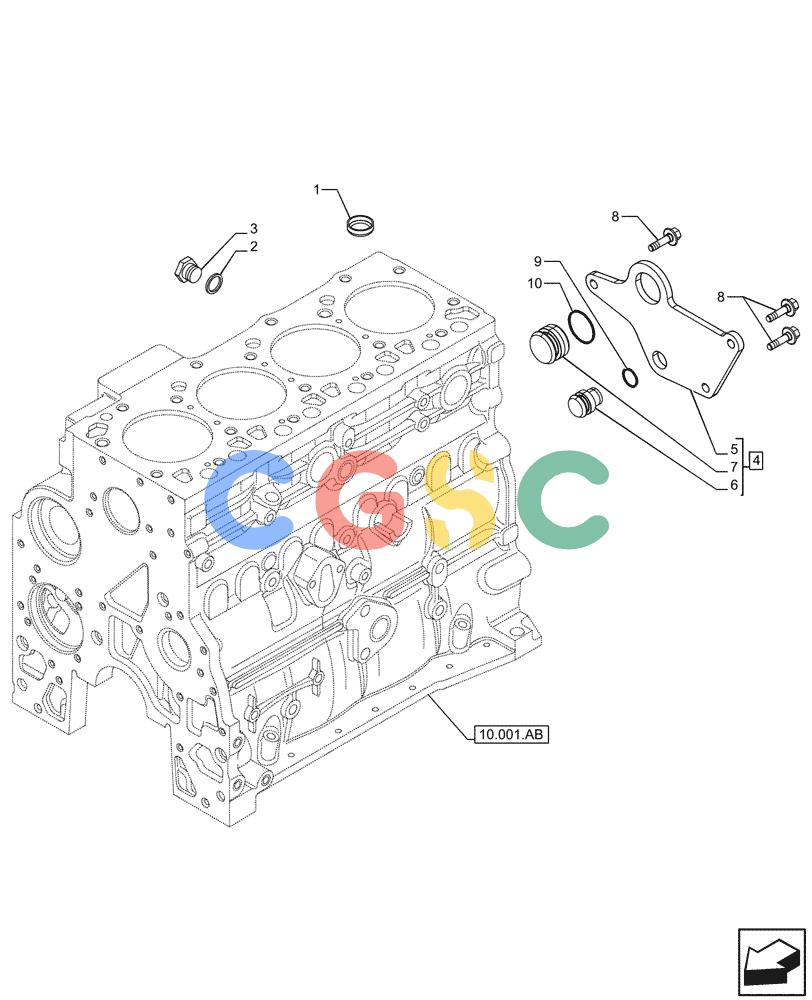

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2856545 | [1] | PLUG | TOR Superseded by part number: 504086298 |
| 2. | 2856546 | [1] | PLUG | TOR Superseded by part number: 10300511 |
| 3. | 4858607 | [1] | COPPER WASHER,12mm ID x 17mm OD x 1.50mm | TTF Superseded by part number: 2854292 |
| 4. | 2859335 | [1] | BREATHER | TORASSY, Incl 5 - 7 |
| 5. | NSS | [1] | NOT SOLD SEPARAT | CONCover, Incl in 4 |
| 6. | NSS | [1] | NOT SOLD SEPARAT | CONPlug, Incl in 4 |
| 7. | NSS | [1] | NOT SOLD SEPARAT | CONBreather, Incl in 4 |
| 8. | 4899110 | [3] | SCREW,Hex Flg, M6 x 1 x 20 | TOR |
| 9. | 4898372 | [1] | O-RING,13.11mm ID x 2.62mm Width | TOR |
| 10. | 2855200 | [1] | O-RING | TOR18.64 ID x 3.53 Dia Superseded by part number: 17288281 |
