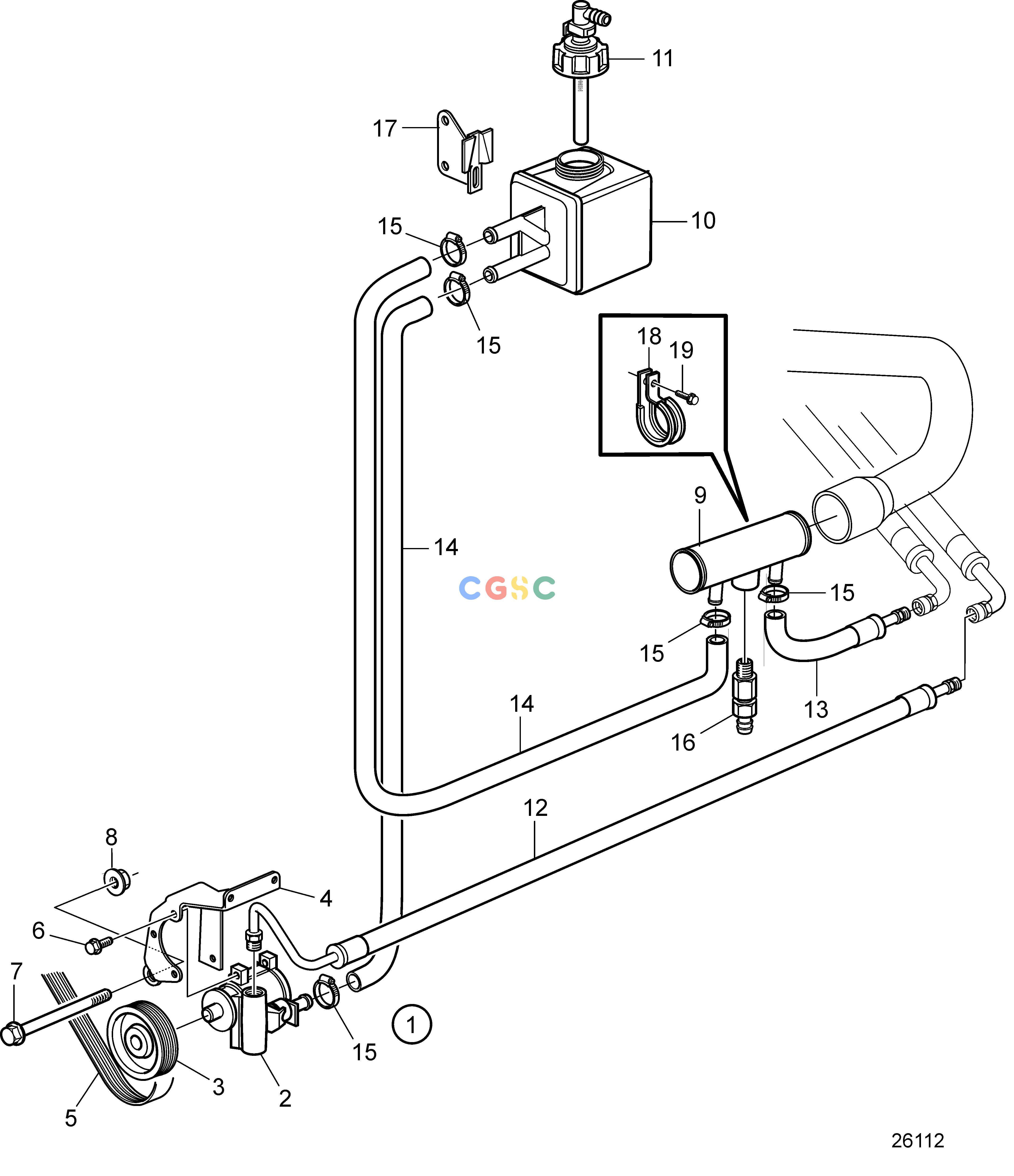

沃尔沃零件查询D4-180I-B; D4-180I-C; D4-180I-D; D4-180I-E; D4-210A-A; D4-225A-B; D4-210I-A; D4-210I-B; D4-225I-B; D4-225A-C; D4-225A-D; D4-225I-C; D4-225I-Steering SystemPower Steering Pump Kit, Early Production. SN-2004033423EPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
622 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3583737
|
[1] |
Pump
|
|
| 2. |
1359649
|
[1] |
Servo pump
|
|
| 3. |
3583030
|
[1] |
Pulley
|
|
| 4. |
3583676
|
[1] |
Bracket
|
|
| 5. |
3582696
|
[1] |
V-ribbed belt
|
|
| 6. |
946440
|
[5] |
Flange screw
|
|
| 7. |
946474
|
[1] |
Flange screw
|
|
| 8. |
971096
|
[1] |
Flange nut
|
|
| 9. |
3584243
|
[1] |
Radiator
|
|
| 10. |
3863190
|
[1] |
Reservoir
|
|
| 11. |
3863122
|
[1] |
Cover
|
|
| 12. |
889428
|
[1] |
Hydraulic hose
|
(889427)
|
| 13. |
3808486
|
[1] |
Hydraulic hose
|
(889430)
|
| 14. |
941995
|
[1] |
Hose
|
L=2,5m
|
| 15. |
961664
|
[3] |
Hose clamp
|
|
| 15. |
961666
|
[2] |
Hose clamp
|
|
| 16. |
949918
|
[1] |
Shut-off cock
|
|
| 17. |
856768
|
[1] |
Bracket
|
|
| 18. |
984474
|
[1] |
Clamp
|
|
| 19. |
946440
|
[1] |
Flange screw
|
|
