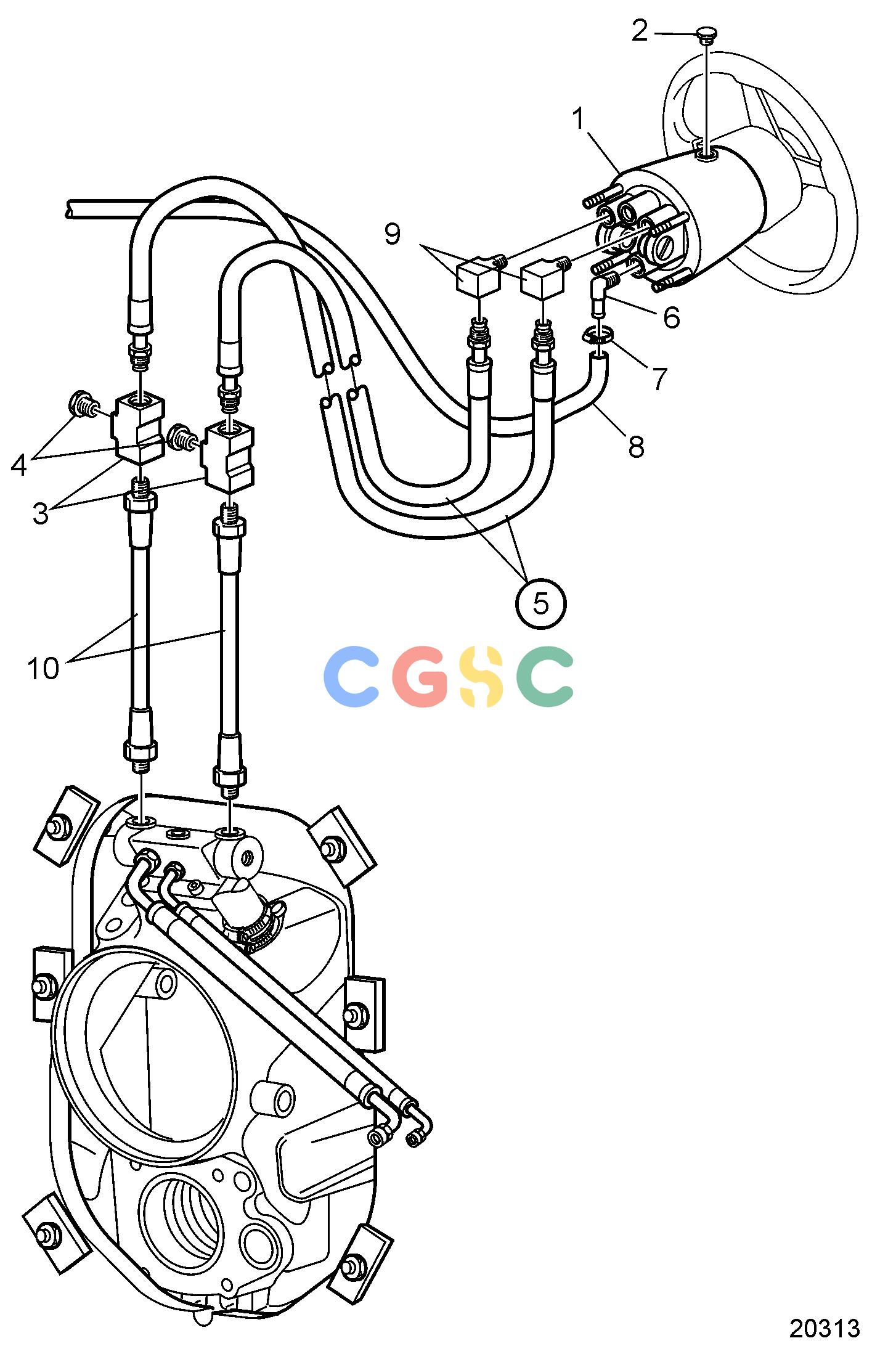

沃尔沃零件查询D4-180I-B; D4-180I-C; D4-180I-D; D4-180I-E; D4-210A-A; D4-225A-B; D4-210I-A; D4-210I-B; D4-225I-B; D4-225A-C; D4-225A-D; D4-225I-C; D4-225I-Steering SystemSteering System, EarlyEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
889 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
888154
|
[1] |
Pump
|
Std
|
| 1. |
888155
|
[1] |
Pump
|
Tilt
|
| 2. |
889171
|
[1] |
Plug
|
Alt
|
| 2. |
3588306
|
[1] |
Plug, air venting
|
Alt
|
| 3. |
984414
|
[2] |
T-nipple
|
|
| 4. |
984377
|
[2] |
Plug
|
|
| 5. |
889150
|
[1] |
Hose
|
L=0,5m
|
| 5. |
889151
|
[1] |
Hose
|
L=2,0m
|
| 5. |
889152
|
[1] |
Hose
|
L=4,0m
|
| 5. |
889153
|
[1] |
Hose
|
L=4,5m
|
| 5. |
889154
|
[1] |
Hose
|
L=5.0m
|
| 5. |
889155
|
[1] |
Hose
|
L=5,5m
|
| 5. |
889156
|
[1] |
Hose
|
L=6,0m
|
| 5. |
889157
|
[1] |
Hose
|
L=6,5m
|
| 5. |
889158
|
[1] |
Hose
|
L=7,0m
|
| 5. |
889159
|
[1] |
Hose
|
L=7,5m
|
| 5. |
889160
|
[1] |
Hose
|
L=8,0m
|
| 5. |
889161
|
[1] |
Hose
|
L=8,5m
|
| 5. |
889162
|
[1] |
Hose
|
L=9.0m
|
| 5. |
889163
|
[1] |
Hose
|
L=9,5m
|
| 5. |
889164
|
[1] |
Hose
|
L=10,0m
|
| 5. |
889165
|
[1] |
Hose
|
L=10,5m
|
| 5. |
889167
|
[1] |
Hose
|
L=11,0m
|
| 5. |
889168
|
[1] |
Hose
|
L=11,5m
|
| 5. |
889169
|
[1] |
Hose
|
L=12,0m
|
| 6. |
947681
|
[1] |
Hose nipple
|
|
| 7. |
961664
|
[2] |
Hose clamp
|
|
| 8. |
889136
|
[1] |
Hose
|
L=7,0m
|
| 8. |
889148
|
[1] |
Return hose
|
L=9.0m
|
| 9. |
3852525
|
[2] |
Fitting
|
(984412)
|
| 10. |
888202
|
[2] |
Hose assembly
|
|
