现代零件查询R110-7A MAIN CONTROL VALVE(3/4, #0118-)EPC Hyundai
广数供应链运营团队, 14 02月, 2025，浏览：
558 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
@
|
[1] |

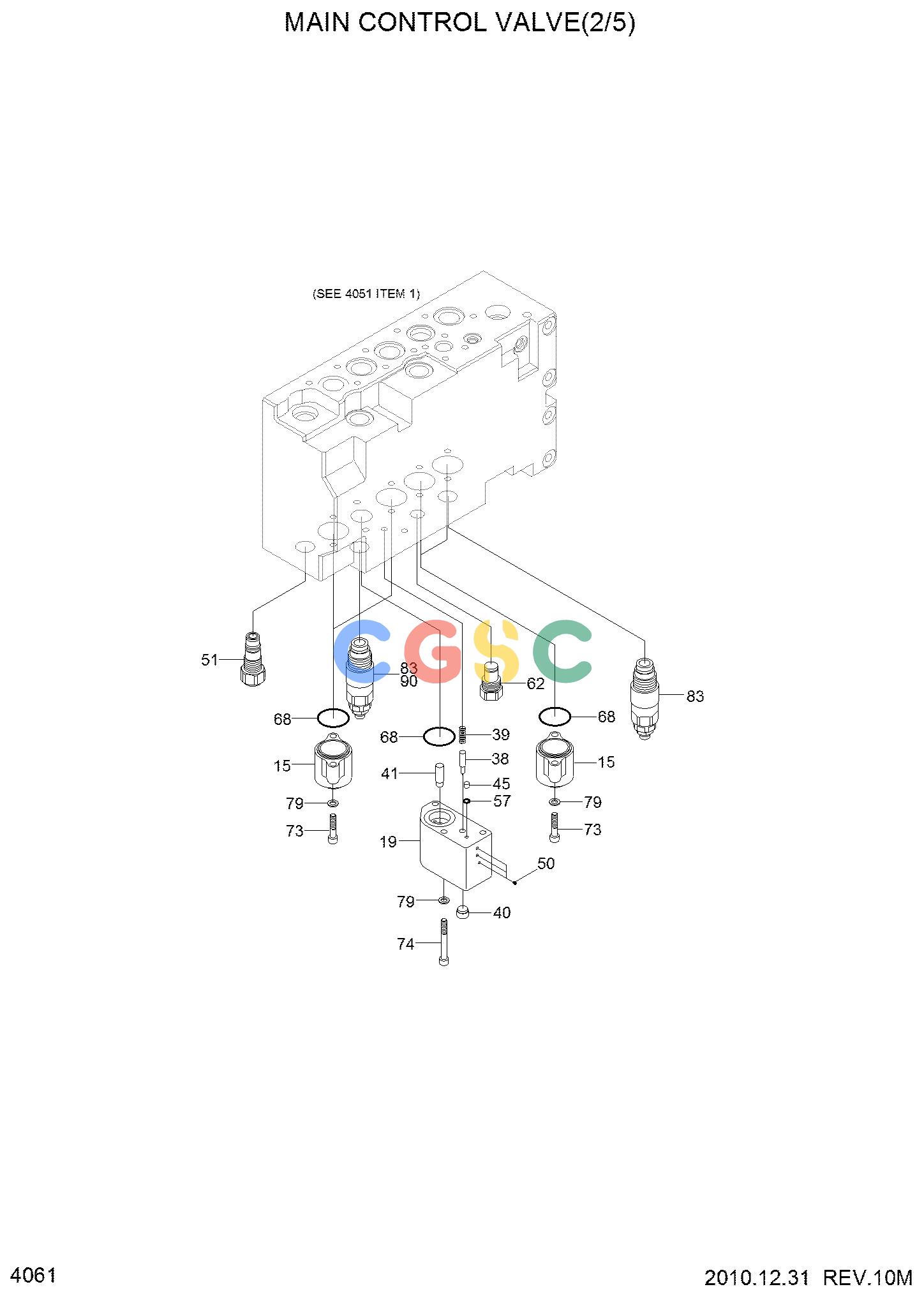

MAIN CONTROL VALVE
|
|
| 2. |
XKCG-00492
|
[1] |
HOUSING P2
|
|
| 3. |
XKCG-00493
|
[1] |
SPOOL ASSY(TS)
|
|
| 4. |
XKCG-00494
|
[1] |
SPOOL ASSY(TRAVEL)
|
|
| 6. |
XKCG-00495
|
[1] |
SPOOL ASSY(SWING)
|
|
| 8. |
XKCG-00497
|
[1] |
SPOOL ASSY(SW PRIO.)
|
|
| 9. |
XKCG-00498
|
[1] |
SPOOL ASSY(BOOM2)
|
|
| 11. |
XKCG-00500
|
[2] |
SPOOL ASSY(ARM1)
|
|
| 13. |
XKCG-00502
|
[2] |
SPOOL ASSY(OPTION-B)
|
|
| 15. |
XKCG-00504
|
[2] |
SPOOL ASSY(OPTION-C)
|
|
| 29. |
XKCG-00263
|
[2] |
PLUG
|
|
| 30. |
XKCG-00432
|
[2] |
PLUG-PF 1/4
|
|
| 40. |
XKCG-00519
|
[1] |
PLUG(OPTION M18X1.5)
|
|
| 50. |
XKCG-00522
|
[6] |
CAP-PILOT A
|
|
| 51. |
XKCG-00523
|
[5] |
CAP-PILOT B1
|
|
| 52. |
XKCG-00524
|
[2] |
CAP-PILOT B2
|
|
| 53. |
XKCG-00117
|
[16] |
WRENCH BOLT
|
|
| 54. |
XKCG-00525
|
[1] |
BOLT-SOCKET M12X90L
|
|
| 55. |
XKCG-00526
|
[7] |
BOLT-SOCKET M12X120L
|
|
| 56. |
XKCG-00116
|
[42] |
WASHER-PLAIN
|
|
| 57. |
XKCG-00527
|
[8] |
WASHER-M12 SPRING
|
|
| 59. |
XKCG-00057
|
[1] |
O-RING
|
|
| 60. |
XKCG-00056
|
[6] |
O-RING
|
|
| 61. |
XKCG-00103
|
[2] |
O-RING
|
|
| 63. |
XKCG-00257
|
[2] |
O-RING
|
|
| 69. |
XKCG-00529
|
[14] |
O-RING AS568 125
|
|
| 72. |
XKCG-00065
|
[1] |
O-RING
|
|
| 75. |
XKCG-00533
|
[2] |
BACKUP-RING; P10
|
|
| 77. |
XKCG-00070
|
[1] |
RING-BACK UP
|
|
| 82. |
XKCG-00036
|
[2] |
C-RING
|
|
| 83. |
XKCG-00537
|
[2] |
POPPET-LOCK V/V
|
|
| 84. |
XKCG-00037
|
[2] |
RESTRICTOR-LOCK VALVE
|
|
| 85. |
XKCG-00028
|
[2] |
SPRING-LOCK VLV PILOT
|
|
| 86. |
XKCG-00085
|
[2] |
GUIDE POPPET
|
|
| 87. |
XKCG-00538
|
[2] |
POPPET-PILOT
|
|
| 88. |
XKCG-00539
|
[2] |
SEAT-POPPET
|
|
| 93. |
XKCG-00540
|
[1] |
PLUG; 3/8
|
|
