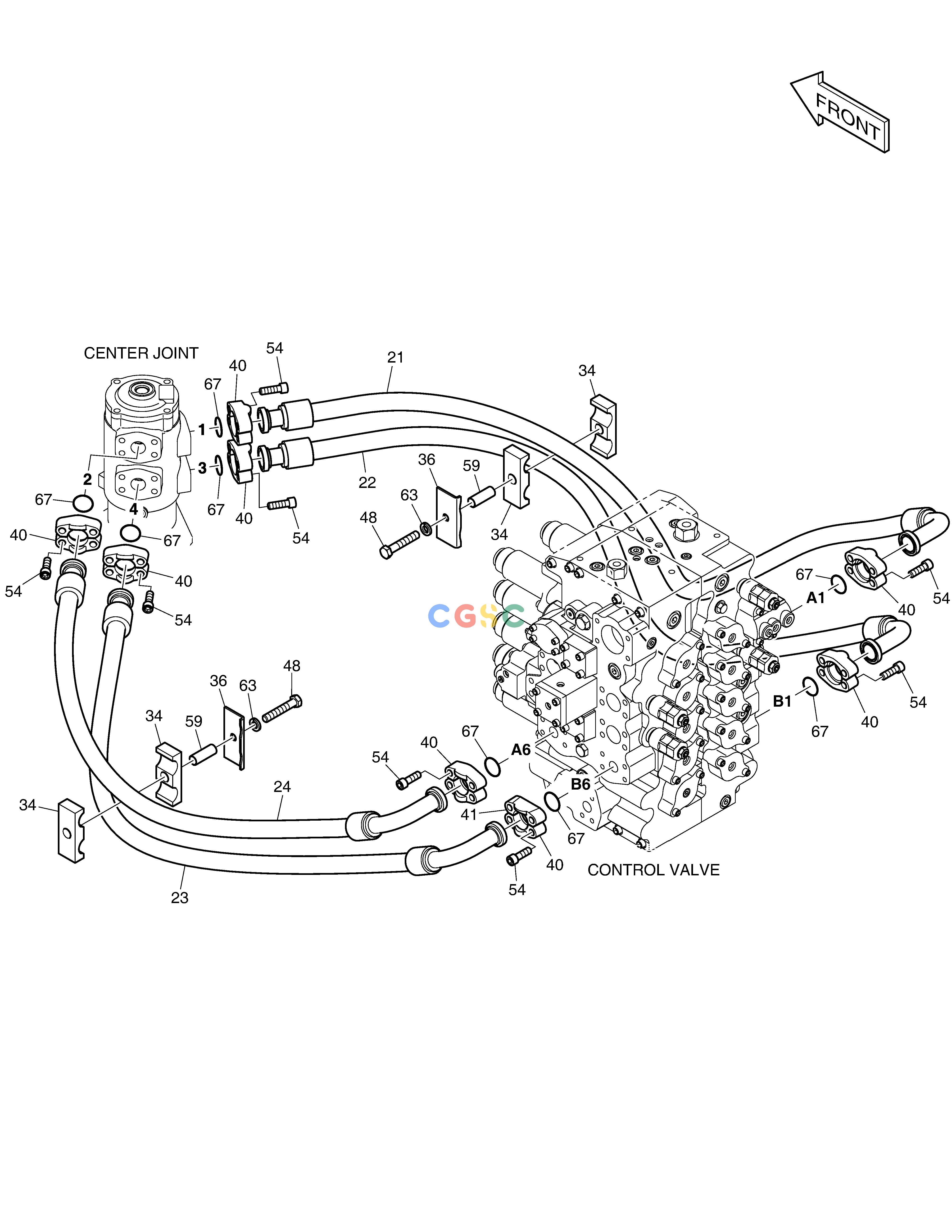

斗山零件查询MAIN PIPING(5) - CENTER JOINT DX530LC-5(S/N:10001~10006) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
962 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-08059
|
[-] |
|
|
| 21. |
DS20401036
|
[1] |
|
|
| 22. |
DS20401037
|
[1] |
|
|
| 23. |
DS20401038
|
[1] |
|
|
| 24. |
DS20401039
|
[1] |
|
|
| 34. |
124-00247
|
[4] |
CLAMP;HOSE
|
|
| 36. |
2191-3705C
|
[2] |
PLATE
|
|
| 40. |
2181-9086
|
[15] |
FLANGE;SPLIT
|
|
| 41. |
K1014858
|
[1] |
FLANGE;SPLIT
|
|
| 48. |
S0566066
|
[2] |
BOLT
|
|
| 54. |
S2218566
|
[32] |
BOLT;SOCKET
|
|
| 59. |
114-00456
|
[2] |
SPACER
|
|
| 63. |
S5102903
|
[2] |
WASHER
|
|
| 67. |
2180-1026D23
|
[8] |
O-RING
|
|
