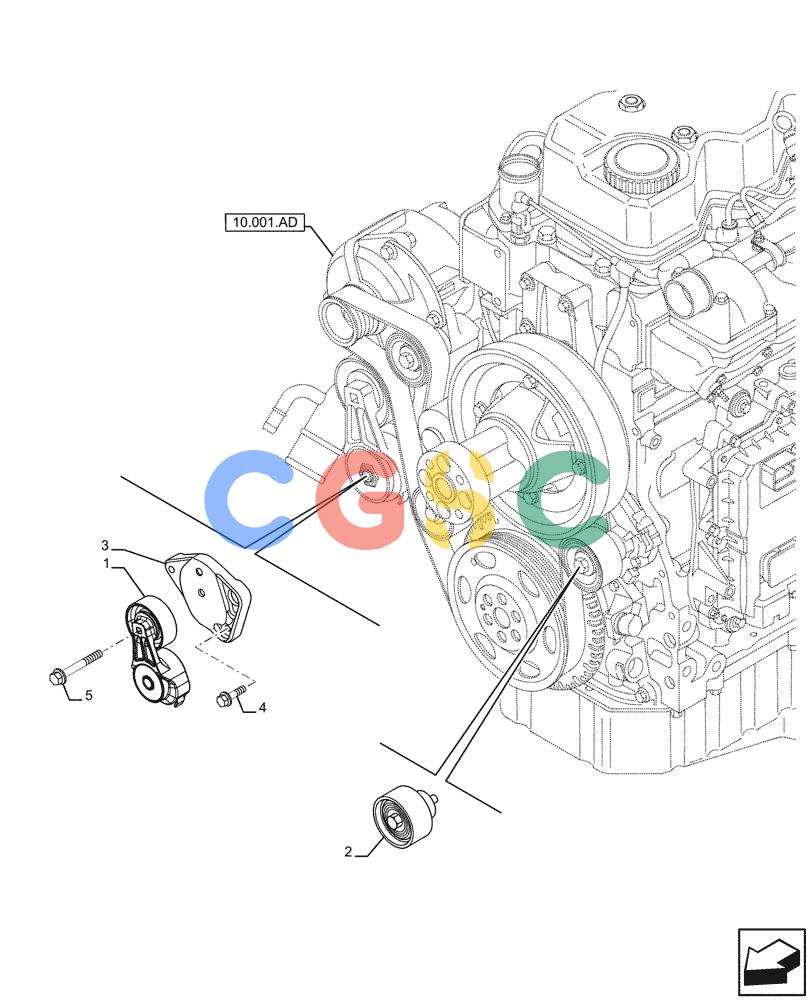

神钢零件查询(F4HFE4135 B003) - ENGINE 5802094949 84553225 TC4.90 and TC5.70 TIER4B (10/16-) (10.414.AE) - BELT TENSIONER Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
107 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2856946 | [1] | BELT TENSIONER | TOR Superseded by part number: |
| 2. | 2852398 | [1] | IDLER WHEEL,65mm OD | TORPulley layshaft Superseded by part number: 504065877 |
| 3. | NS | [1] | NOT SERVICED | BASBracket |
| 4. | 2852286 | [2] | BOLT,Flng, M10 x 1.5 x 130mm | TOR Superseded by part number: 16599125 |
| 5. | 2854424 | [1] | SCREW,Hex, Flg Hd, M10 x 1.5 x 70mm | TORM10 x 1.5 x 70mm Superseded by part number: 16676834 |
