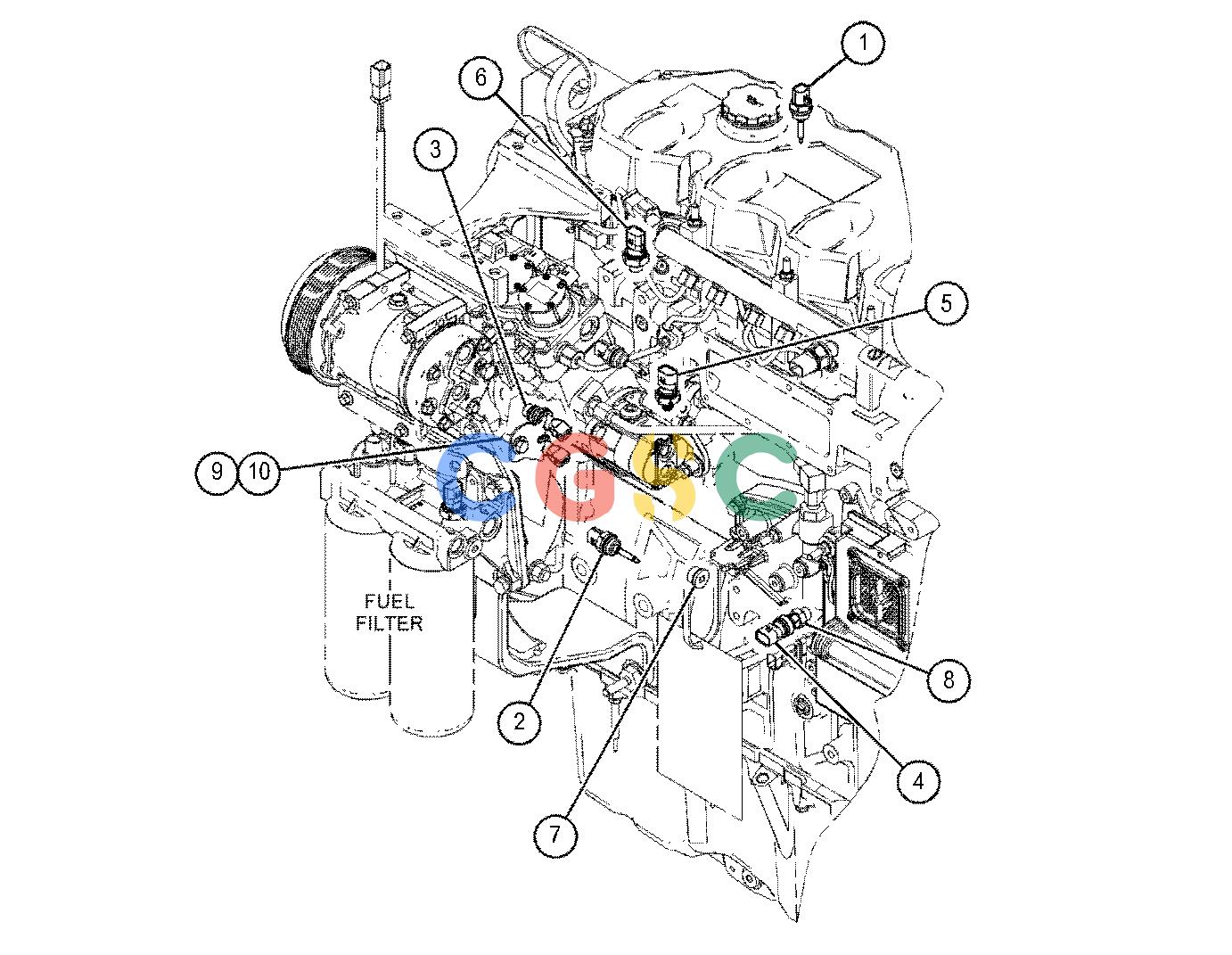

卡特零件查询（725C） 391-4953: SENSOR GP-ENGINE
广数供应链运营团队, 14 02月, 2025，浏览：
238 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 234-5012Y | [1] | SENSOR GP-TEMPERATURE | |
| 2. | 234-5013Y | [1] | SENSOR GP-TEMPERATURE(AIR INLET) | |
| 3. | 236-6221Y | [1] | SENSOR GP-SPEED | |
| 4. | 274-6719 | [1] | SENSOR GP-PRESSURE(ENGINE OIL) | |
| 5. | 331-1134Y | [1] | SENSOR GP-PRESSURE(ATMOSPHERIC) | |
| 6. | 332-0296Y | [1] | SENSOR GP-PRESSURE | |
| 7. | 307-2673 | [1] | PLUG AS | |
| | 9S-8005 | [1] | PLUG(3/4-16-THD) | |
| | 238-5080 | [1] | SEAL-O-RING | |
| 8. | 329-5451 | [1] | ADAPTER AS | |
| | 9X-0261 | [1] | ADAPTER | |
| | 214-7566 | [1] | SEAL-O-RING | |
| | 214-7568 | [1] | SEAL-O-RING | |
| 9. | 6V-3940M | [1] | BOLT(M8X1.25X25-MM) | |
| 10. | 3E-4352 | [1] | WASHER-HARD(8.8X20.5X2.5-MM THK) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
