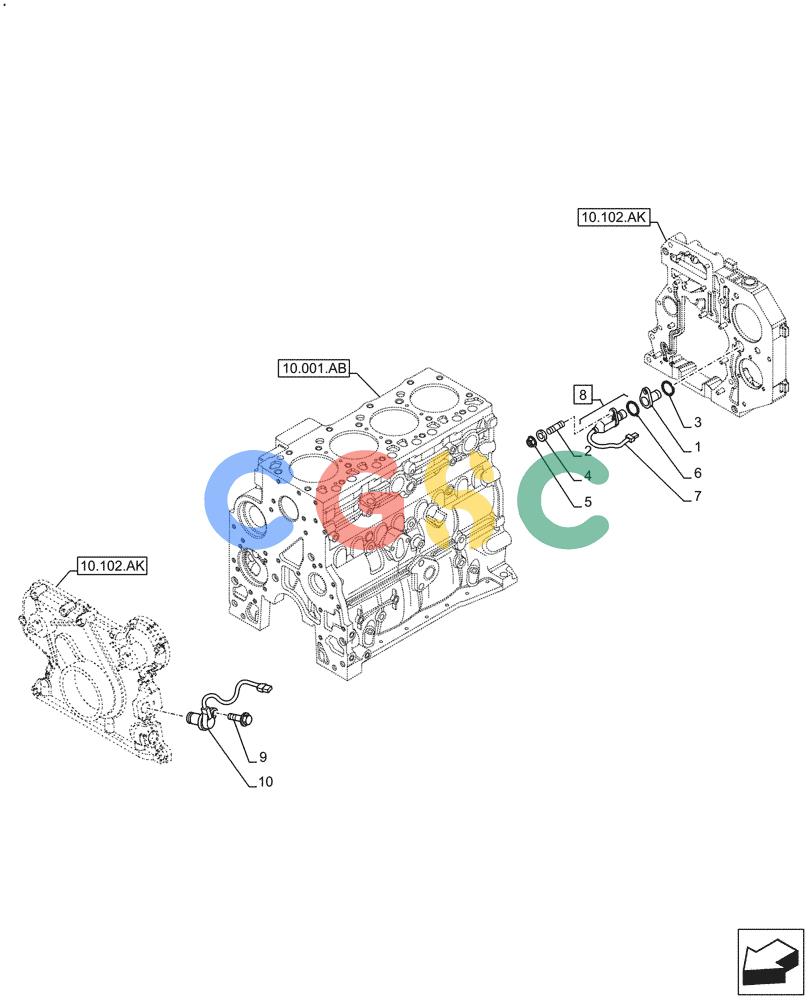

神钢零件查询(F4HFE4135 B003) - ENGINE 5802094949 84553225 TC4.90 and TC5.70 TIER4B (10/16-) (55.015.AC) - ENGINE SPEED/RPM SENSOR Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
321 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 84370070 | [1] | HOUSING | BRRSensor FPT |
| 3. | 4895477 | [1] | O-RING,2.62mm Thk x 13.94mm ID | TOR |
| 4. | 4899124 | [1] | WASHER | TOR |
| 5. | 2854282 | [1] | NUT,M6 x 1 | TORM6 x 1 Superseded by part number: 17037821 |
| 6. | 2852820 | [1] | O-RING,0.07" Thk x 0.676" ID, 17, Cl 7, 75 Duro | TORM17.17 x 1.78mm Superseded by part number: 17278481 |
| 7. | NSS | [1] | NOT SOLD SEPARAT | CONSensor, Incl in 8 |
| 8. | 4890190 | [1] | SENSOR | TORASSY, Incl 6, 7 |
| 9. | 4899110 | [3] | SCREW,Hex Flg, M6 x 1 x 20 | TOR |
| 10. | 4890189 | [1] | SENSOR | TORCrankshaft/Camshaft, speed |
