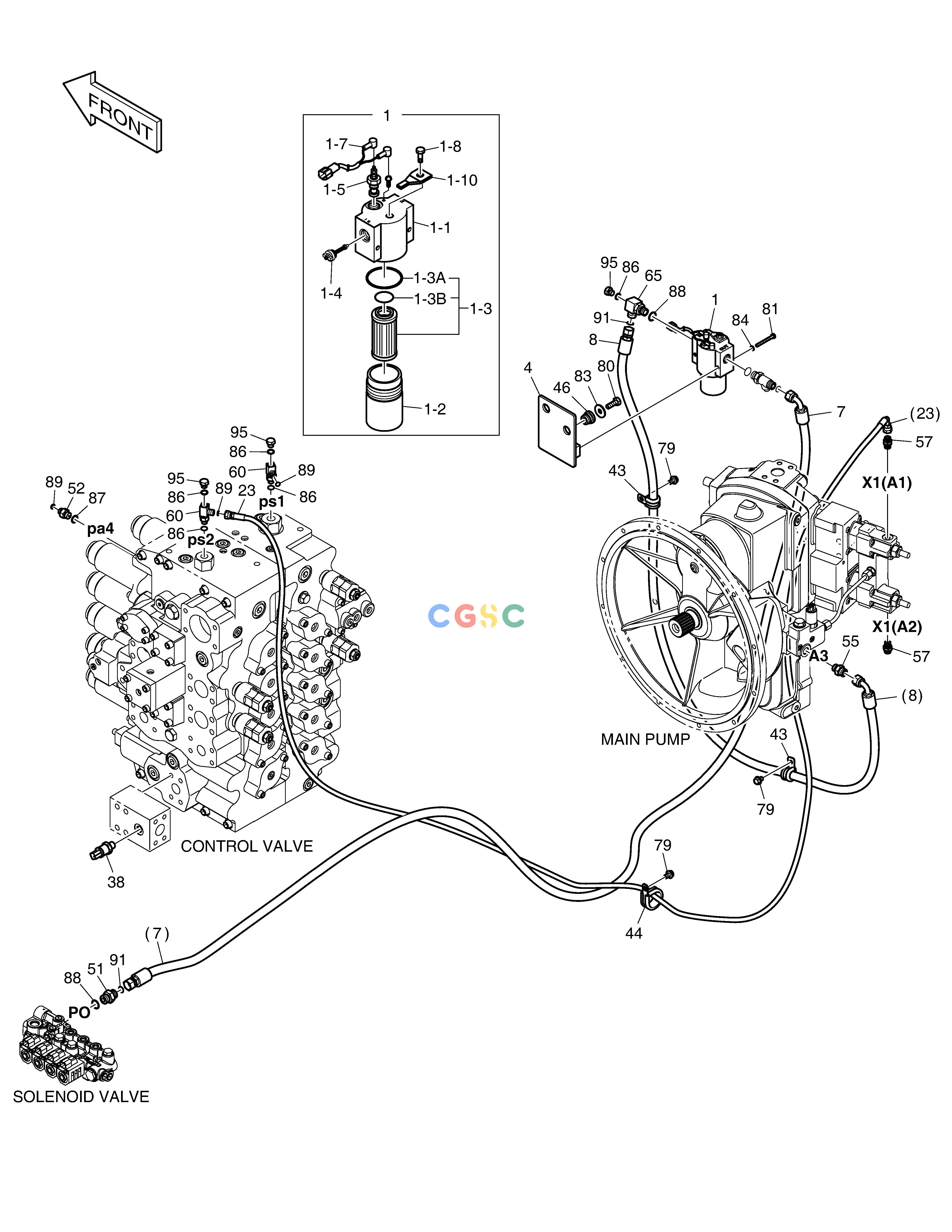

斗山零件查询PILOT PIPING(1) DX530LC-5(S/N:10001~10006) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
961 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-08171
|
[-] |
|
|
| 1. |
400407-00006
|
[1] |
FILTER,PILOT
|
|
| 1-1. |
NA00509
|
[1] |
. HEAD
|
|
| 1-10. |
2197-1661
|
[1] |
BRACKET
|
|
| 1-2. |
110913-00333
|
[1] |
|
|
| 1-3. |
400504-00241
|
[1] |
ELEMENT,FILTER
|
|
| 1-3A. |
401002-01472
|
[1] |
. O-RING
|
|
| 1-3B. |
401002-01473
|
[1] |
. O-RING
|
|
| 1-4. |
410128-00073
|
[1] |
|
|
| 1-5. |
800217-00115
|
[1] |
|
|
| 1-7. |
310207-03984
|
[1] |
|
|
| 1-8. |
S0508653
|
[1] |
BOLT
|
|
| 23. |
DS2121272
|
[1] |
|
|
| 38. |
2547-9045
|
[1] |
SENSOR;PRESSURE
|
|
| 4. |
110413-00011B
|
[1] |
|
|
| 43. |
124-00208D3
|
[2] |
CLIP
|
|
| 44. |
124-00208D7
|
[1] |
CLIP
|
|
| 46. |
198-00016
|
[2] |
RUBBER
|
|
| 51. |
2181-4133D3
|
[1] |
ADAPTER
|
|
| 52. |
2181-4133D41
|
[1] |
ADAPTER
|
|
| 55. |
430201-00110
|
[1] |
|
|
| 57. |
430201-00182
|
[2] |
|
|
| 60. |
DS2497014
|
[2] |
|
|
| 65. |
DS2517001
|
[1] |
|
|
| 7. |
DS20132053
|
[1] |
|
|
| 79. |
K1001029
|
[3] |
BOLT
|
|
| 8. |
DS20132441
|
[1] |
|
|
| 80. |
S0512266
|
[2] |
BOLT
|
|
| 81. |
S0553766
|
[2] |
BOLT
|
|
| 83. |
2114-1058D10
|
[2] |
WASHER
|
|
| 84. |
S5102303
|
[2] |
. WASHER
|
|
| 86. |
S8000111
|
[5] |
O-RING
|
|
| 87. |
S8000141
|
[1] |
O-RING
|
|
| 88. |
S8000181
|
[2] |
O-RING
|
|
| 89. |
S8030041
|
[3] |
O-RING
|
|
| 91. |
S8030081
|
[2] |
O-RING
|
|
| 95. |
2181-1950D1
|
[3] |
PLUG
|
|
