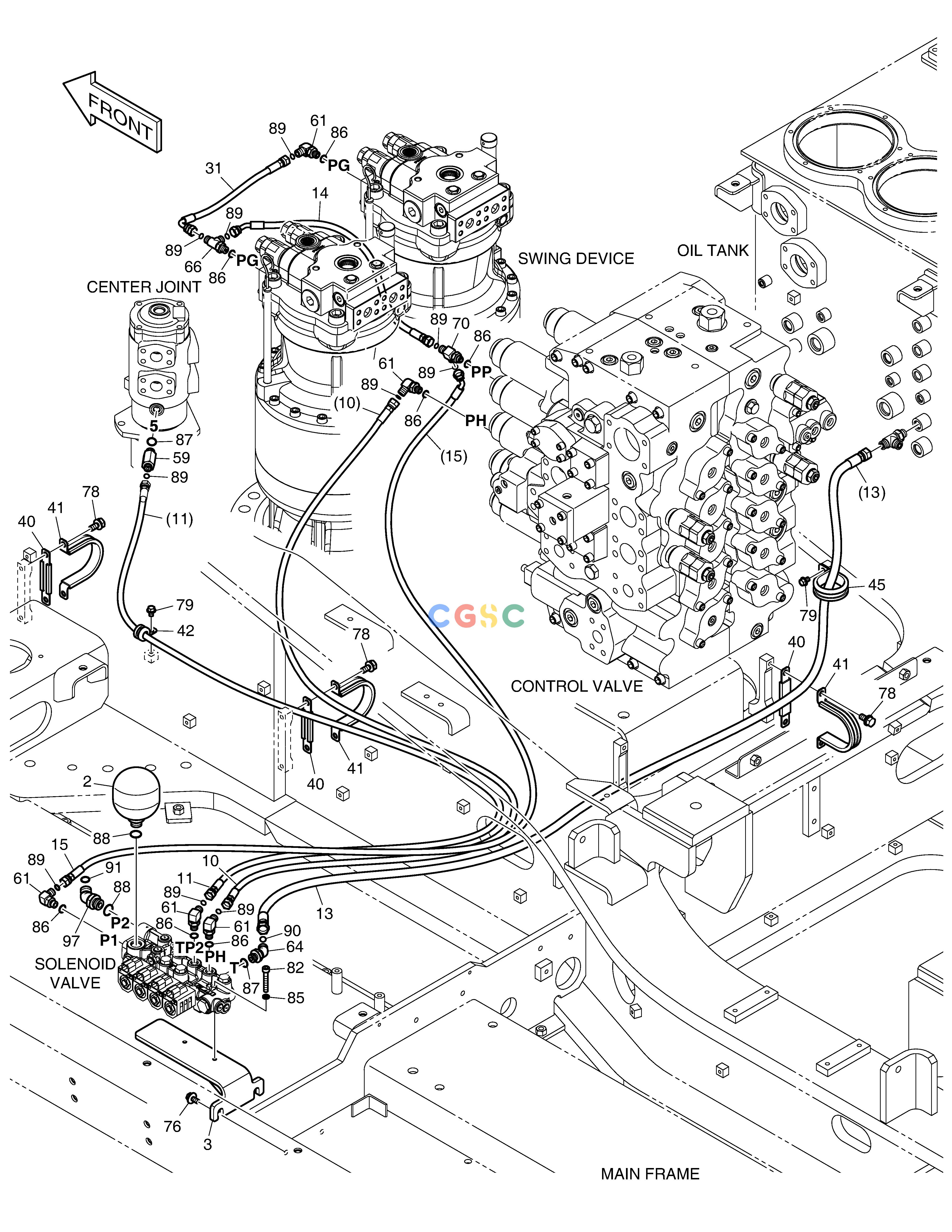

斗山零件查询PILOT PIPING(2) DX530LC-5(S/N:10001~10006) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
838 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-08171
|
[-] |
|
|
| 10. |
DS2119154
|
[1] |
|
|
| 11. |
DS2119212
|
[1] |
|
|
| 13. |
DS2119261
|
[1] |
|
|
| 14. |
DS2120015
|
[1] |
|
|
| 15. |
DS2120137
|
[1] |
|
|
| 2. |
2460-9057A
|
[1] |
ACCUMULATOR
|
|
| 3. |
110425-00203
|
[1] |
|
|
| 31. |
DS2143045
|
[1] |
|
|
| 40. |
120202-00055
|
[3] |
|
|
| 41. |
120202-00057E
|
[3] |
|
|
| 42. |
124-00208D2
|
[1] |
CLAMP
|
|
| 45. |
124-00208D8
|
[1] |
CLIP
|
|
| 59. |
DS2232171
|
[1] |
|
|
| 61. |
2181-2815D4
|
[5] |
ELBOW
|
|
| 64. |
2181-2816D5
|
[1] |
ELBOW
|
|
| 66. |
181-00121D1
|
[1] |
TEE
|
|
| 70. |
430225-00027
|
[1] |
|
|
| 76. |
DS0025018
|
[2] |
BOLT
|
|
| 78. |
DS0025055
|
[6] |
BOLT;SET
|
|
| 79. |
K1001029
|
[2] |
BOLT
|
|
| 82. |
S2209666
|
[2] |
BOLT
|
|
| 85. |
S5110503
|
[2] |
WASHER
|
|
| 86. |
S8000111
|
[7] |
O-RING
|
|
| 87. |
S8000141
|
[2] |
O-RING
|
|
| 88. |
S8000181
|
[2] |
O-RING
|
|
| 89. |
S8030041
|
[10] |
O-RING
|
|
| 90. |
S8030061
|
[1] |
O-RING
|
|
| 91. |
S8030081
|
[1] |
O-RING
|
|
| 97. |
2181-2816D4
|
[1] |
ELBOW
|
|
