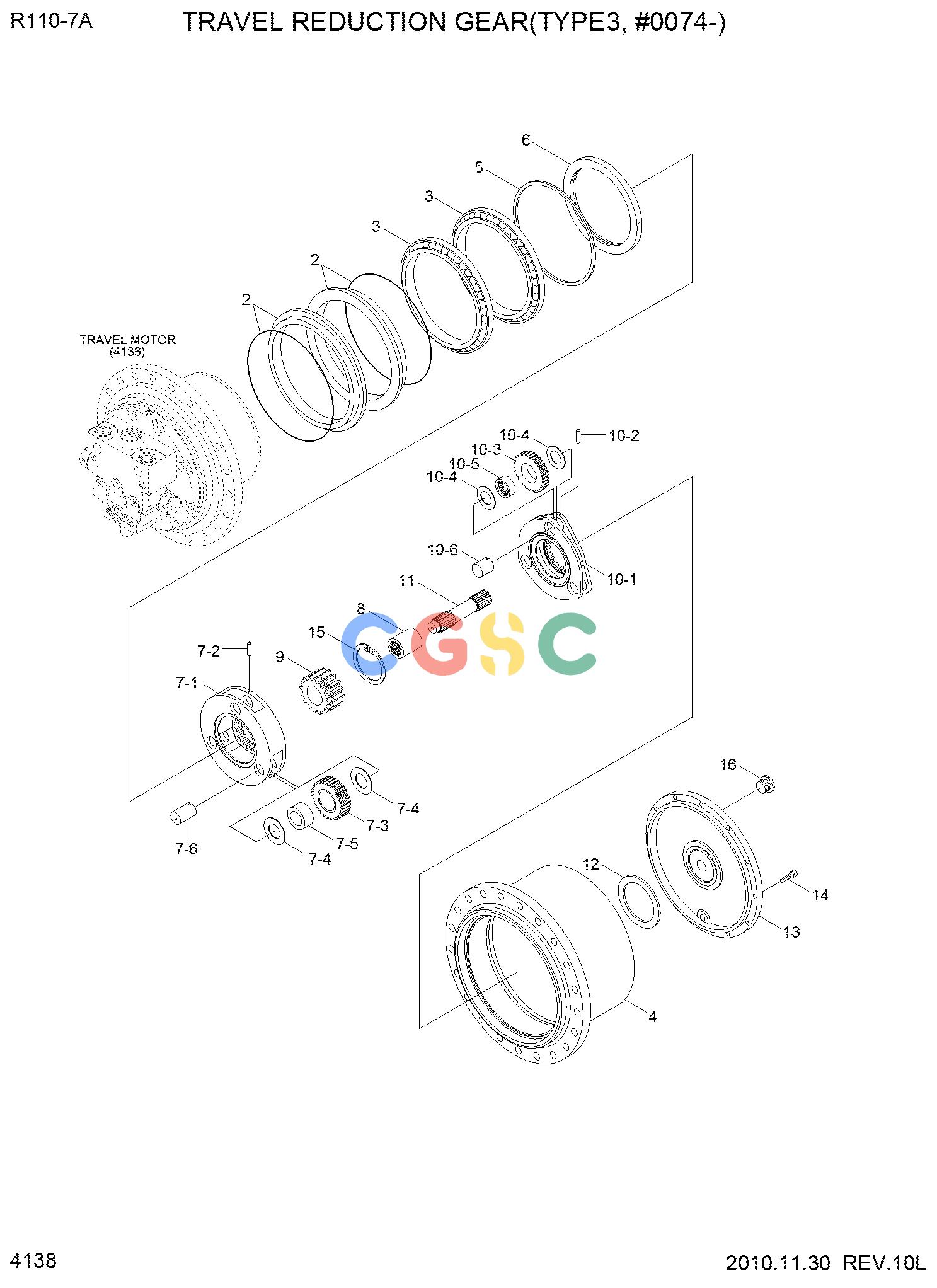

现代零件查询R110-7A TRAVEL REDUCTION GEAR(TYPE 3, #0074-)EPC Hyundai
广数供应链运营团队, 14 02月, 2025，浏览：
943 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
@
|
[1] |
CARRIAGE ASSY
|
|
| -2. |
XKAY-01867
|
[1] |
TRAVEL REDUCTION GEAR ASSY
|
|
| 2. |
XKAY-01781
|
[2] |
SEAL-FLOATING
|
|
| 3. |
XKAY-01780
|
[2] |
BEARING-BALL
|
|
| 4. |
XKAY-01840
|
[1] |
RING GEAR
|
|
| 5. |
XKAY-01778
|
[1] |
SHIM(1.4T)
|
|
| 5. |
XKAY-01777
|
[1] |
SHIM(1.5T)
|
|
| 5. |
XKAY-01776
|
[1] |
SHIM(1.6T)
|
|
| 6. |
XKAY-01775
|
[3] |
SHIM(6.0T)
|
|
| 7. |
XKAY-01774
|
[1] |
CARRIER 2 ASSY
|
|
| 7-1. |
XKAY-01773
|
[1] |
CARRIER 2
|
|
| 7-2. |
XKAY-01772
|
[3] |
PIN 2-SPRING
|
|
| 7-3. |
XKAY-01771
|
[3] |
GEAR 2-PLANETARY
|
|
| 7-4. |
XKAY-01770
|
[6] |
WASHER 2
|
|
| 7-5. |
XKAY-01769
|
[3] |
BEARING 2
|
|
| 7-6. |
XKAY-01768
|
[3] |
PIN 2
|
|
| 8. |
XKAY-01767
|
[1] |
COUPLING
|
|
| 9. |
XKAY-01766
|
[1] |
GEAR 2-SUN
|
|
| 10. |
XKAY-01765
|
[1] |
CARRIER 1 ASSY
|
|
| 10-1. |
XKAY-01764
|
[1] |
CARRIER 1
|
|
| 10-2. |
XKAY-01763
|
[3] |
PIN 1-SPRING
|
|
| 10-3. |
XKAY-01762
|
[3] |
GEAR 1-PLANETARY
|
|
| 10-4. |
XKAY-01761
|
[6] |
WASHER 1
|
|
| 10-5. |
XKAY-01760
|
[3] |
BEARING 1
|
|
| 10-6. |
XKAY-01759
|
[3] |
PIN 1
|
|
| 11. |
XKAY-01758
|
[1] |
GEAR 1-SUN
|
|
| 12. |
XKAY-01757
|
[1] |
PLATE 1
|
|
| 13. |
XKAY-01756
|
[1] |
COVER-END
|
|
| 14. |
XKAY-01755
|
[12] |
BOLT
|
|
| 15. |
XKAY-01754
|
[1] |
RING-SNAP
|
|
| 16. |
XKAY-01753
|
[3] |
PLUG-PF
|
|
