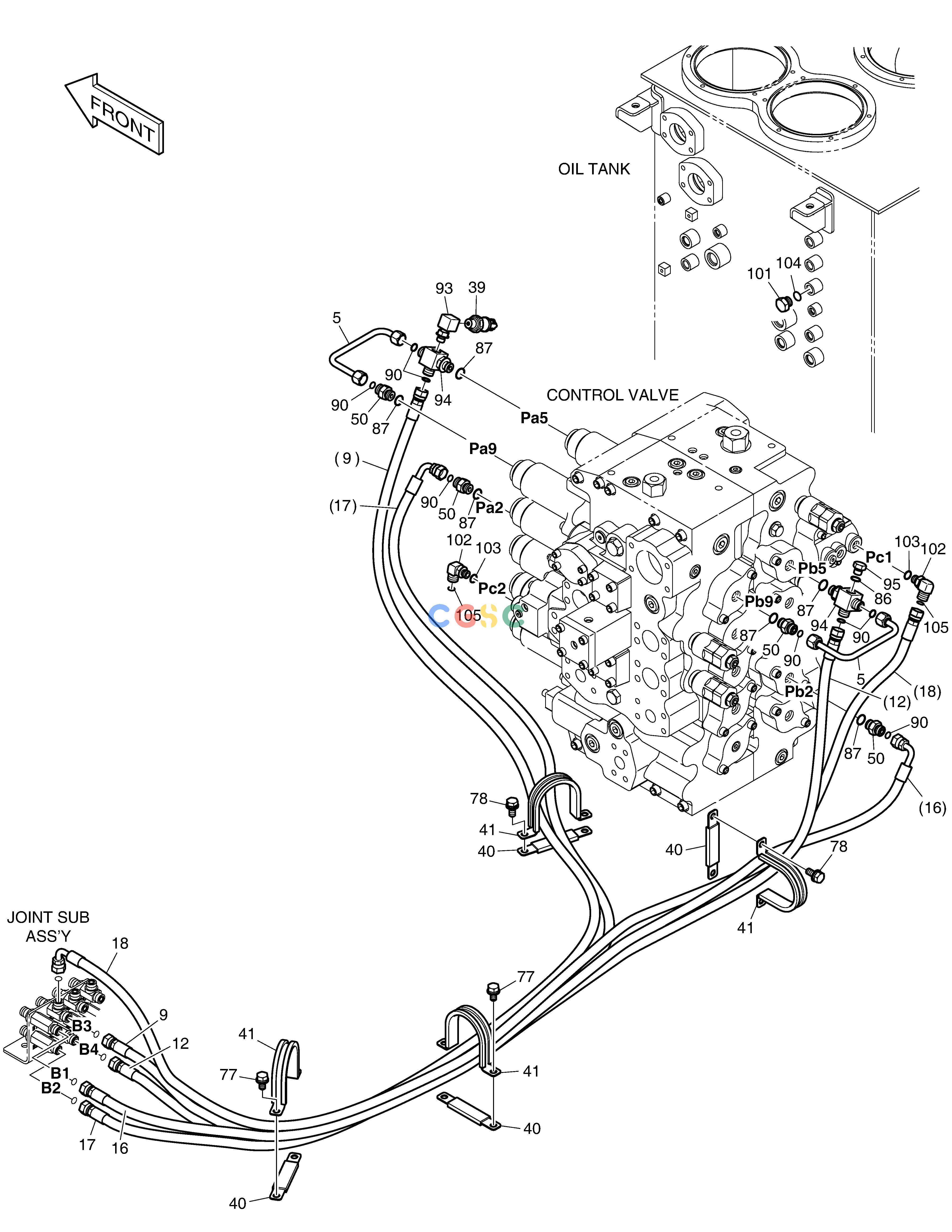

斗山零件查询PILOT PIPING(4) DX530LC-5(S/N:10001~10006) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
774 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-08171
|
[-] |
|
|
| 101. |
2181-1950D2
|
[1] |
PLUG
|
|
| 102. |
2181-2815D5
|
[2] |
ELBOW
|
|
| 103. |
S8000111
|
[2] |
O-RING
|
|
| 104. |
S8000141
|
[1] |
O-RING
|
|
| 105. |
S8030061
|
[2] |
O-RING
|
|
| 12. |
DS2119256
|
[1] |
|
|
| 16. |
DS2121035
|
[1] |
|
|
| 17. |
DS2121038
|
[1] |
|
|
| 18. |
DS2121039
|
[1] |
|
|
| 39. |
K1057340
|
[1] |
SENSOR,PRESSURE
|
|
| 40. |
120202-00055
|
[4] |
|
|
| 41. |
120202-00057E
|
[4] |
|
|
| 5. |
920403-00076A
|
[2] |
|
|
| 50. |
2181-4133D2
|
[4] |
ADAPTER
|
|
| 77. |
DS0025042
|
[4] |
BOLT
|
|
| 78. |
DS0025055
|
[4] |
BOLT;SET
|
|
| 86. |
S8000111
|
[1] |
O-RING
|
|
| 87. |
S8000141
|
[6] |
O-RING
|
|
| 9. |
DS2119118
|
[1] |
|
|
| 90. |
S8030061
|
[8] |
O-RING
|
|
| 93. |
2181-2295D4
|
[1] |
ELBOW
|
|
| 94. |
430225-00218
|
[2] |
|
|
| 95. |
2181-1950D1
|
[1] |
PLUG
|
|
