纽荷兰零件查询(DC180LT) - CRAWLER DOZER (5/00-) (6.782[01]) - TRADE MARK DECALS - N.A. VERSION (01) New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
734 次

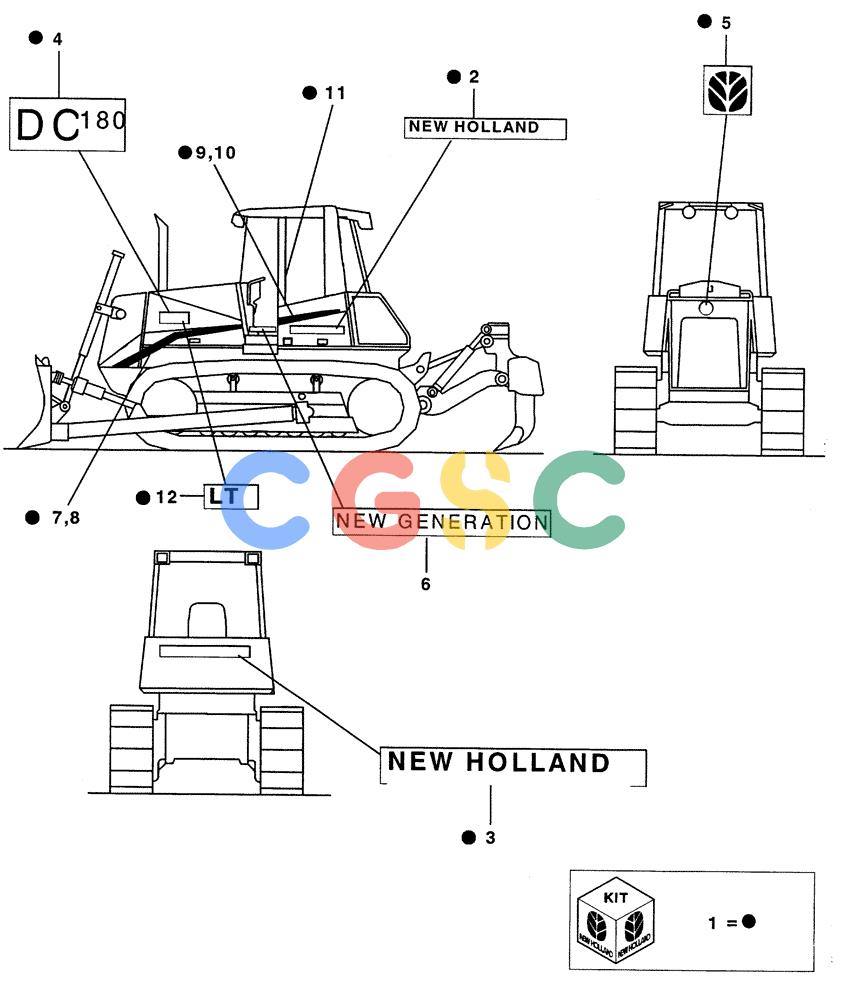

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76069767 | [1] | KIT | TOR- KIT,DECAL - INCLUDES ITEMS 2 THRU 12 Superseded by part number: 76069779, 76069768, 76069735, 76069734, 76069732, 76073338, 76069713, 76069711, 76069712, 76069710, 76069739 |
| 2. | 76069710 | [2] | MAKERS BADGE | TOR- DECAL, NEW HOLLAND |
| 3. | 76069712 | [1] | MAKERS BADGE | TOR- DECAL, NEW HOLLAND |
| 4. | 76069711 | [2] | TYPE PLATE | TOR- DECAL, DC180 MODEL |
| 5. | 76069768 | [1] | DEALERSHIP IDENTITY LOGO | TOR- LOGO |
| 6. | 76069739 | [2] | MAKERS BADGE | TOR- DECAL, NEW GENERATION |
| 7. | 76069713 | [1] | DECAL | TOR- DECAL, RED STRIP - LH |
| 8. | 76069732 | [1] | DECAL | TOR- DECAL, RED STRIPE - RH |
| 9. | 76069734 | [1] | DECAL | TOR- DECAL, RED STRIPE - LH |
| 10. | 76069735 | [1] | DECAL | TOR- DECAL, RED STRIPE RH |
| 11. | 76069779 | [1] | IDENTITY PLATE | LECPLATE,OPERATION INSTRUCTION |
| 12. | 76073338 | [2] | DECAL | TORLT |
