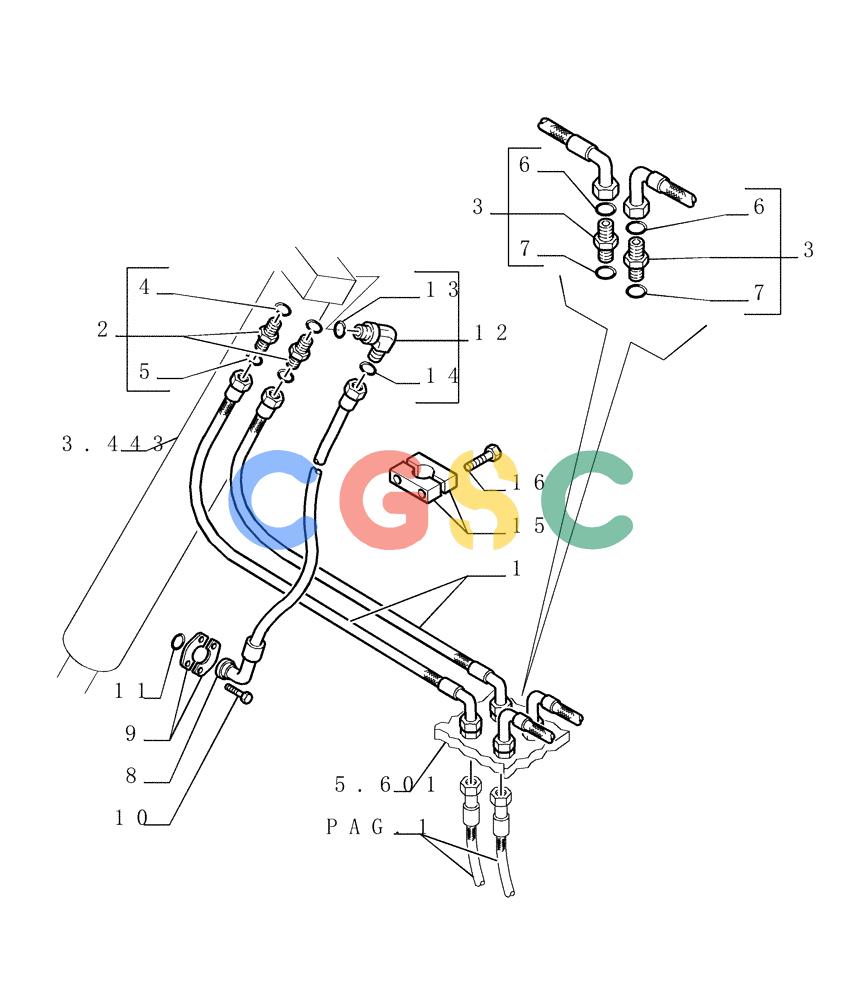

纽荷兰零件查询(DC180LT) - CRAWLER DOZER (5/00-) (3.440[03]) - LIFT CYLINDERS PIPING New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
739 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76073168 | [4] | HYDRAULIC HOSE,19.05mm ID x 1050mm L | LEC |
| 2. | 78100095 | [4] | HYD CONNECTOR | LEC20-M27X2 Superseded by part number: 86579682 |
| 3. | 78100100 | [6] | HYD CONNECTOR | LEC20-M22X1,5 Superseded by part number: 66297, 86579681 |
| 5. | 70923843 | [1] | O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro | LEC1,78X18,77 Superseded by part number: 66297 |
| 7. | 14438085 | [1] | O-RING,19.3mm ID x 2.4mm | JES |
| 8. | 76073153 | [2] | HYDRAULIC HOSE | LEC |
| 9. | 76007732 | [4] | HALF-FLANGE | LEC-3/4" |
| 10. | 14420131 | [8] | HEX SOC SCREW,M10 x 1.5 x 25mm, Cl 10.9, Full Thd | LEC |
| 11. | 70924110 | [2] | O-RING | LEC3,53X24,99 Superseded by part number: 98458442 |
| 12. | 76041253 | [2] | ELBOW | LEC90°-20/27X2 |
| 13. | 70935175 | [1] | O-RING,0.116" Thk x 0.924" ID, -912, Cl 8, 90 Duro | LEC Superseded by part number: 86637739 |
| 15. | 79109722 | [2] | CLAMP | LEC |
| 16. | 10903431 | [4] | BOLT,Hex, M6 x 45mm, Cl 10.9 | BHB Superseded by part number: 84068386 |
| 4. | 14438185 | [1] | O-RING,24mm ID x 3mm | JES |
