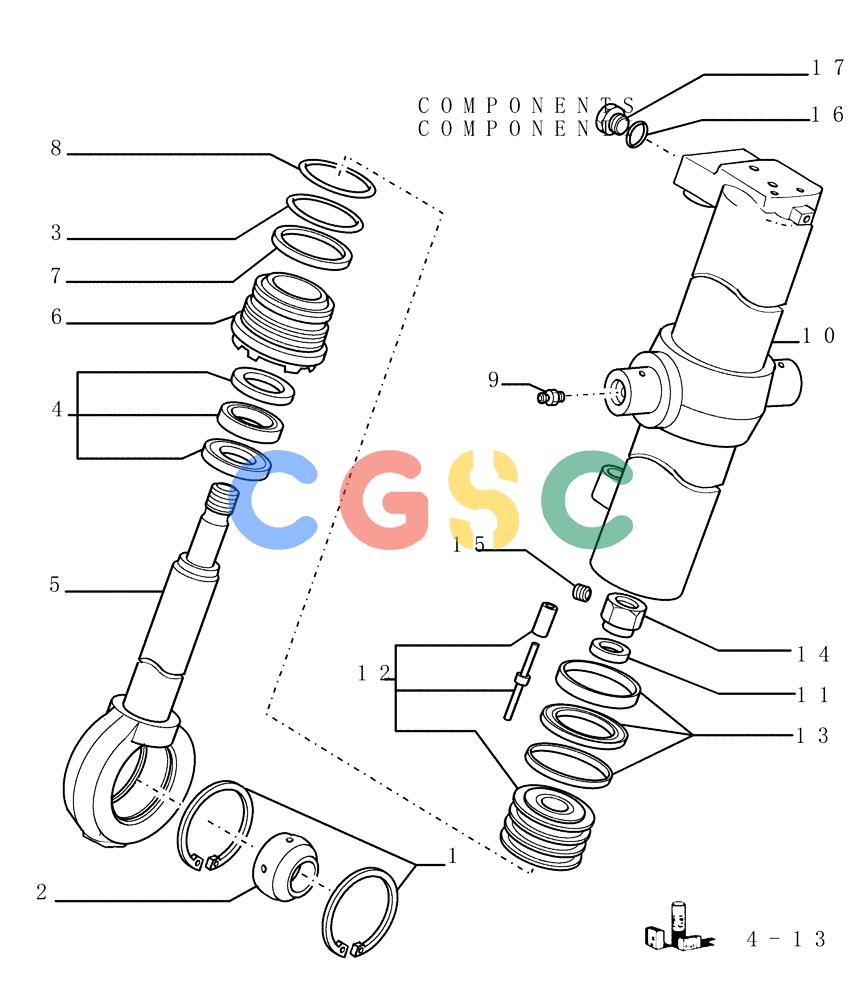

纽荷兰零件查询(DC180LT) - CRAWLER DOZER (5/00-) (3.443[02]) - LIFT CYLINDERS - FRONT IMPLEMENT New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
544 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 11062976 | [2] | SNAP RING,Int, M100 x 3 | TTF Superseded by part number: S301572 |
| 2. | 76004446 | [1] | SPHERICAL BEARING,40mm ID x 100mm OD x 58mm W | LEC- IN ALTERNATIVE |
| 2. | 76004501 | [1] | SPHERICAL BEARING,80 mm ID x 100 mm OD x 58 mm | LEC- IN ALTERNATIVE Superseded by part number: 76004446 |
| 3. | 14465880 | [1] | O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro | LEC(M94.84 ID x 3.53 Thk) Superseded by part number: 9840590 |
| 4. | 71452371 | [1] | SEAL KIT | LEC |
| 5. | 71470772 | [1] | ROD | LEC |
| 6. | 71470738 | [1] | GLAND | LEC |
| 7. | 71470742 | [1] | PLATE | LEC |
| 8. | 71470761 | [1] | O-RING,5mm Thk x 85mm ID, 90 Duro | LEC |
| 9. | 13407211 | [2] | LUBE NIPPLE,M10 x 1 | TTF Superseded by part number: 84351730 |
| 10. | 71470778 | [1] | BARREL | LEC- LEFT |
| 10. | 71470771 | [1] | BARREL | LEC- RIGHT |
| 11. | 71470740 | [1] | WASHER | LEC |
| 12. | 71470737 | [1] | PISTON ASSY | LEC |
| 13. | 71470760 | [1] | SEAL | LEC- LIFT CYLINDERS SEALS |
| 14. | 71470741 | [1] | NUT | LEC |
| 15. | 79099830 | [1] | SET SCREW,less Hex Socket, M10 x 1.5 x 10mm | LEC |
| 16. | 5135738 | [2] | O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro | TTF |
| 17. | 8298367 | [2] | PLUG | LEC |
