凯斯零件查询(RBX553) - CASE IH ROUND BALER (9/05-12/06) (14.03) - LACED CHEVRON BELT Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
794 次

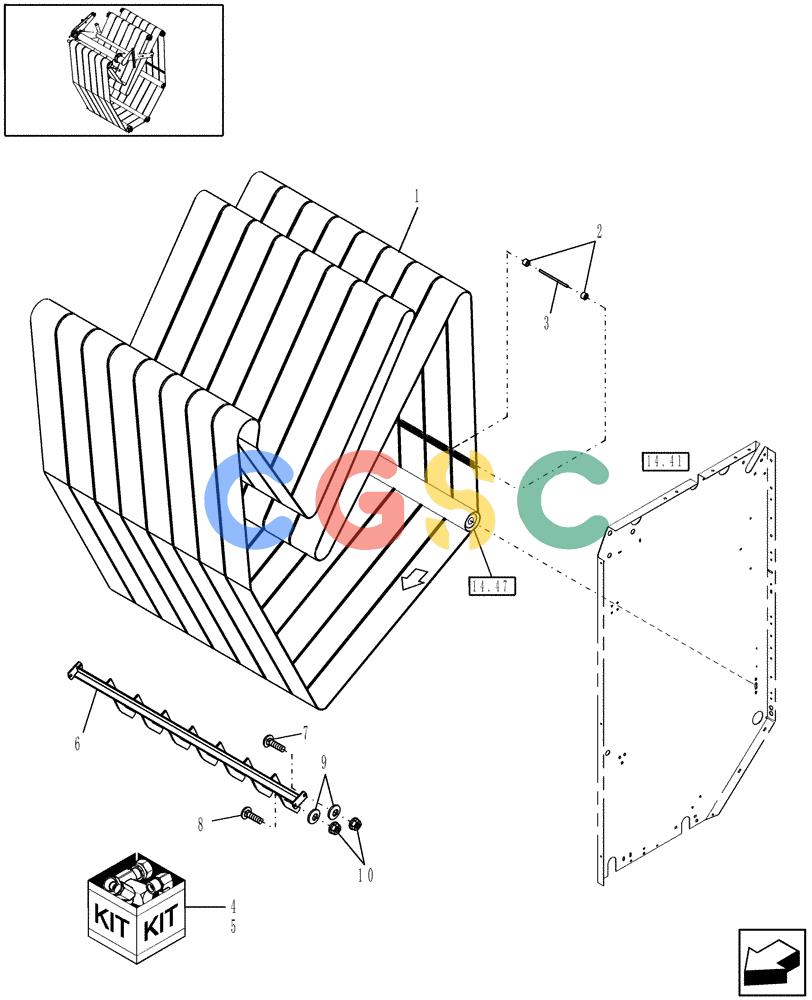

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
87056534
|
[8] |
BELT,177.80 mm W x 8712.20 mm L
|
PA
Laced Chevron
|
| 2. |
9843258
|
[16] |
TUBE
|
NH
Lacing
|
| 3. |
9843257
|
[8] |
CABLE
|
NH
Lacing
|
| 4. |
86625980
|
[1] |
DIA KIT, HARVESTER
|
NH
Lacing Cable, Standard Duty, Includes: (18) Cable Tubes, (8) Lacing Cables & Instructions Superseded by part number: 84399081
|
| 5. |
9847138
|
[1] |
REPAIR KIT
|
NH
Lacing, Includes: Box of 18 Cards, 45 Hooks per Card
|
| 6. |
86977995
|
[1] |
GUIDE
|
NH
Belt, Front, Optional Superseded by part number: 84329860, 84326050
|
| 7. |
811-10030
|
[2] |
CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 30mm, Cl 8.8
|
CAS
Superseded by part number: 86512446
|
| 8. |
811-10060
|
[2] |
CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 60mm, Cl 8.8
|
CAS
Superseded by part number: 86512447
|
| 9. |
140045
|
[4] |
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
|
NH
|
| 10. |
825-2410
|
[4] |
FLANGE NUT,M10 x 1.5, Flg, Cl 8
|
CAS
Superseded by part number: 9804278, 87778057
|
